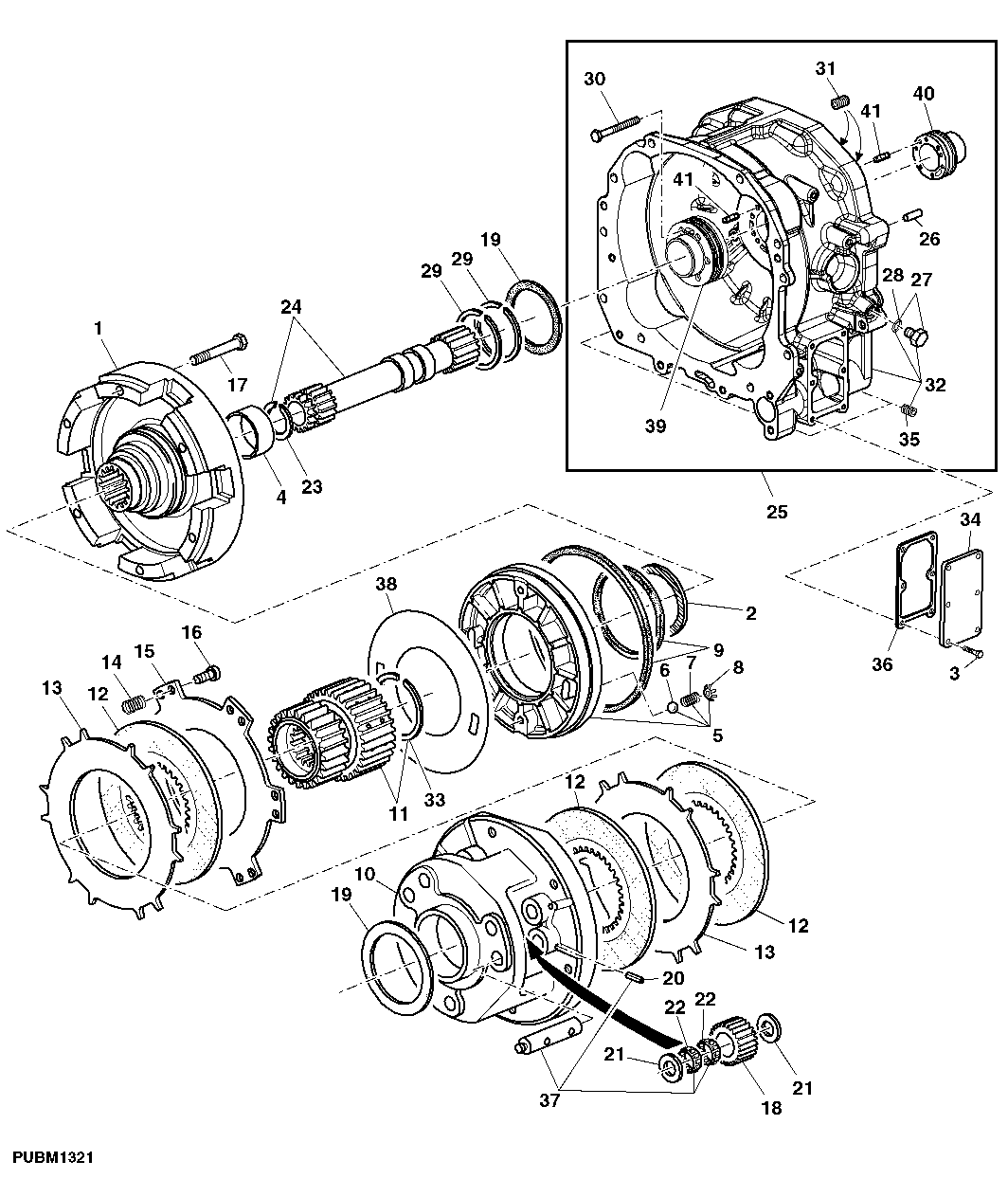

TRACTION CLUTCH/ HOUSING PLANETARY BRAKE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE243077	1	Drum	INCL KEY 4
2	R219747	1	Thrust Washer	-
3	R153675	6	Screw	M6 X 16
4	R104655	1	Bushing	-
5	RE56033	1	Piston	-
6	400R	2	Ball	-
7	R79018	2	Compression Spring	-
8	R87395	2	Spring Washer	-
9	RE47305	1	Seal Kit	-
10	R227718	1	Planet Pinion Carrier	-
11	RE219260	1	Hub	-
12	RE321692	5	Clutch Disk	-
13	R96805	4	Clutch Plate	-
14	R248052	12	Compression Spring	-
15	R96806	1	Clutch Plate	-
16	R104734	12	Pin	-
17	19M8197	6	Cap Screw	M10 X 85, (SUB FORR275242)
18	R227731	6	Planet Pinion	-
19	R87210	1	Thrust Washer	-
20	RE34603	6	Spring Pin	-
21	AR253251	12	Thrust Washer	-
22	RE56404	12	Needle Bearing	-
23	R107206	1	Snap Ring	-
24	R220028	1	Shaft	LGTH = 309 mm, INCL.KEY23
25	AL170691	1	Housing	ORDER AL226605
25	AL226605	1	Housing	INCLUDES (2) R121580, (2) AL226604, RE46684, R107768 AND 51M7041
26	L111964	2	Dowel Pin	-
27	RE46684	1	Fitting Plug	-
28	51M7041	1	O-Ring	11.300 X 2.200 mm
29	R33167	2	Ring	-
30	R247895	6	Socket Head Screw	-
31	RE261756	2	Valve Seat	USE WITH AL170691
31	AL226604	2	Valve Seat	USE WITH AL226605
32	RE317753	1	Housing	SUB FOR RE251672 ; MARKED R251670 (INCL. KEYS 27, 28, 35)
33	R113671	1	Snap Ring	-
34	R156647	1	Plate	-
35	R121580	2	Pipe Plug	-
36	R158505	1	Gasket	-
37	R227799	6	Pinion Shaft	-
38	R255603	1	Shim	TK= 0, 4MM (0.016")
38	R255604	1	Shim	TK= 0, 8MM (0.031")
39	R251675	1	Sleeve	-
40	R251678	1	Sleeve	-
41	R38295	4	Needle Roller	-

TRACTION CLUTCH/ HOUSING PLANETARY BRAKE
