Chassis Wiring Harness, Stage III Engine (1/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE592393	1	Chassis Wiring Harness	SUB FOR RE588475, RE580751
2	57M7301	1	Elec. Connector Housing	W/ Dust Cap
2	57M7308	1	Elec. Connector Accessory	-
3	57M8274	1	Elec. Connector Housing	TLS Interface 51
3	57M7300	1	Elec. Connector Accessory	-
3	57M9216	1	Elec. Connector Seal	Cavity E
4	RE207311	1	Electronic Control Unit	-
5	57M7260	1	Elec. Connector Housing	Can Terminator or Extension 32
5	57M7291	1	Electrical Connector Assy	-
5	57M7494	4	Elec. Connector Terminal	Cavity B, D, E, F
5	57M9214	4	Elec. Connector Seal	Cavity B, D, E, F
6	57M7299	1	Elec. Connector Terminal	Cavity A
6	R78059	4	Elec. Connector Seal	Cavity B, D, C, E
6	57M9217	1	Elec. Connector Seal	Cavity A
6	57M7491	4	Elec. Connector Terminal	Cavity B, D, C, E
6	57M8326	1	Electrical Connector Assy	-
6	57M9406	1	Elec. Connector Accessory	Single Point Ground SPK01
7	57M7256	1	Elec. Connector Housing	Air Brake Pressure 25
7	57M9712	1	Elec. Connector Accessory	-
7	R104919	2	Elec. Connector Terminal	Cavity A, B
7	57M9214	2	Elec. Connector Seal	Cavity A, B
8	57M7254	1	Elec. Connector Housing	Dust Cap
8	57M7289	1	Elec.Connect Locking Device	-
9	R78052	1	Electrical Connector Assy	Transmission Ground 33
10	57M7295	1	Elec.Connect Locking Device	-
10	57M7294	1	Elec. Connector Housing	Implement Ground 23
11	57M8891	1	Elec. Connector Accessory	-
12	57M9434	1	Elec. Connector Housing	To Cab Harness
13	57M8910	1	Clip	-
14	57M7257	1	Elec. Connector Housing	Radar 63
14	57M7290	1	Elec. Connector Accessory	-
14	R104919	3	Elec. Connector Terminal	Cavity A, B, C
14	57M9214	2	Elec. Connector Seal	Cavity A, C
15	57M7255	1	Elec. Connector Housing	Dust Cap
15	57M7317	1	Elec. Connector Accessory	-
16	57M8903	2	Clip	-
17	57M9412	3	Clamp	-
18	H77698	1	Tie Band	-
19	R528122	3	Elec. Connector Accessory	-
20	57M8611	1	Electrical Connector Assy	-
21	RE543731	1	Elec. Connector Accessory	ECU1 Connector 9
21	57M9808	19	Elec. Connector Terminal	Cavity 9, 12, 13, 14, 17, 18, 23, 24, 27, 30, 33, 34, 37, 41, 42, 49, 51, 53, 54
21	57M10321	10	Elec. Connector Terminal	Cavity 1, 3, 5, 6, 8, 16, 19, 25, 35, 52
22	RE538504	1	Elec. Connector Accessory	ECU2 Connector 10
22	57M9808	13	Elec. Connector Terminal	Cavity 4, 7, 9, 8, 19, 22, 23, 25, 30, 40, 48, 50, 53
22	57M10321	2	Elec. Connector Terminal	Cavity 18, 26
22	57M9806	1	Elec. Connector Terminal	Cavity 28
23	RE538505	1	Elec. Connector Accessory	ECU3 Connector 11
23	57M9808	8	Elec. Connector Terminal	Cavity 1, 2, 18, 21, 33, 34, 41, 49
23	57M10321	10	Elec. Connector Terminal	Cavity 7, 12, 13, 14, 15, 23, 24, 27, 43, 44

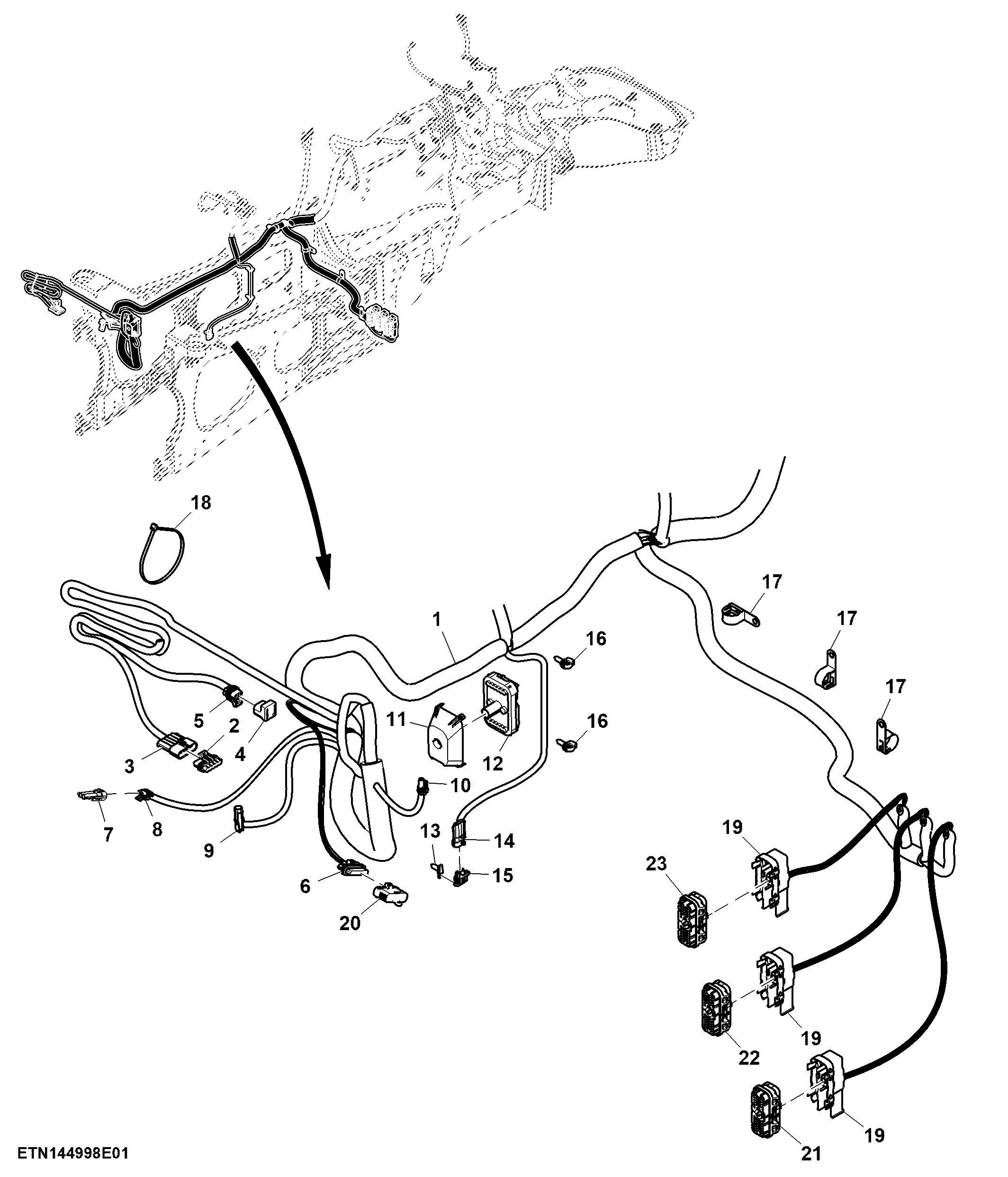

Chassis Wiring Harness, Stage III Engine (1/3)
