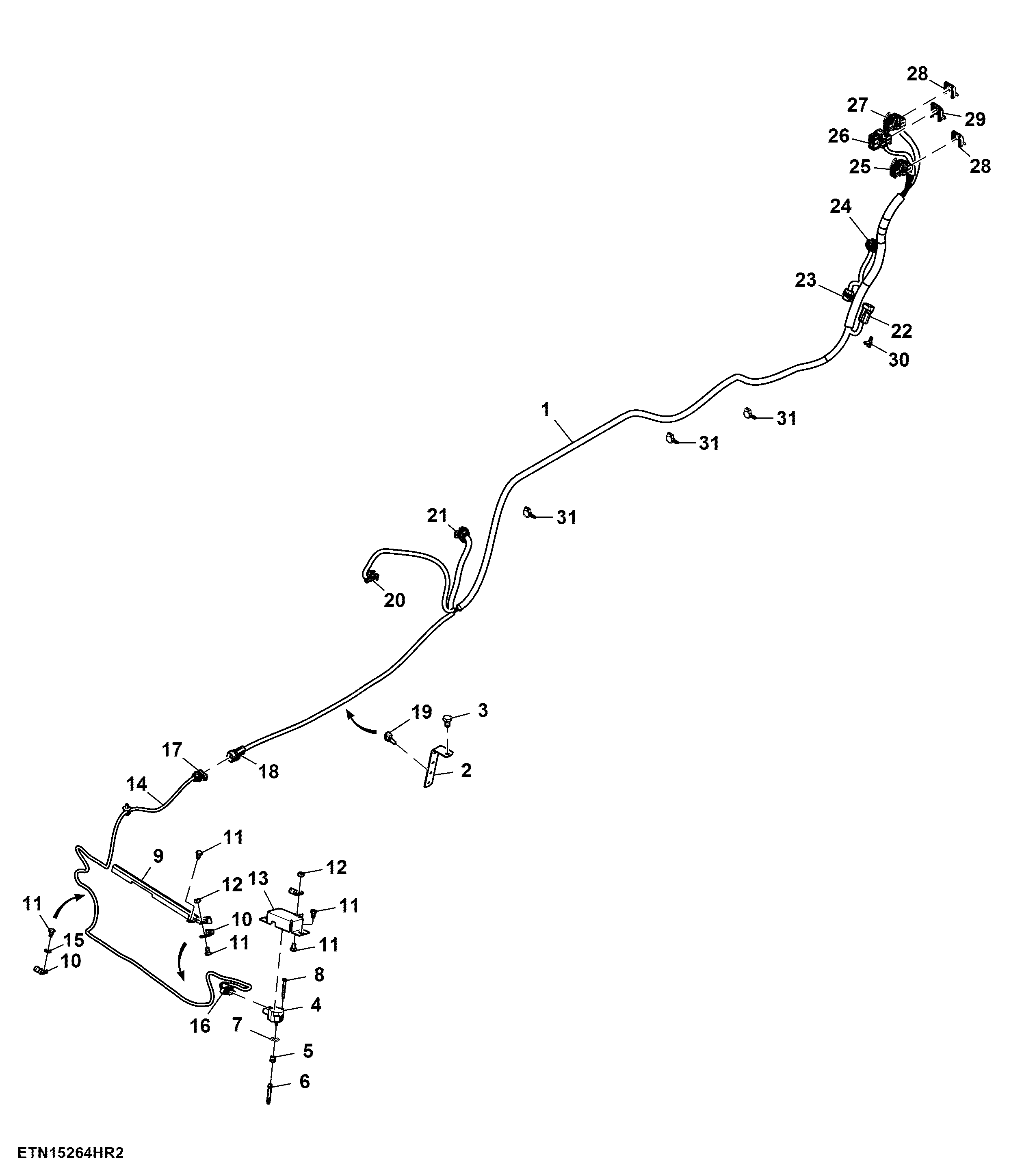

3M Front Axle Wiring Harness ( - 000856)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE271620	1	Chassis Wiring Harness	-
2	R202609	2	Angle	-
3	19M7297	2	Cap Screw	M8 X 12
4	RE575331	1	Sensor	-
5	L165796	1	Adapter	-
6	R259703	1	Shaft	-
7	51M7097	1	O-Ring	18 X 2.500 mm
8	19M9368	2	Cap Screw	M4 X 35
9	R334571	1	Shield	-
10	R255993	4	Clamp	-
11	19M7964	9	Cap Screw	M8 X 12
12	14M7273	2	Nut	M8
13	R259453	1	Shield	-
14	RE239525	1	Chassis Wiring Harness	-
15	24M7055	2	Washer	8.400 X 16 X 1.600 mm
16	57M8906	1	Elec. Connector Housing	-
17	57M7260	1	Elec. Connector Housing	-
17	57M7291	1	Electrical Connector Assy	CAN Terminator or Extension
18	57M7263	1	Elec. Connector Housing	-
18	57M7291	1	Electrical Connector Assy	Wheel Angle Sensor
19	57M8903	2	Clip	-
20	57M7469	1	Electrical Connector Assy	Steering Valve
20	57M7840	1	Elec. Connector Housing	-
21	57M7262	1	Elec. Connector Housing	-
21	57M8907	1	Elec.Connect Locking Device	Steering Column
22	57M7263	1	Elec. Connector Housing	-
22	57M7291	1	Electrical Connector Assy	Can Backbone
23	57M7260	1	Elec. Connector Housing	-
23	57M7257	1	Elec. Connector Housing	-
23	57M7290	1	Elec. Connector Accessory	SSU Cab Connection
24	57M7255	1	Elec. Connector Housing	-
24	57M7290	1	Elec. Connector Accessory	APS Harness Connection
24	57M8416	1	Elec. Connector Housing	-
25	57M8518	1	Elec. Connector Housing	SSU Controller
26	57M8526	1	Elec. Connector Housing	-
26	57M8529	1	Electrical Connector Cap	SSU Controller
27	57M8521	1	Elec. Connector Housing	SSU Controller
28	57M8528	2	Electrical Connector Cap	-
29	57M8529	1	Electrical Connector Cap	-
30	57M8910	2	Clip	-
31	57M8902	6	Clip	-
