Mechanically Operated Selective Control Valve (M-SCV)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL206036	1	Valve	300 Series SUB FOR AL206030
1	AL209365	1	Valve	450 Series
1	AL202024	1	Selective Control Valve	300 Series NLA; ORDER AL204735
2	L169977	1	Knob	-
3	AL177612	1	Knob	-
4	AL203286	1	Detent Kit	SUB FOR AL178285
4	AL214654	1	Detent Kit	USE WITH AL209365
5	AL207508	1	Seal Kit	SUB FOR AL172963
5	AL209467	1	Seal Kit	-
6	AL207507	1	Repair Kit	SUB FOR AL177613
6	AL209464	1	Repair Kit	-
7	AL203292	1	Seal Kit	SUB FOR L170240
8	AL172966	1	Flange Kit	-
9	AL172974	2	Fitting Plug	USE WITH AL206036
9	AL209466	2	Fitting Plug	USE WITH AL209365
10	AL214530	2	Spool Kit	-
11	AL207509	1	Seal Kit	SUB FOR AL172964
12	AL200946	1	Check Valve	SUB FOR AL172973
13	L170555	1	Plug	MARKED I
14	L170556	1	Plug	MARKED II
15	L170557	1	Plug	MARKED III
16	L102157	1	Plug	MARKED IV
17	AL180447	2	Check Valve	-
18	L203821	1	Compression Spring	USE WITH AL206036 AND AL202024
18	L209245	1	Compression Spring	USE WITH AL209365
19	AL200965	1	Valve Spool	USE WITH AL206036 AND AL202024
19	AL209465	1	Valve Spool	USE WITH AL209365
20	L205093	1	Clip	USE WITH AL209365
21	AL205619	1	Valve Kit	USE WITH AL209365
..	MN10720	1	Selective Control Valve	(Includes 1 M-SCV 300 Series And 2 Quick Disconnect Couplers Deluxe) (Includes Leak-Off-Oil Parts) FI

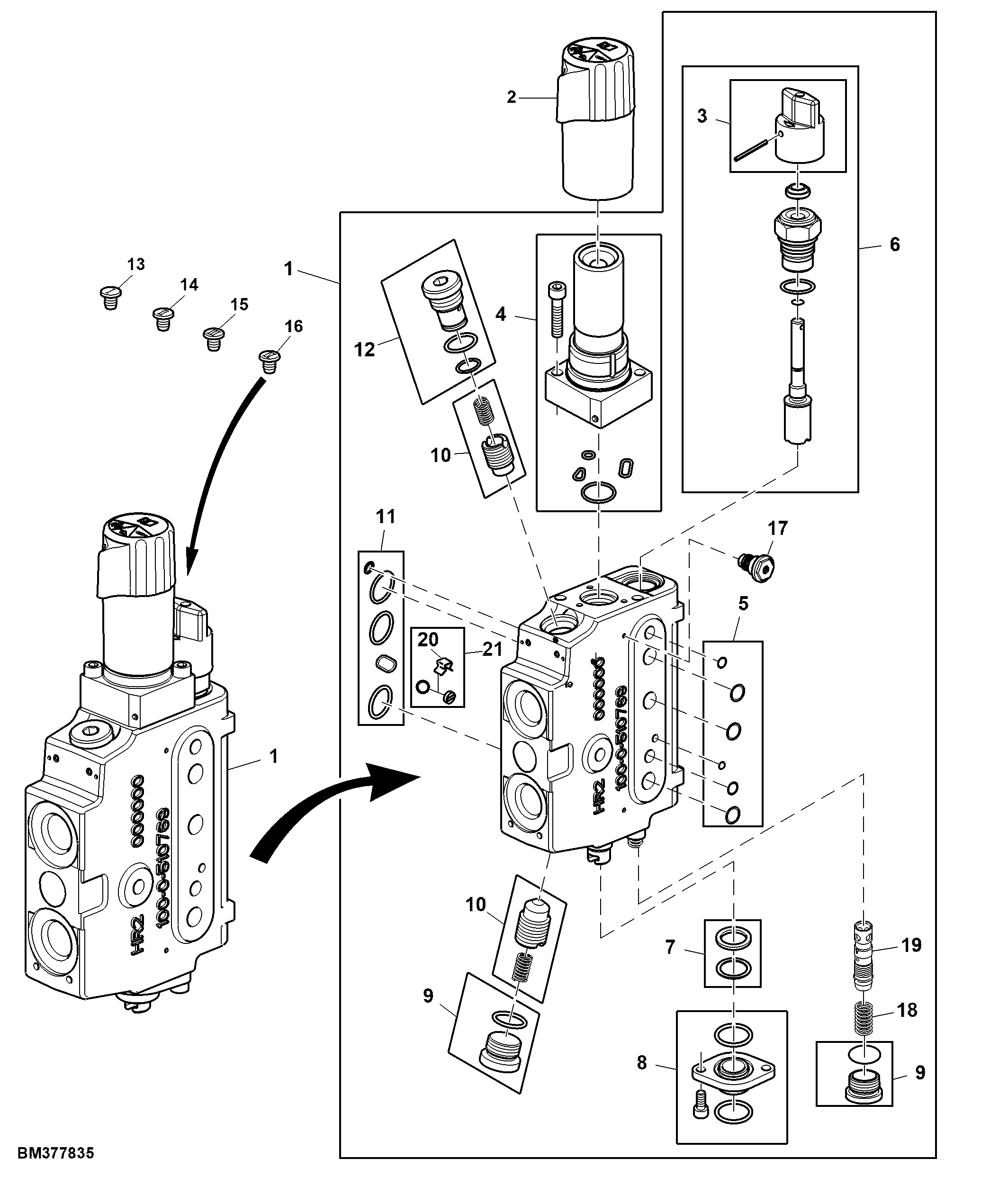

Mechanically Operated Selective Control Valve (M-SCV)

Нет текстового описания
