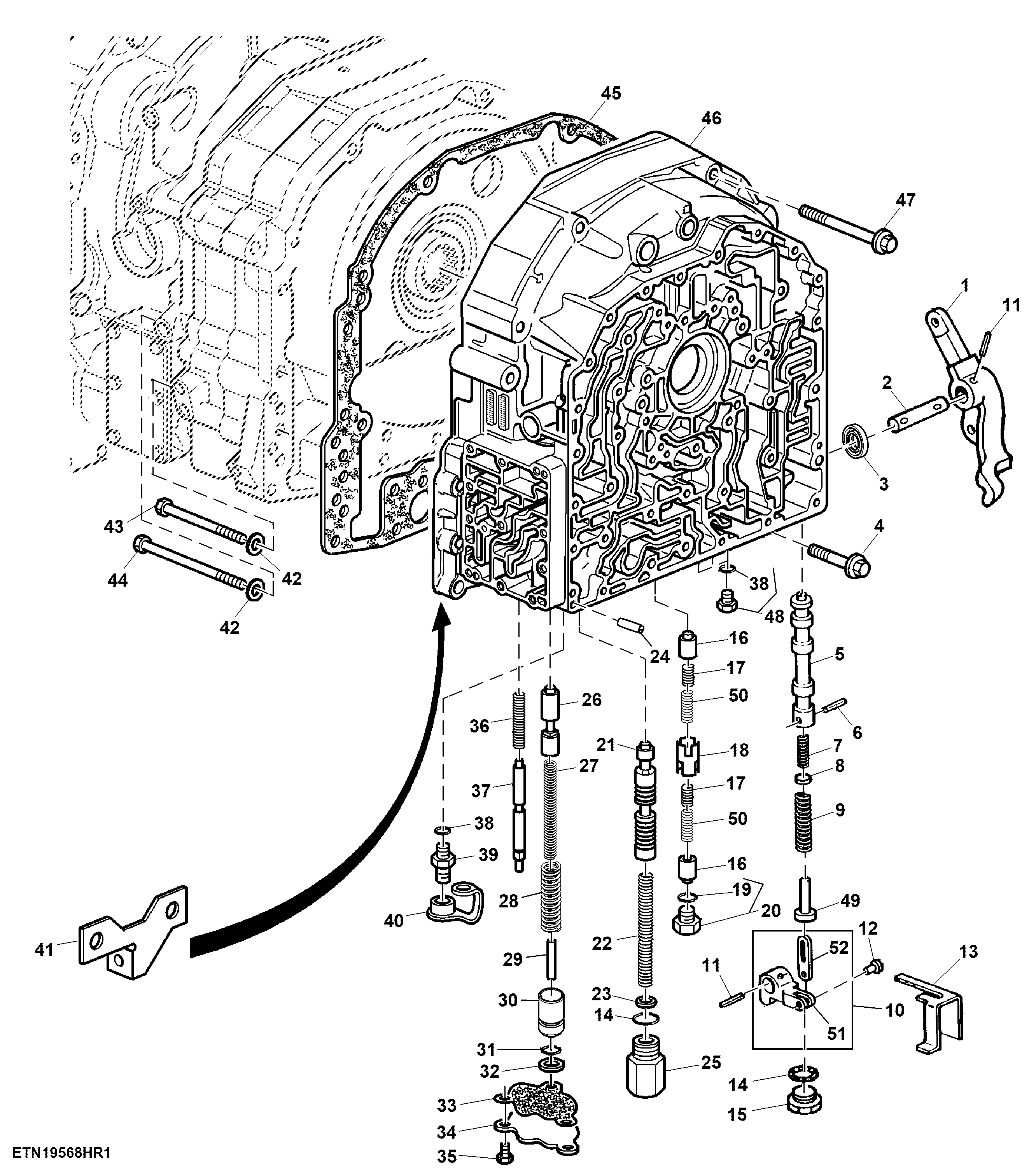

TRANSMISSION FRONT COVER ( - BMTEXX)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L154133	1	Arm	-
2	R95063	1	Pin Fastener	-
3	AR103873	1	Seal	-
4	R115141	8	Screw	-
5	R95066	1	Valve	-
6	R107252	1	Spring Pin	-
7	R104814	1	Spring	ALSO ORDER R95066, R116473 AND R104815
8	R116473	2	Disk	-
9	R104815	1	Compression Spring	ALSO ORDER R95066, R116473 AND R104814
10	RE47315	1	Arm Kit	Inner, W/ Link ORDER R109666 AND R95072
11	34M7207	2	Spring Pin	5 X 30 mm
12	R58941	1	Pin Fastener	-
13	R213853	1	Stop	-
14	51M7045	2	O-Ring	19.300 X 2.200 mm
15	L78975	1	Fitting Plug	-
16	R241994	2	Spool Valve	Clutch Cooling
17	R276022	2	Compression Spring	-
18	R273498	1	Spool Valve	Middle, Clutch Cooling
19	51M7043	1	O-Ring	15.300 X 2.200 mm
20	RE238616	1	Drain Plug	-
21	R120947	1	Valve	-
22	R95059	1	Spring	-
23	R86638	2	Shim	-
24	R38295	1	Needle Roller	-
25	RE180029	1	Fitting Plug	INCLUDES 51M7045
26	R252208	1	Spool Valve	Modulator
27	R299263	1	Compression Spring	In
28	R299262	1	Compression Spring	Out
29	R299264	1	Pin	-
30	R299265	1	Piston	-
31	P48347	1	O-Ring	-
32	R112976	1	Seal	-
33	R171413	1	Gasket	ORDER R341955
33	R341955	1	Gasket	-
34	R171412	1	Cover	-
35	19M7862	3	Screw	M6 X 20
36	R54174	1	Spring	-
37	R176198	1	Valve	-
38	51M7041	1	O-Ring	11.300 X 2.200 mm
39	RE190805	1	Diagnostic Coupling	-
40	R77175	1	Cover	-
41	L153819	1	Holder	-
42	24M7028	1	Washer	10.500 X 20 X 2 mm
43	19M7958	1	Screw	M10 X 150
44	R104714	1	Screw	M10 X 185
45	R321236	1	Gasket	-
46	R208927	1	Housing	ORDER R331119
46	R331119	1	Cover	-
47	R112063	5	Screw	-
48	RE46684	1	Fitting Plug	-
49	R121609	1	Guide	-
50	R273530	2	Compression Spring	-
51	R109666	1	Arm	-
52	R95072	1	Link	-
