Открытый узел

GPS, Receiver Harness

GPS, Receiver Harness

GPS, Receiver Harness

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

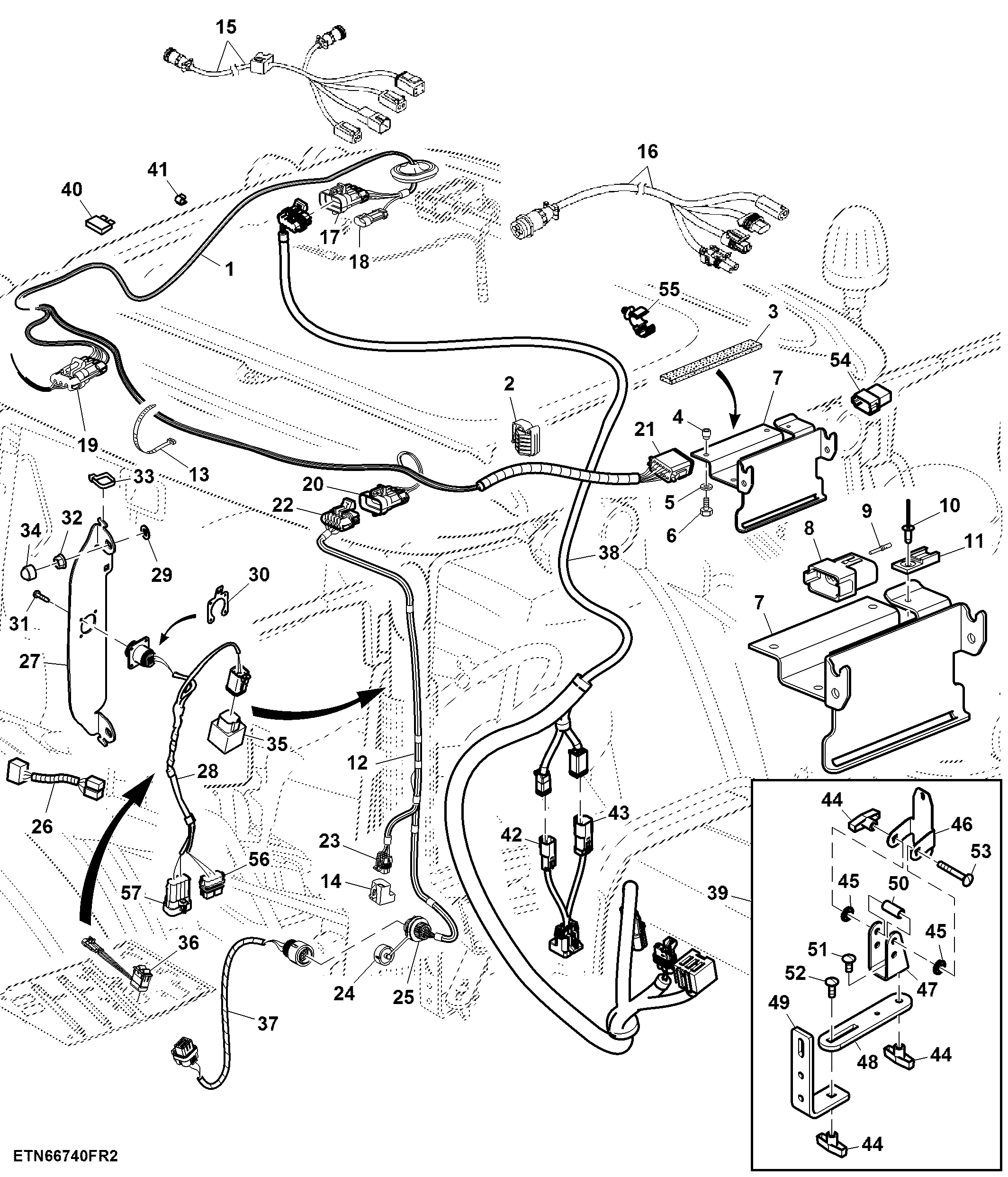

GPS, Receiver Harness

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL177795	1	Wiring Harness	-
2	L151529	1	Loom	-
3	L112290	1	Weatherstrip	-
4	L152460	1	Bushing	-
5	24M7054	1	Washer	6.400 X 12 X 1.600 mm
6	19M7560	1	Cap Screw	M6 X 16
7	AL177068	1	Bracket	-
8	57M7633	1	Electrical Connector Assy	-
9	R78069	1	Elec. Connector Cavity Plug	-
10	R54477	1	Rivet	-
11	57M8439	1	Elec. Connector Accessory	-
12	AL175708	1	Wiring Harness	-
13	R44302	1	Tie Band	-
14	RE207311	1	Electronic Control Unit	-
15	PF80845	1	Wiring Harness	-
16	PF80865	1	Wiring Harness	-
17	57M7281	1	Elec.Connect Locking Device	-
17	57M7265	1	Elec. Connector Housing	Interface Cab
18	57M7256	1	Elec. Connector Housing	Interface Cab
18	57M7289	1	Elec.Connect Locking Device	-
19	57M7264	1	Elec. Connector Housing	ISO Socket
19	57M7283	1	Elec.Connect Locking Device	-
20	57M7265	1	Elec. Connector Housing	Interface GSD4
20	57M7281	1	Elec.Connect Locking Device	-
21	57M7634	1	Electrical Connector Assy	GPS Reciever
21	57M7634	1	Electrical Connector Assy	-
22	57M7262	1	Elec. Connector Housing	Interface GS Roof
22	57M7281	1	Elec.Connect Locking Device	-
23	57M7260	1	Elec. Connector Housing	-
23	57M7291	1	Electrical Connector Assy	Interface 60A Front
24	57M9232	1	Elec. Connector Seal	-
25	57M9231	1	Elec. Connector Housing	Interface GSD4
26	PF80831	1	Wiring Harness	-
27	L210021	1	Bracket	W/ AutoTrac™ Integrated
28	AL174559	1	Wiring Harness	W/ AutoTrac™ Integrated
29	24M7055	2	Washer	8.400 X 16 X 1.600 mm, W/ AutoTrac™ Integrated
30	L171800	1	Strap	W/ AutoTrac™ Integrated
31	37M7095	4	Screw	W/ AutoTrac™ Integrated
32	14M7298	2	Flange Nut	M8, W/ AutoTrac™ Integrated
33	R44302	2	Tie Band	W/ AutoTrac™ Integrated
34	L32394	2	Cap	W/ AutoTrac™ Integrated
35	RE339329	1	Relay	W/ AutoTrac™ Integrated SUB FOR AL174926
36	AL161135	1	Toggle/Rocker Switch	W/ AutoTrac™ Integrated
37	AL175883	1	Wiring Harness	W/ AutoTrac™ Integrated
38	AL210785	1	Wiring Harness	-
39	RE255894	1	Bracket	-
40	57M7121	2	Fuse	-
41	L101519	2	Clip	-
42	57M7533	1	Elec. Connector Housing	-
43	57M7628	1	Electrical Connector Assy	-
44	N209668	3	Knob	-
45	N209692	2	Lock Washer	-
46	R237730	1	Bracket	-
47	R244202	1	Bracket	-
48	R255897	1	Bracket	-
49	R255898	1	Angle	-
50	T143534	1	Spacer	-
51	03M7191	1	Bolt	M10 X 25
52	03M7192	1	Bolt	M10 X 30
53	03M7233	1	Bolt	M10 X 70
54	AL225413	1	Elec. Connector Housing	-
55	L208997	2	Clamp	-
56	57M7261	1	Elec. Connector Housing	-
57	57M7630	1	Electrical Connector Assy	-
