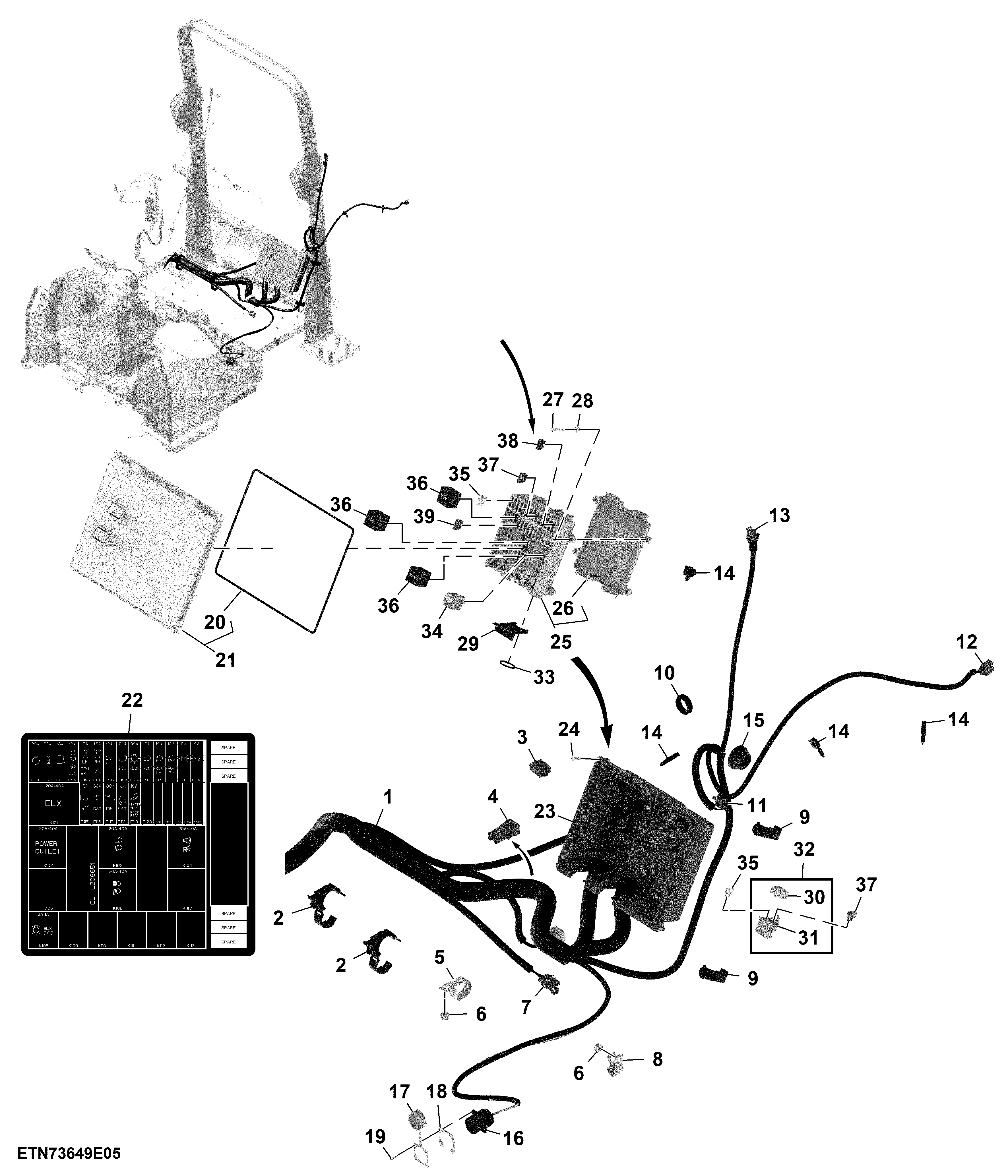

Wiring Harness, Operators Platform W/O Cab (5/5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL212990	1	Wiring Harness	Main Cab
2	L113094	2	Clamp	-
3	57M7262	1	Elec. Connector Housing	Interface Transmission Rear X287F
3	57M7281	1	Elec.Connect Locking Device	-
3	R104846	6	Elec. Connector Terminal	Cavity A - D, F, K
3	57M7493	4	Elec. Connector Seal	Cavity A, B, K
3	57M9214	2	Elec. Connector Seal	Cavity C, D
3	57M7259	1	Elec. Connector Seal	-
4	57M7252	5	Elec. Connector Terminal	Cavity A - D, F
4	57M7259	1	Elec. Connector Seal	-
4	57M7576	1	Elec. Connector Terminal	Cavity G
4	57M7493	5	Elec. Connector Seal	Cavity A - D, F
4	57M7583	1	Elec. Connector Terminal	Cavity G
4	57M7699	1	Elec. Connector Terminal	-
4	57M7697	1	Electrical Connector Assy	Interface 7Pin Socket Rear X234M
5	AH77714	1	Clip	-
6	14M7416	2	Flange Nut	M8
7	57M7280	1	Elec. Connector Housing	Outlet Socket RCF X239F
7	57M9217	1	Elec. Connector Seal	Cavity C
7	57M9216	2	Elec. Connector Seal	Cavity A, B
7	57M7299	1	Elec. Connector Terminal	Cavity C
7	57M7298	2	Elec. Connector Terminal	Cavity A, B
7	57M7274	1	Elec. Connector Accessory	-
8	AH78125	1	Clip	-
9	L115159	1	Clamp	-
10	L39888	1	Grommet	-
11	57M7255	1	Elec. Connector Housing	LH, Front Signal Turn Light X109F
11	57M7290	1	Elec. Connector Accessory	-
11	R104846	3	Elec. Connector Terminal	Cavity A - C
11	57M7493	3	Elec. Connector Seal	Cavity A - C
11	57M7259	1	Elec. Connector Seal	-
12	57M7259	1	Elec. Connector Seal	-
12	57M7493	3	Elec. Connector Seal	Cavity B - D
12	57M9214	1	Elec. Connector Seal	Cavity A
12	57M7347	1	Elec. Connector Accessory	-
12	R104846	4	Elec. Connector Terminal	Cavity A - D
12	57M7349	1	Elec. Connector Accessory	LH, Tail Light X107F
13	57M7254	1	Elec. Connector Housing	LH, Work Light Rear Fender X112-1F
13	57M9523	1	Elec.Connect Locking Device	-
13	R104846	2	Elec. Connector Terminal	Cavity A, B
13	57M7493	2	Elec. Connector Seal	Cavity A, B
13	57M7259	1	Elec. Connector Seal	-
14	H141394	4	Clip	-
15	CQ26267	1	Grommet	-
16	57M7919	1	Elec. Connector Housing	Diagnos Can Connector X571
16	R78069	1	Elec. Connector Cavity Plug	-
16	57M8164	4	Elec. Connector Terminal	Cavity A - D
17	L156796	1	Plug	-
18	L155075	1	Plate	-
19	37M7095	4	Screw	-
20	L114030	1	Weatherstrip	-
21	AL181849	1	Cover	Upper
22	L206651	1	Label	-
23	L114522	1	Fuse Box	-
24	37M7179	12	Screw	-
25	L102203	1	Fuse Box	-
26	L102204	1	Cover	Lower
27	37M7293	4	Screw	-
28	24M7146	4	Washer	4.300 X 12 X 1 mm
29	L114524	2	Insert	-
30	L63386	1	Cover	-
31	AL67532	1	Fuse Box	-
32	AL117951	1	Fuse Box	-
33	L53924	2	O-Ring	-
34	AL207376	1	Relay	-
35	57M7120	3	Fuse	20 A
36	AL77324	3	Relay	40 A
37	57M7146	4	Fuse	30 A
38	57M7121	9	Fuse	10 A
39	99M7065	4	Fuse	15 A

Wiring Harness, Operators Platform W/O Cab (5/5)
