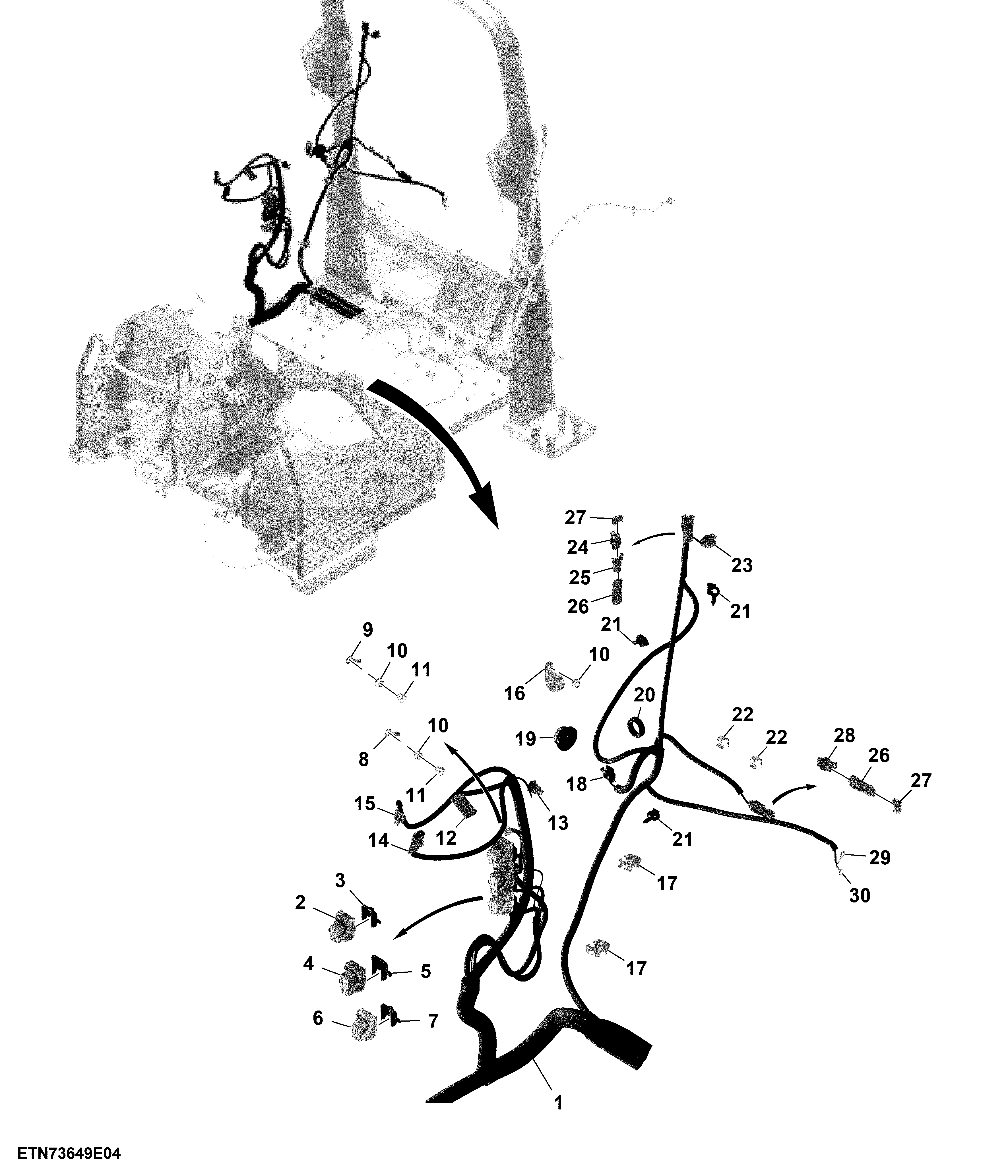

Wiring Harness, Operators Platform W/O Cab (4/5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL212990	1	Wiring Harness	Main Cab
2	57M10609	1	Elec. Connector Housing	BCU Black X963F-1
2	57M10604	1	Elec. Connector Housing	-
2	57M8533	1	Elec. Connector Seal	-
3	57M8528	1	Electrical Connector Cap	-
4	57M10615	1	Elec. Connector Housing	BCU Brown X963F-2
4	57M10613	1	Elec. Connector Housing	-
4	57M8533	1	Elec. Connector Seal	-
5	57M8529	1	Electrical Connector Cap	-
6	57M10607	1	Elec. Connector Housing	BCU Grey X963F-3
6	57M8528	1	Electrical Connector Cap	-
6	57M8476	1	Receptacle	-
7	57M8528	1	Electrical Connector Cap	-
8	57M7207	1	Elec. Connector Terminal	XGND1
9	57M7207	1	Elec. Connector Terminal	XGND5
10	14M7416	3	Flange Nut	M8
11	L32394	2	Cap	-
12	57M7257	1	Elec. Connector Housing	Rear PTO Switch X125M
12	57M7317	1	Elec. Connector Accessory	-
12	57M7252	3	Elec. Connector Terminal	Cavity A - C
12	57M7493	1	Elec. Connector Seal	Cavity A
12	57M9214	2	Elec. Connector Seal	Cavity B, C
12	57M7259	1	Elec. Connector Seal	-
13	57M7254	1	Elec. Connector Housing	Loader X37F
13	57M7289	1	Elec.Connect Locking Device	-
13	R104846	2	Elec. Connector Terminal	Cavity A, B
13	57M7493	2	Elec. Connector Seal	Cavity A, B
13	57M7259	1	Elec. Connector Seal	-
14	57M7259	1	Elec. Connector Seal	-
14	57M7493	1	Elec. Connector Seal	Cavity C
14	57M9214	1	Elec. Connector Seal	Cavity A
14	57M7317	1	Elec. Connector Accessory	-
14	57M7252	2	Elec. Connector Terminal	Cavity A, C
14	57M7257	1	Elec. Connector Housing	MFWD Switch X245M
15	57M7328	1	Elec. Connector Housing	Reverse Speed Switch X178-1FB
15	57M7289	1	Elec.Connect Locking Device	-
15	R104846	2	Elec. Connector Terminal	Cavity A, B
15	57M7493	2	Elec. Connector Seal	Cavity A, B
15	57M7259	1	Elec. Connector Seal	-
16	AL169907	1	Clamp	-
17	L115159	2	Clamp	-
18	57M7255	1	Elec. Connector Housing	RH, FRONT SIGNAL TURN LIGHT X108F
18	57M7290	1	Elec. Connector Accessory	-
18	R104846	3	Elec. Connector Terminal	Cavity A - C
18	57M7493	3	Elec. Connector Seal	Cavity A - C
18	57M7259	1	Elec. Connector Seal	-
19	CQ26267	1	Grommet	-
20	L39888	1	Grommet	-
21	H141394	3	Clip	-
22	L101519	2	Clip	-
23	57M7349	1	Elec. Connector Accessory	-
24	57M7254	1	Elec. Connector Housing	RH, WORK LIGHT REAR FENDER X112-2F
24	R104846	2	Elec. Connector Terminal	Cavity A, B
24	57M7493	2	Elec. Connector Seal	Cavity A, B
24	57M7259	1	Elec. Connector Seal	-
25	57M8218	1	Elec. Connector Accessory	-
26	57M7256	2	Elec. Connector Housing	-
27	57M7289	2	Elec.Connect Locking Device	-
28	57M7254	1	Elec. Connector Housing	License Light X113F
28	57M7289	1	Elec.Connect Locking Device	-
28	R104846	2	Elec. Connector Terminal	Cavity A, B
28	57M7493	2	Elec. Connector Seal	Cavity A, B
28	57M7259	1	Elec. Connector Seal	-
29	57M7565	1	Elec. Connector Terminal	X185F-1
30	57M7565	1	Elec. Connector Terminal	X185F-2
