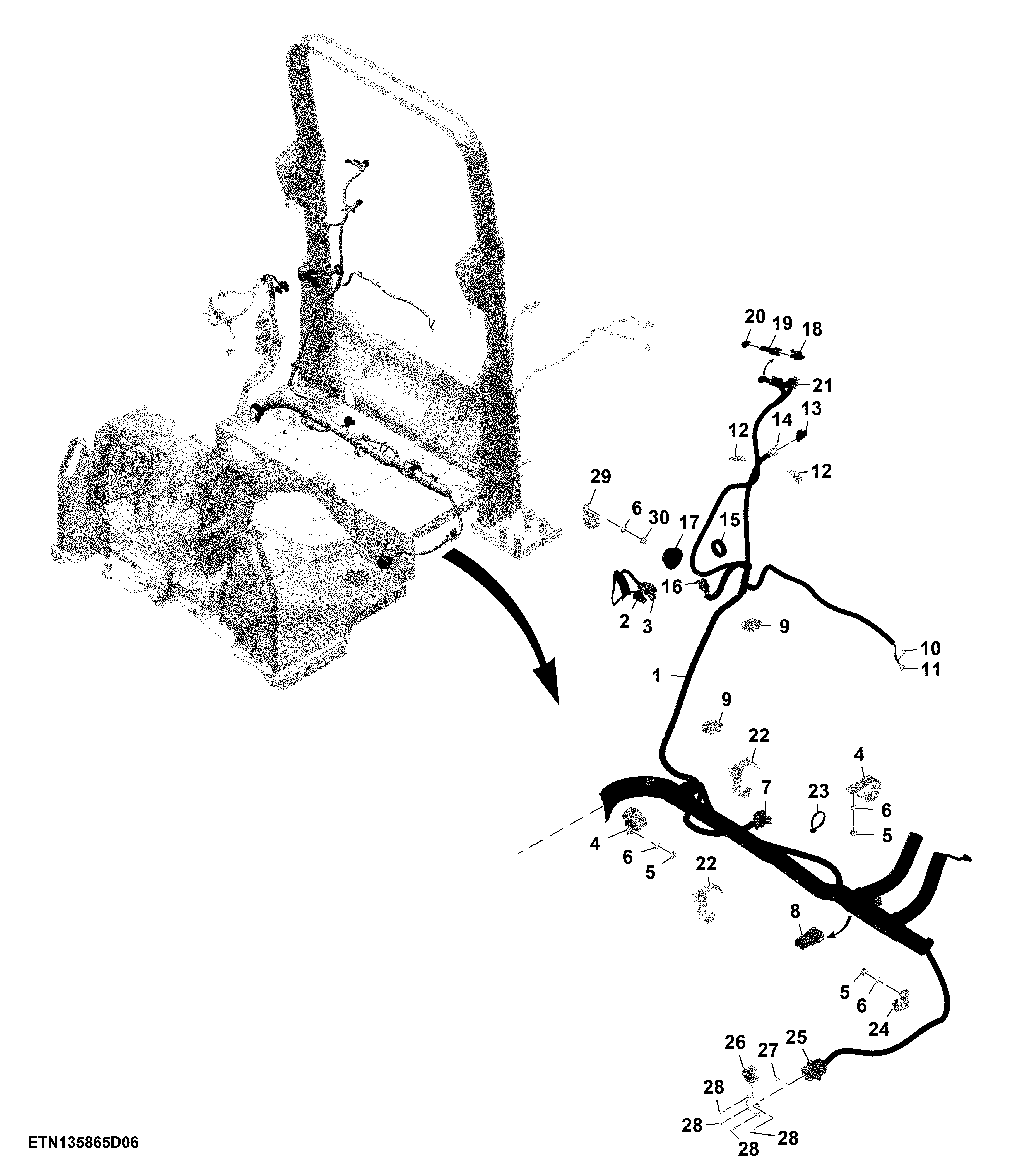

Platform Wiring Harness, OOS (6/7)

Platform Wiring Harness, OOS (6/7)

Platform Wiring Harness, OOS (6/7)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Platform Wiring Harness, OOS (6/7)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL221369	1	Wiring Harness	Main Cab
2	57M7254	1	Elec. Connector Housing	Inline Loader / Back Up Alarm X037F
2	57M9215	2	Elec. Connector Seal	Cavity A, B
2	57M7289	1	Elec.Connect Locking Device	-
2	57M10770	2	Elec. Connector Terminal	Cavity A, B
3	57M7280	1	Elec. Connector Housing	Inline Power Strip X239F
3	57M7274	1	Elec. Connector Accessory	-
3	57M7491	2	Elec. Connector Terminal	Cavity A, B
3	57M7299	1	Elec. Connector Terminal	Cavity C
3	57M9218	2	Elec. Connector Seal	Cavity A, B
3	57M9217	1	Elec. Connector Seal	Cavity C
4	N205415	2	Clamp	-
5	14M7273	3	Nut	M8
6	24M7055	3	Washer	8.400 X 16 X 1.600 mm
7	57M9215	4	Elec. Connector Seal	Cavity A, B, F, K
7	57M7259	3	Elec. Connector Seal	Cavity G - K
7	57M9214	3	Elec. Connector Seal	Cavity C - E
7	57M7494	3	Elec. Connector Terminal	Cavity C - E
7	57M10770	4	Elec. Connector Terminal	Cavity A, B, F, K
7	57M7281	1	Elec.Connect Locking Device	-
7	57M7262	1	Elec. Connector Housing	Inline Transmission Rear X287F
8	57M7697	1	Electrical Connector Assy	Inline 7Pin Trailer Socket X234M
8	57M7699	1	Elec. Connector Terminal	-
8	57M7252	5	Elec. Connector Terminal	Cavity A - D, F
8	57M7583	2	Elec. Connector Terminal	Cavity E, G
8	57M9215	5	Elec. Connector Seal	Cavity A - D, F
8	57M7576	2	Elec. Connector Terminal	Cavity E, G
9	L115159	2	Clamp	-
10	57M7565	1	Elec. Connector Terminal	Backup Alarm X185F-1
11	57M7565	1	Elec. Connector Terminal	Backup Alarm X185F-2
12	H141394	2	Clip	-
13	57M9215	2	Elec. Connector Seal	Cavity A, B
13	57M8218	1	Elec. Connector Accessory	-
13	57M7254	1	Elec. Connector Housing	RH, WORK LIGHT REAR FENDER X112F-2
13	57M10770	2	Elec. Connector Terminal	Cavity A, B
14	57M8218	1	Elec. Connector Accessory	X112F-2 BS
15	L39888	1	Grommet	-
16	57M7255	1	Elec. Connector Housing	RH, FRONT SIGNAL TURN LIGHT X108F
16	57M7290	1	Elec. Connector Accessory	-
16	57M10770	3	Elec. Connector Terminal	Cavity A - C
16	57M9215	3	Elec. Connector Seal	Cavity A - C
17	CQ26267	1	Grommet	-
18	57M7254	1	Elec. Connector Housing	Back Up Light X185F
18	57M9215	2	Elec. Connector Seal	Cavity A, B
18	57M10770	2	Elec. Connector Terminal	Cavity A, B
18	57M7289	1	Elec.Connect Locking Device	-
19	57M7256	1	Elec. Connector Housing	-
20	57M7289	1	Elec.Connect Locking Device	-
21	57M7349	1	Elec. Connector Accessory	RH, Rear Signal Turn Light X106F
21	57M9215	3	Elec. Connector Seal	Cavity B - D
21	57M9214	1	Elec. Connector Seal	Cavity A
21	57M10770	3	Elec. Connector Terminal	Cavity B - D
21	57M7347	1	Elec. Connector Accessory	-
22	L113094	2	Clamp	-
23	R44302	1	Tie Band	-
24	T70659	1	Clamp	-
25	57M7919	1	Elec. Connector Housing	Diag Can Connector X571F
25	57M8164	4	Elec. Connector Terminal	Cavity A - D
25	R78069	4	Elec. Connector Cavity Plug	Cavity E - J
26	L156796	1	Plug	-
27	L155075	1	Plate	-
28	37M7095	4	Screw	-
29	AL169907	1	Clamp	-
30	14M7273	1	Nut	M8
