20 Engine 3029HPY92-DZ110401

Нет текстового описания

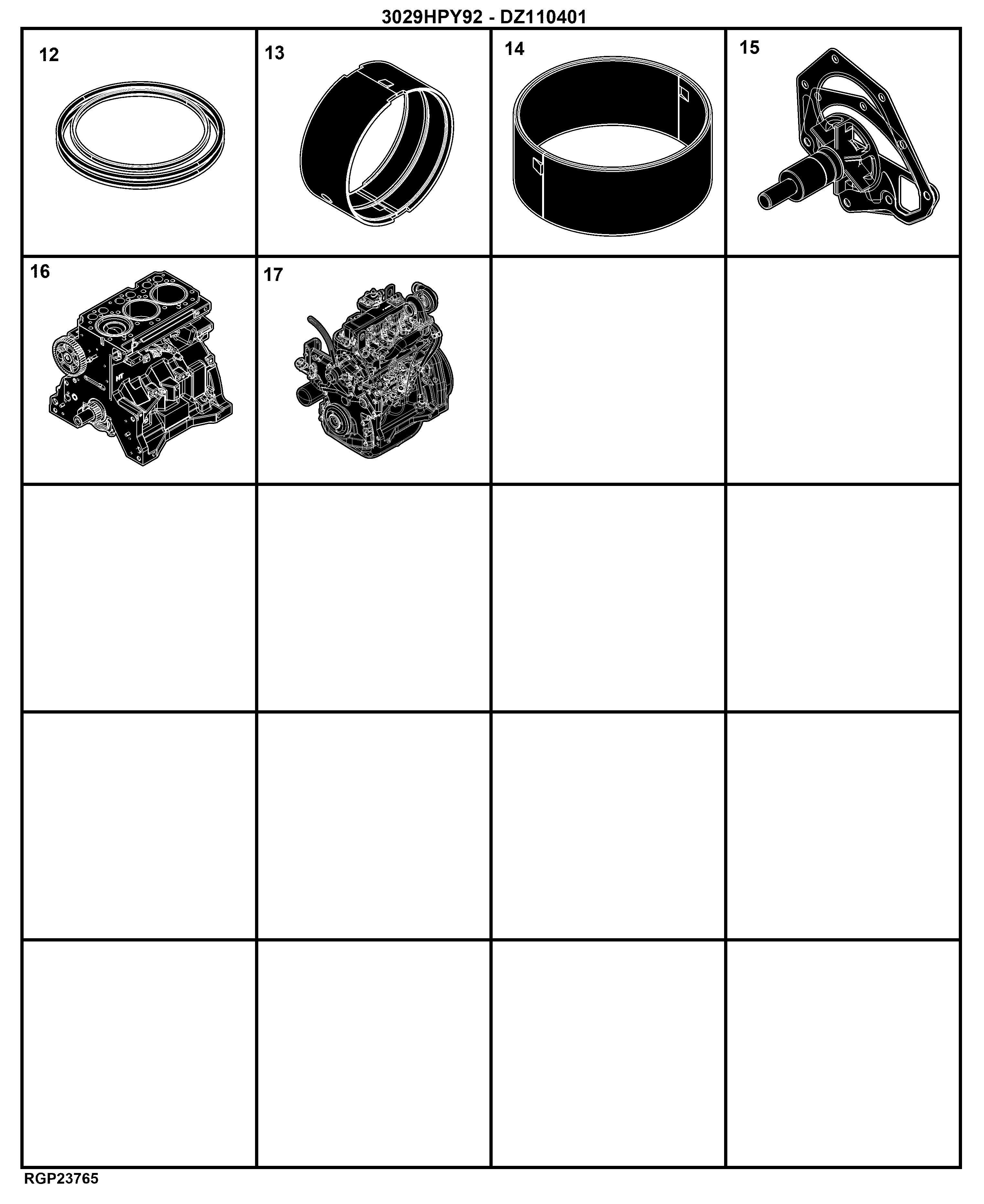

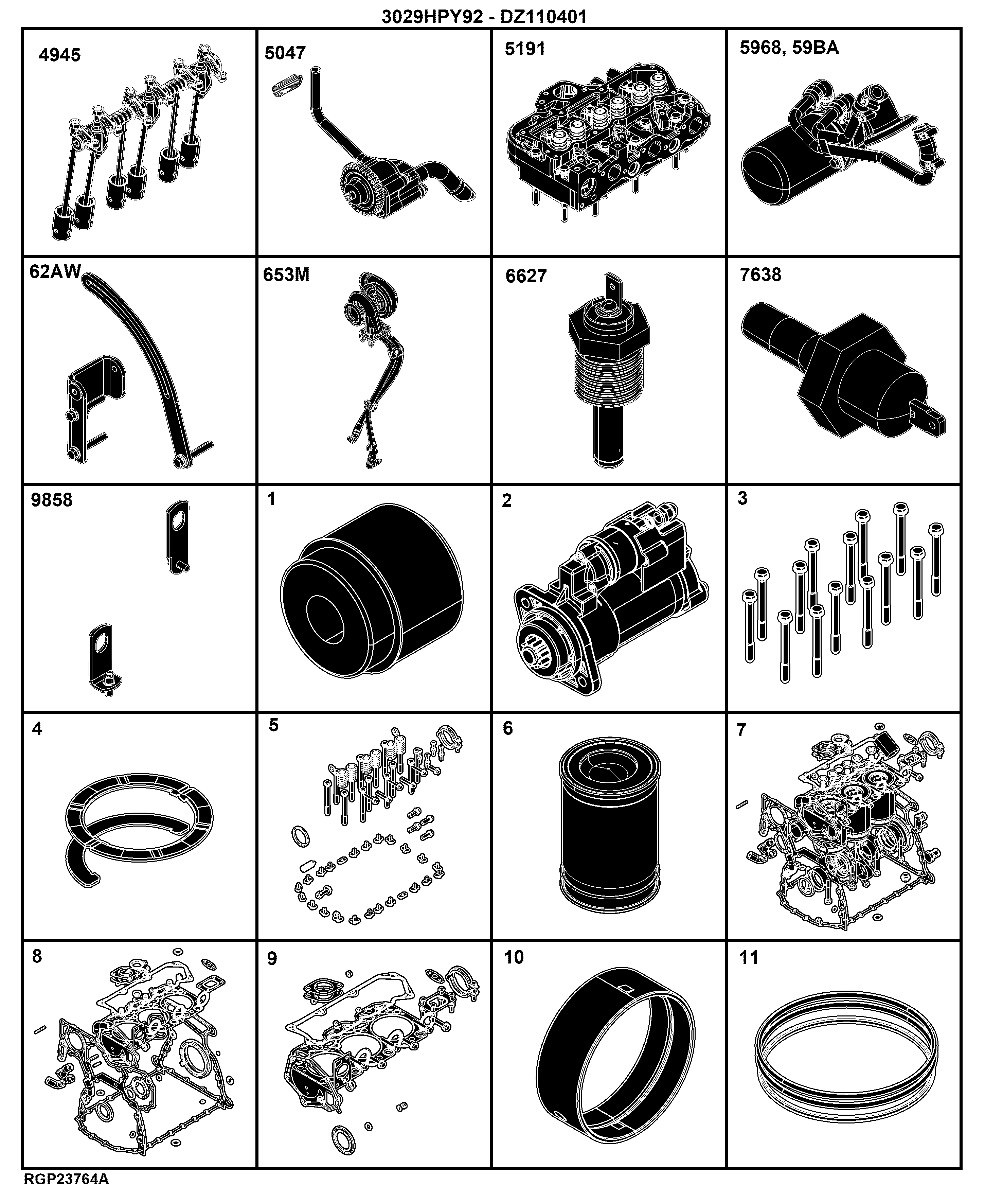

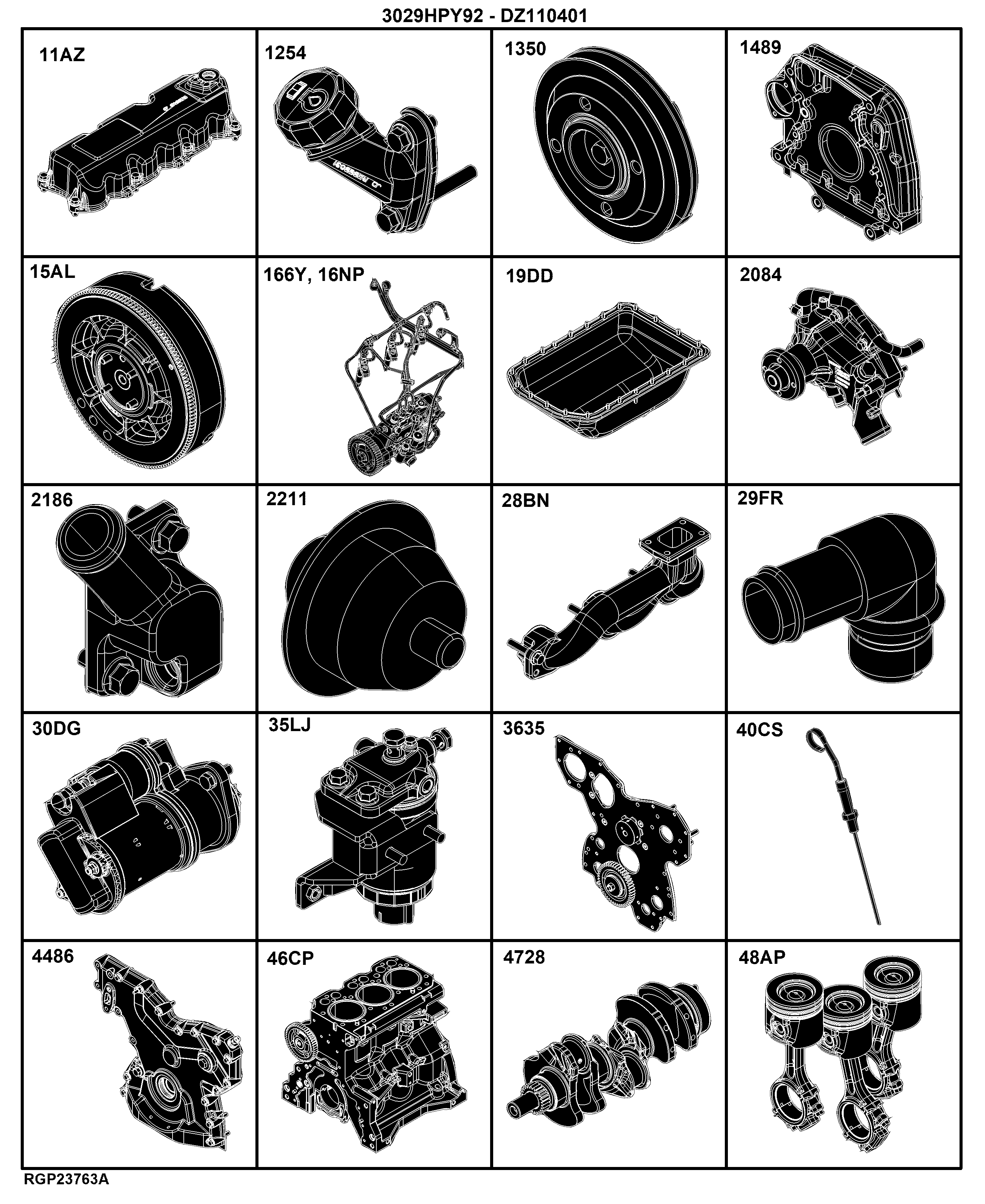

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9901 Engine Overhaul Kit (2/3)	-
-	-	1	62AW Alternator Mountings (000026 - )	-
-	-	1	62CC Alternator Mountings ( - 000025)	-
-	-	1	653M Turbocharger	-
-	-	1	6627 Temperature Switch	-
-	-	1	7638 Oil Pressure Switch	-
-	-	1	9858 Lift Straps	-
-	-	1	9901 Bearing Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	9901 Cylinder Head Bolt Kit	-
-	-	1	9901 Cylinder Head Removal Gasket Kit	-
-	-	1	9901 Engine Hardware Kit	-
-	-	1	9901 Engine Overhaul Kit (1/3)	-
-	-	1	59BA Engine Oil Cooler and Oil Filter (004294 - )	-
-	-	1	9901 Engine Overhaul Kit (3/3)	-
-	-	1	9901 Gasket Kit (1/2)	-
-	-	1	9901 Gasket Kit (2/2)	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Seat Kit	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	9901 Thrust Washer	-
-	-	1	9901 Water Pump Repair Kit	-
-	-	1	30DG Starter Motor	-
-	-	1	1254 Oil Filler Neck	-
-	-	1	1350 Crankshaft Pulley and Damper	-
-	-	1	1489 Flywheel Housing	-
-	-	1	15AL Flywheel	-
-	-	1	166Y Fuel Injection System ( - 004596)	-
-	-	1	16NP Fuel Injection System (004597 - )	-
-	-	1	19DD Oil Pan	-
-	-	1	2084 Water Pump	-
-	-	1	2186 Thermostat Cover	-
-	-	1	2211 Thermostat	-
-	-	1	28BN Exhaust Manifold	-
-	-	1	29FR Ventilating System	-
-	-	1	11AZ Valve Cover	-
-	-	1	35D7 Fuel Filter (004610 - )	-
-	-	1	35LJ Fuel Filter ( - 004609)	-
-	-	1	3635 Front Plate	-
-	-	1	40CS Engine Oil Dipstick	-
-	-	1	4486 Timing Gear Cover	-
-	-	1	46CP Cylinder Block	-
-	-	1	4728 Crankshaft and Bearings	-
-	-	1	48AP Connecting Rods and Pistons	-
-	-	1	4945 Valve Actuating Mechanism	-
-	-	1	5047 Engine Oil Pump	-
-	-	1	5191 Cylinder Head With Valves	-
-	-	1	5968 Engine Oil Cooler and Oil Filter ( - 004293)	-
