Console Wiring Harness Connectors (1/2), PowrReverser™, Cab

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ32934	1	Wiring Harness	-
2	19M7598	5	Cap Screw	M4 X 10
3	24M7117	5	Washer	4.300 X 9 X 0.800 mm
4	57M10497	1	Elec. Connector Housing	Starter Relay XK2_1
5	57M10717	1	Elec. Connector Housing	Console to Cab Interconnect XXC_1
5	57M9539	10	Elec. Connector Terminal	Cavity A, B, F, G, H, L, M, N, P, R
5	57M8301	2	Elec. Connector Terminal	Cavity J, K
5	57M9223	12	Elec. Connector Seal	Cavity A, B, F, G, H, J, K, L, M, N, P, R
5	57M8321	4	Elec. Connector Terminal	Cavity C, D, E, S
5	57M9919	1	Elec. Connector Accessory	-
6	57M10993	1	Elec. Connector Housing	Diode Module Light System XV03
6	57M12740	5	Elec. Connector Terminal	Cavity A, B, C, D, E
6	RE262484	1	Diode	-
7	57M11134	1	Elec. Connector Housing	CAN Terminator
8	57M11168	2	Elec. Connector Accessory	-
9	57M11175	1	Elec. Connector Housing	Front Wiper Motor XM05
9	57M7162	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
10	57M7089	1	Elec. Connector Terminal	Cavity A
10	57M7106	2	Elec. Connector Terminal	Cavity A
10	57M7170	3	Elec. Connector Housing	High/Low Beam Switch XS24
11	57M7170	3	Elec. Connector Housing	Turn Signal Switch XS03
11	57M7106	1	Elec. Connector Terminal	Cavity A
11	57M7089	2	Elec. Connector Terminal	Cavity A
12	57M7170	2	Elec. Connector Housing	Horn Switch XS05
12	57M7089	2	Elec. Connector Terminal	Cavity A
13	57M7170	1	Elec. Connector Housing	Key Switch XS1_2
13	57M7106	1	Elec. Connector Terminal	Cavity A
14	57M7255	1	Elec. Connector Housing	Power Shuttle Potentiometer XB06
14	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
14	57M9214	3	Elec. Connector Seal	Cavity A, B, C
14	57M7290	1	Elec. Connector Accessory	-
15	57M7260	1	Elec. Connector Housing	Clutch Pedal Position Sensor XB05
15	57M7494	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
15	57M9214	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
15	57M7291	1	Electrical Connector Assy	-
16	57M7258	2	Elec. Connector Seal	Cavity D, E
16	57M7259	2	Elec. Connector Seal	Cavity C, F
16	57M7291	1	Electrical Connector Assy	-
16	57M9215	1	Elec. Connector Seal	Cavity A
16	57M10770	4	Elec. Connector Terminal	Cavity A, B, D, E
16	57M7260	1	Elec. Connector Housing	Instrument Cluster XA1_2
16	57M9214	1	Elec. Connector Seal	Cavity B
17	57M7296	1	Elec. Connector Accessory	-
17	57M7259	4	Elec. Connector Seal	Cavity E, F, G, H
17	57M9215	2	Elec. Connector Seal	Cavity C, D
17	57M7258	2	Elec. Connector Seal	Cavity A, B
17	R104846	2	Elec. Connector Terminal	Cavity C, D
17	57M9541	2	Elec. Connector Terminal	Cavity A, B
17	57M7261	1	Elec. Connector Housing	Brake Switch XS04
18	57M7262	1	Elec. Connector Housing	Instrument Cluster XA1_1
18	57M10770	4	Elec. Connector Terminal	Cavity A, C, D, H
18	57M7494	2	Elec. Connector Terminal	Cavity B, G
18	57M9215	4	Elec. Connector Seal	Cavity A, C, D, H
18	57M9214	2	Elec. Connector Seal	Cavity B, G
18	57M7259	4	Elec. Connector Seal	Cavity E, F, J, K
18	57M8907	1	Elec.Connect Locking Device	-
19	57M7291	1	Electrical Connector Assy	-
19	57M7259	3	Elec. Connector Seal	Cavity D, E, F
19	R104919	3	Elec. Connector Terminal	Cavity A, B, C
19	57M7263	1	Elec. Connector Housing	MFWD Switch XS10
19	57M9214	3	Elec. Connector Seal	Cavity A, B, C
20	57M7293	1	Elec. Connector Housing	Air Conditioner Compressor Clutch, 3-Cylinder XM04_1
20	57M7527	1	Elec. Connector Terminal	Cavity A
20	57M9549	1	Elec. Connector Seal	Cavity A
20	57M7295	2	Elec.Connect Locking Device	-
20	57M7294	1	Elec. Connector Housing	-
20	R78064	1	Elec. Connector Cavity Plug	-
21	57M7304	1	Elec. Connector Housing	-
21	57M7306	2	Elec.Connect Locking Device	-
21	R78064	2	Elec. Connector Cavity Plug	-
21	57M9218	2	Elec. Connector Seal	Cavity A, B
21	57M7491	2	Elec. Connector Terminal	Cavity A, B
21	57M7309	1	Elec. Connector Housing	Air Conditioner Compressor Clutch, 4-Cylinder XM04
22	57M7840	1	Elec. Connector Housing	Forward Neutral Reverse Switch XS07
22	57M9541	4	Elec. Connector Terminal	Cavity A, B, C, D
22	57M7258	4	Elec. Connector Seal	Cavity A, B, C, D
22	57M7469	1	Electrical Connector Assy	-
23	57M7985	1	Electrical Connector Assy	Roll Mode Switch XS15
23	57M9546	2	Elec. Connector Terminal	Cavity A, B
23	57M9214	2	Elec. Connector Seal	Cavity A, B
23	57M9712	1	Elec. Connector Accessory	-
24	M136173	5	Lock Nut	-

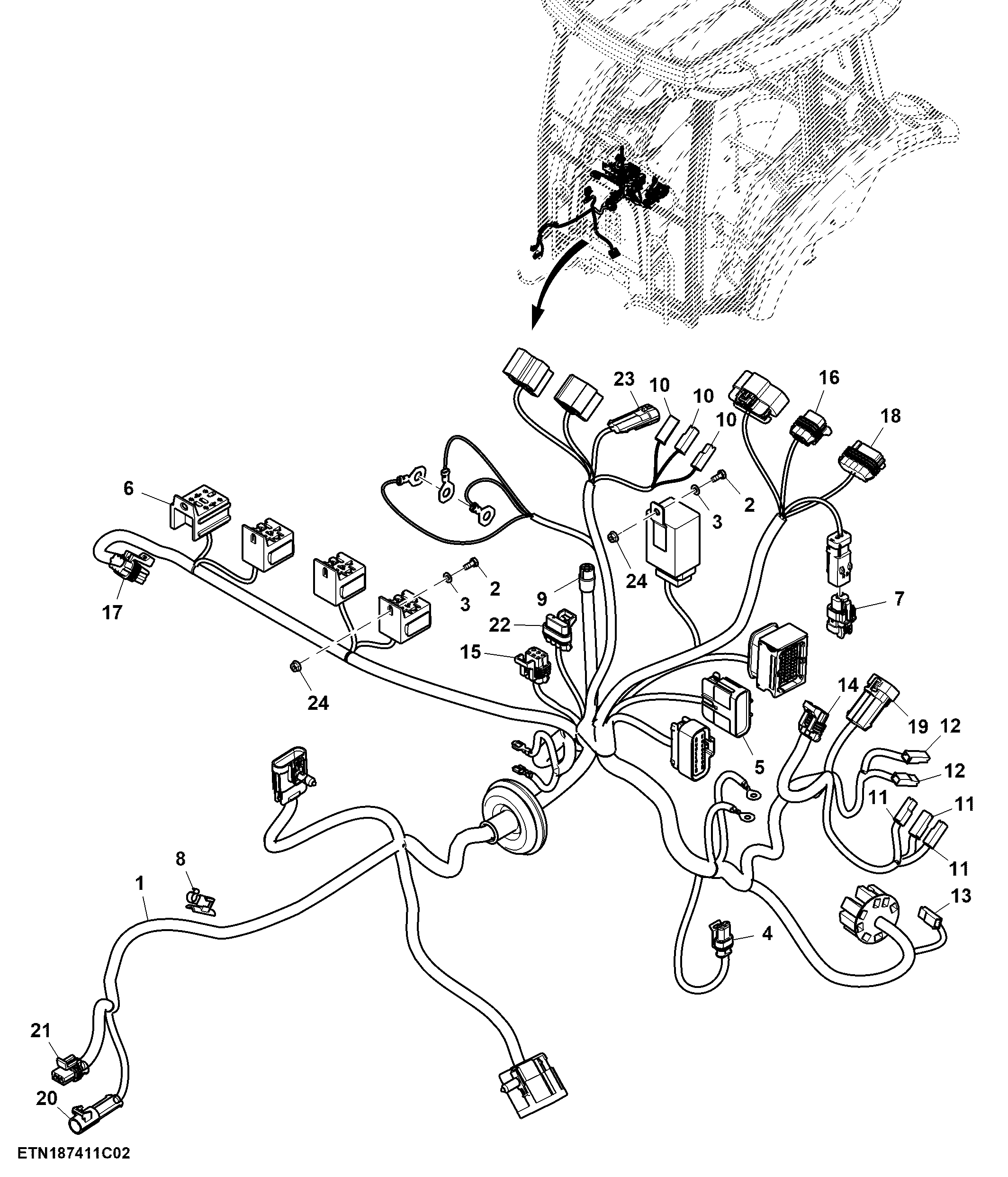

Console Wiring Harness Connectors (1/2), PowrReverser™, Cab
