Открытый узел

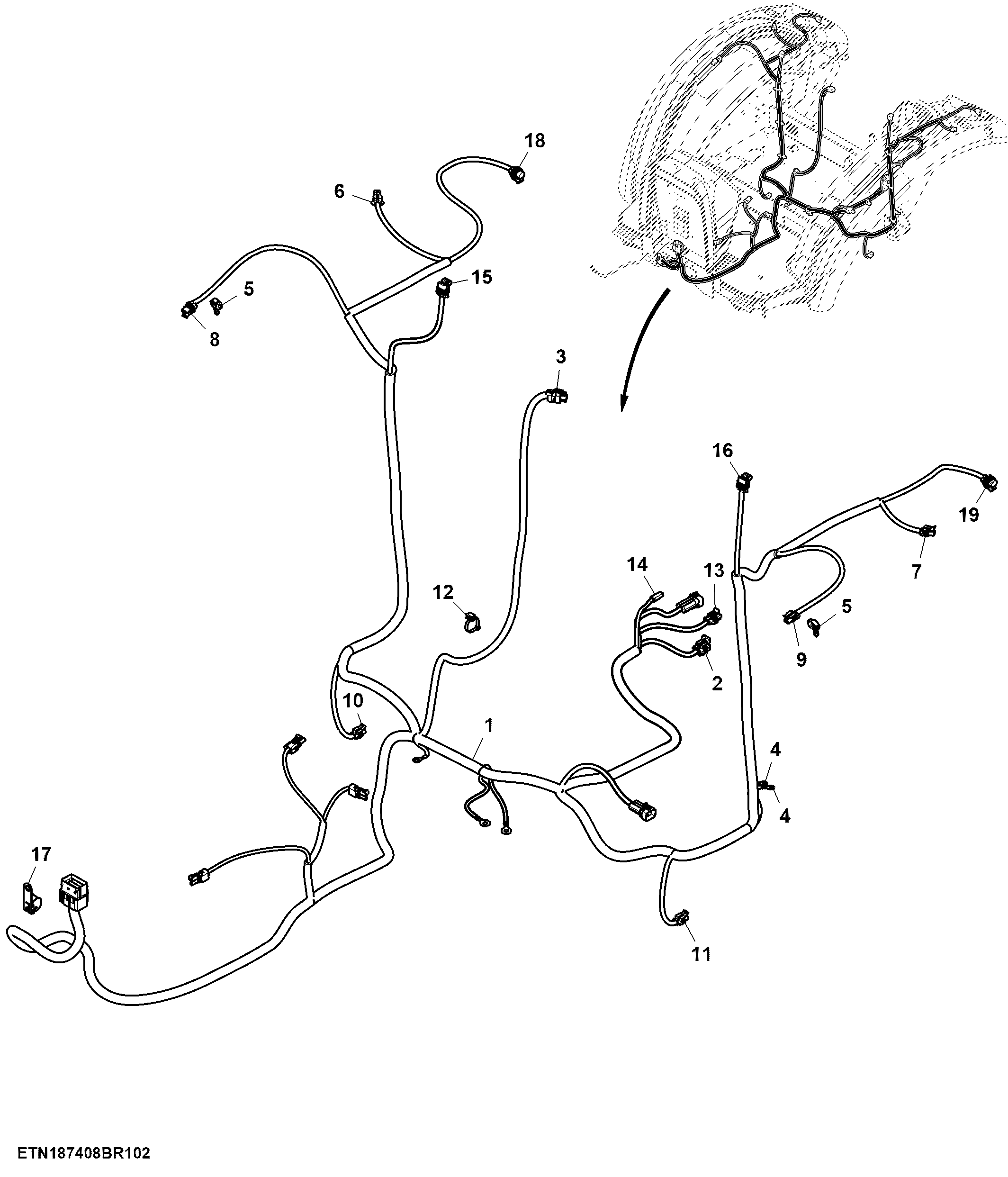

Platform Wiring Harness Connectors (1/2), SyncShuttle™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ35397	1	Wiring Harness	-
2	57M7260	1	Elec. Connector Housing	SAE Trailer Connector XX1_1
2	57M7291	2	Electrical Connector Assy	-
2	57M7263	1	Elec. Connector Housing	-
2	57M7259	6	Elec. Connector Seal	-
2	57M7259	1	Elec. Connector Seal	Cavity E
2	57M7258	3	Elec. Connector Seal	Cavity A, D, F
2	57M9541	3	Elec. Connector Terminal	Cavity B, D, F
2	57M10770	2	Elec. Connector Terminal	Cavity A, C
2	57M9215	1	Elec. Connector Seal	Cavity C
3	57M9772	1	Elec. Connector Housing	Fuel Level Sender XB2
3	R78065	2	Elec. Connector Terminal	Cavity 1, 2
4	57M7565	2	Elec. Connector Terminal	Backup Alarm XH6
5	57M8903	2	Clip	-
6	57M7254	1	Elec. Connector Housing	Backup Light XE23
6	57M7494	2	Elec. Connector Terminal	Cavity A, B
6	57M9214	2	Elec. Connector Seal	Cavity A, B
6	57M7289	1	Elec.Connect Locking Device	-
7	57M7254	1	Elec. Connector Housing	License Plate Light XE11
7	57M7289	1	Elec.Connect Locking Device	-
7	57M9214	2	Elec. Connector Seal	Cavity A, B
7	57M7494	2	Elec. Connector Terminal	Cavity A, B
8	57M7254	1	Elec. Connector Housing	Front Work Lamp XE16, RH
8	57M7289	1	Elec.Connect Locking Device	-
9	57M7254	1	Elec. Connector Housing	Front Work Lamp XE15, LH
9	57M7289	1	Elec.Connect Locking Device	-
10	57M7254	1	Elec. Connector Housing	Rear Worklamp XE13, RH
10	57M7289	1	Elec.Connect Locking Device	-
11	57M7254	1	Elec. Connector Housing	Rear Worklamp XE12, LH
11	57M7289	1	Elec.Connect Locking Device	-
12	57M13863	1	Elec. Connector Accessory	-
13	57M7299	2	Elec. Connector Terminal	Cavity A, B
13	57M9217	2	Elec. Connector Seal	Cavity A, B
13	57M7304	1	Elec. Connector Housing	-
13	57M7306	2	Elec.Connect Locking Device	-
13	R78064	2	Elec. Connector Cavity Plug	-
13	57M7309	1	Elec. Connector Housing	Trailer Connector XX1_2
14	57M7170	1	Elec. Connector Housing	Work Lamp XX9
14	57M7106	1	Elec. Connector Terminal	Cavity A
15	57M7255	1	Elec. Connector Housing	Turn Signal/Position Light XE18, RH
15	57M7494	1	Elec. Connector Terminal	Cavity A
15	R104846	2	Elec. Connector Terminal	Cavity B, C
15	57M9214	3	Elec. Connector Seal	Cavity A, B, C
15	57M7290	1	Elec. Connector Accessory	-
16	57M7494	1	Elec. Connector Terminal	Cavity A
16	57M7290	1	Elec. Connector Accessory	-
16	57M9214	3	Elec. Connector Seal	Cavity A, B, C
16	R104846	2	Elec. Connector Terminal	Cavity B, C
16	57M7255	1	Elec. Connector Housing	Turn Signal/Position Light XE17, LH
17	57M8827	1	Clamp	-
18	57M7349	1	Elec. Connector Accessory	Rear Tail/Brake/Turn Lamp XE03, RH
18	57M10770	2	Elec. Connector Terminal	Cavity A, C
18	57M7494	1	Elec. Connector Terminal	Cavity B
18	57M9214	4	Elec. Connector Seal	Cavity A, B, C, D
18	57M7347	1	Elec. Connector Accessory	-
19	57M7349	1	Elec. Connector Accessory	Rear Tail/Brake/Turn Lamp XE04, LH
19	57M10770	2	Elec. Connector Terminal	Cavity A, C
19	57M7494	1	Elec. Connector Terminal	Cavity B
19	57M9214	4	Elec. Connector Seal	Cavity A, B, C, D
19	57M7347	1	Elec. Connector Accessory	-

Platform Wiring Harness Connectors (1/2), SyncShuttle™

Нет текстового описания
