Console Wiring Harness Connectors (2/2), SyncShuttle™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ35398	1	Wiring Harness	-
2	AL76702	2	Relay	12 V
3	57M9880	4	Relay	-
4	Z61311	1	Elec. Connector Housing	Neutral PTO Off Relay XK01
4	57M7513	1	Elec. Connector Terminal	Cavity 85
4	57M9880	1	Relay	-
5	57M7260	1	Elec. Connector Housing	Instrument Cluster XA5_2
5	57M10770	4	Elec. Connector Terminal	Cavity A, C, D, E
5	57M9215	1	Elec. Connector Seal	Cavity A
5	57M9214	3	Elec. Connector Seal	Cavity C, D, E
5	57M7259	1	Elec. Connector Seal	Cavity F
5	57M7291	1	Electrical Connector Assy	-
6	57M7182	1	Elec. Connector Housing	Light System Diode Module XV03
6	57M12740	5	Elec. Connector Terminal	Cavity 2, 4, 5, 6, 8
6	RE262484	1	Diode	-
7	RE262484	1	Diode	-
7	57M12740	1	Elec. Connector Terminal	Cavity 8
7	57M7182	1	Elec. Connector Housing	Diode Module XV02
8	L78202	1	Elec. Connector Housing	Key Switch XS1_1
8	57M7106	5	Elec. Connector Terminal	Cavity ACC, BAT1, ELX, IGN, ST
8	57M7089	1	Elec. Connector Terminal	Cavity BAT2
8	57M9153	6	Elec.Connect Locking Device	-
9	AH225365	1	Clip	-
10	57M7079	1	Elec. Connector Terminal	Platform Ground 3 XGND18
11	57M7348	1	Elec. Connector Terminal	Platform Ground 2 XGND17
12	24M7117	6	Washer	4.300 X 9 X 0.800 mm
13	M136173	6	Lock Nut	-
14	19M7598	6	Cap Screw	M4 X 10
15	57M7689	2	Fuse	10 A
15	57M7690	5	Fuse	15 A
15	57M7691	2	Fuse	20 A
15	57M8163	4	Fuse	30 A
15	57M9880	4	Relay	-
15	RE194287	1	Fuse Holder	-
15	57M11541	8	Elec. Connector Terminal	Cavity A5, B1, B5, C2, C3, C5, D2, D5
15	57M7401	14	Elec. Connector Cavity Plug	Cavity A6, B6, B7, B8, B9, B10, C6, D6, E6, E7, E8, E9, E10, F6
15	57M7400	24	Elec. Connector Seal	Cavity A3, A4, A9, A10, B3, B4, C1, C4, C9, C10, D1, D3, D4, D7, D8, D10, E3, E4, F1, F3, F4, F5, F7, F8
15	57M7399	14	Elec. Connector Seal	Cavity A1, A2, A7, A8, B2, C7, C8, D9, E1, E2, E5, F2, F9, F10
15	57M8584	24	Elec. Connector Terminal	Cavity A3, A4, A9, A10, B3, B4, C1, C4, C9, C10, D1, D3, D4, D7, D8, D10, E3, E4, F1, F3, F4, F5, F7, F8
15	57M8585	14	Elec. Connector Terminal	Cavity A1, A2, A7, A8, B2, C7, C8, D9, E1, E2, E5, F2, F9, F10
15	RE269840	1	Fuse Box	Load Center LC1
15	57M7688	5	Fuse	5 A
16	ET15766	1	Elec. Connector Housing	Trailer Power Relay XK13
16	57M7512	2	Elec. Connector Terminal	Cavity 30, 87
16	57M7515	2	Elec. Connector Terminal	Cavity 85, 86
16	M75140	1	Clip	-
16	RE68327	1	Relay	-
17	57M7103	2	Elec. Connector Terminal	Cavity 30, 87
17	57M9880	1	Relay	-
17	Z61311	1	Elec. Connector Housing	Fuel Pump Relay XK20
18	RE194287	1	Fuse Holder	-
19	57M7689	2	Fuse	10 A
20	57M8163	4	Fuse	30 A
21	57M7688	5	Fuse	5 A
22	57M7690	5	Fuse	15 A
23	57M7691	2	Fuse	20 A
24	57M7170	1	Elec. Connector Housing	High/Low Beam Switch XS24_1
24	57M7106	1	Elec. Connector Terminal	Cavity A
25	57M7170	1	Elec. Connector Housing	High/Low Beam Switch XS24_2
25	57M7106	1	Elec. Connector Terminal	Cavity A
26	57M7170	1	Elec. Connector Housing	Horn Switch XS5_2
26	57M7089	1	Elec. Connector Terminal	Cavity A

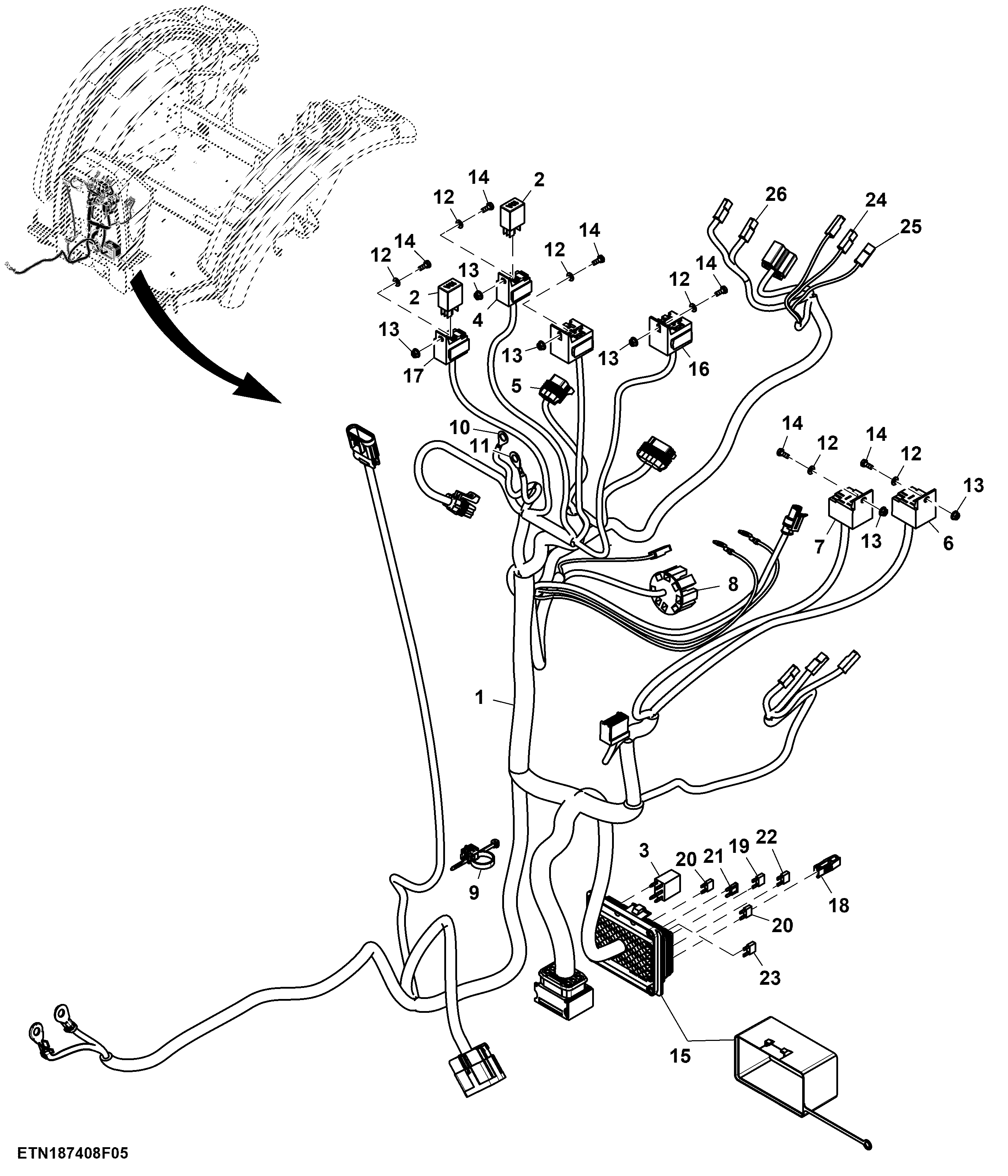

Console Wiring Harness Connectors (2/2), SyncShuttle™
