Console Wiring Harness Connectors (2/2), PowrReverser™, OOS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ35393	1	Wiring Harness	-
2	19M7598	3	Cap Screw	M4 X 10
3	ET15766	1	Elec. Connector Housing	Rear Work Lamp Relay XK11
3	57M7512	2	Elec. Connector Terminal	Cavity 30, 87
3	57M7511	2	Elec. Connector Terminal	Cavity 85, 86
4	RE68327	2	Relay	12 V, Module
5	AL202581	1	Relay Module	12 V, Warning Flasher
6	57M8757	5	Elec.Connect Locking Device	-
6	57M9679	5	Elec. Connector Terminal	Cavity B, 1, 2, 3, 4
6	57M8758	1	Elec. Connector Housing	Light Switch XS02
7	M136173	3	Lock Nut	-
8	57M7690	4	Fuse	15 A
8	RE194287	1	Fuse Holder	-
8	AN205067	1	Diode	-
8	57M8163	3	Fuse	30A
8	57M7691	1	Fuse	20A
8	57M7689	1	Fuse	10A
8	57M7688	4	Fuse	5 A
8	57M7401	14	Elec. Connector Cavity Plug	Cavity A6, B6, B7, B8, B9, B10, C6, D6, E6, E7, E8, E9, E10, F6
8	RE269840	1	Fuse Box	Load Center 1 LC1
8	57M7400	25	Elec. Connector Seal	Cavity A3, A4, A9, A10, B3, B4, C1, C9, C10, D1, D3, D4, D7, D8, D10, E3, E4, E5, F1, F3, F4, F5, F7, F8, F9
8	57M7399	13	Elec. Connector Seal	Cavity A1, A2, A7, A8, B2, C4, C7, C8, D9, E1, E2, F2, F10
8	57M8584	25	Elec. Connector Terminal	Cavity A3, A4, A9, A10, B3, B4, C1, C9, C10, D1, D3, D4, D7, D8, D10, E3, E4, E5, F1, F3, F4, F5, F7, F8, F9
8	57M8585	13	Elec. Connector Terminal	Cavity A1, A2, A7, A8, B2, C4, C7, C8, D9, E1, E2, F2, F10
8	57M9880	4	Relay	-
9	57M7399	2	Elec. Connector Seal	Cavity A5, C6
9	57M8163	1	Fuse	30 A
9	57M7691	1	Fuse	20 A
9	57M7690	1	Fuse	15 A
9	57M7689	2	Fuse	10 A
9	57M7688	4	Fuse	5 A
9	57M9880	3	Relay	-
9	57M7401	42	Elec. Connector Cavity Plug	Cavity A2, A3, A4, A9, A10, B2, B3, B4, B6, B7, B8, B9, B10, C2, C3, C4, C5, C9, C10, D2, D3, D4, D7, D8, D9, D10, E2, E3, E4, E5, E6, E7, E8, E9, E10 F2, F3, F4, F7, F8, F9, F10
9	57M7400	16	Elec. Connector Seal	Cavity A1, A6, A7, A8, B1, B5, C1, C7, C8, D1, D5, D6, E1, F1, F5, F6
9	57M8585	2	Elec. Connector Terminal	Cavity A5, C6
9	57M8584	16	Elec. Connector Terminal	Cavity A1, A6, A7, A8, B1, B5, C1, C7, C8, D1, D5, D6, E1, F1, F5, F6
9	RE269840	1	Fuse Box	Load Center 2 LC2
10	57M8276	1	Elec. Connector Housing	Hood Interconnect XXH
10	57M8910	1	Clip	-
10	57M8323	1	Elec. Connector Terminal	Cavity D
10	57M8318	1	Elec. Connector Terminal	Cavity C
10	57M8307	1	Elec. Connector Terminal	Cavity D
10	57M8324	2	Elec. Connector Terminal	Cavity A, B
10	57M8309	3	Elec. Connector Terminal	Cavity A, B, C
11	ET15766	1	Elec. Connector Housing	Trailer Power Relay XK13
11	57M7512	2	Elec. Connector Terminal	Cavity 30, 87
11	57M7515	2	Elec. Connector Terminal	Cavity 85, 86
12	57M7182	1	Elec. Connector Housing	Diode Module Light System
12	57M12740	5	Elec. Connector Terminal	-
13	57M12024	1	Elec. Connector Accessory	-
14	57M9776	1	Elec. Connector Housing	CAN Terminator XR02
14	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
14	57M11134	1	Elec. Connector Housing	-
15	57M13563	3	Elec. Connector Accessory	-
16	24M7117	3	Washer	4.300 X 9 X 0.800 mm
17	57M7296	1	Elec. Connector Accessory	-
17	57M7259	4	Elec. Connector Seal	Cavity E, F, G, H
17	57M9215	2	Elec. Connector Seal	Cavity C, D
17	57M7258	2	Elec. Connector Seal	Cavity A, B
17	57M10770	2	Elec. Connector Terminal	Cavity C, D
17	57M9541	2	Elec. Connector Terminal	Cavity A, B
17	57M7261	1	Elec. Connector Housing	Brake Switch XS04
18	57M7262	1	Elec. Connector Housing	Instrument Cluster XA1_1
18	57M10770	4	Elec. Connector Terminal	Cavity A, C, D, H
18	57M7494	2	Elec. Connector Terminal	Cavity B, G
18	57M9214	2	Elec. Connector Seal	Cavity B, G
18	57M9215	4	Elec. Connector Seal	Cavity A, C, D, H
18	57M7259	4	Elec. Connector Seal	Cavity E, F, J, K
18	57M8907	1	Elec.Connect Locking Device	-
19	L39317	1	Elec. Connector Terminal	Flasher X02
20	57M7263	1	Elec. Connector Housing	MFWD Switch XS10
20	R104919	3	Elec. Connector Terminal	Cavity A, B, C
20	57M9214	3	Elec. Connector Seal	Cavity A, B, C
20	57M7259	3	Elec. Connector Seal	Cavity D, E, F
20	57M7291	1	Electrical Connector Assy	-

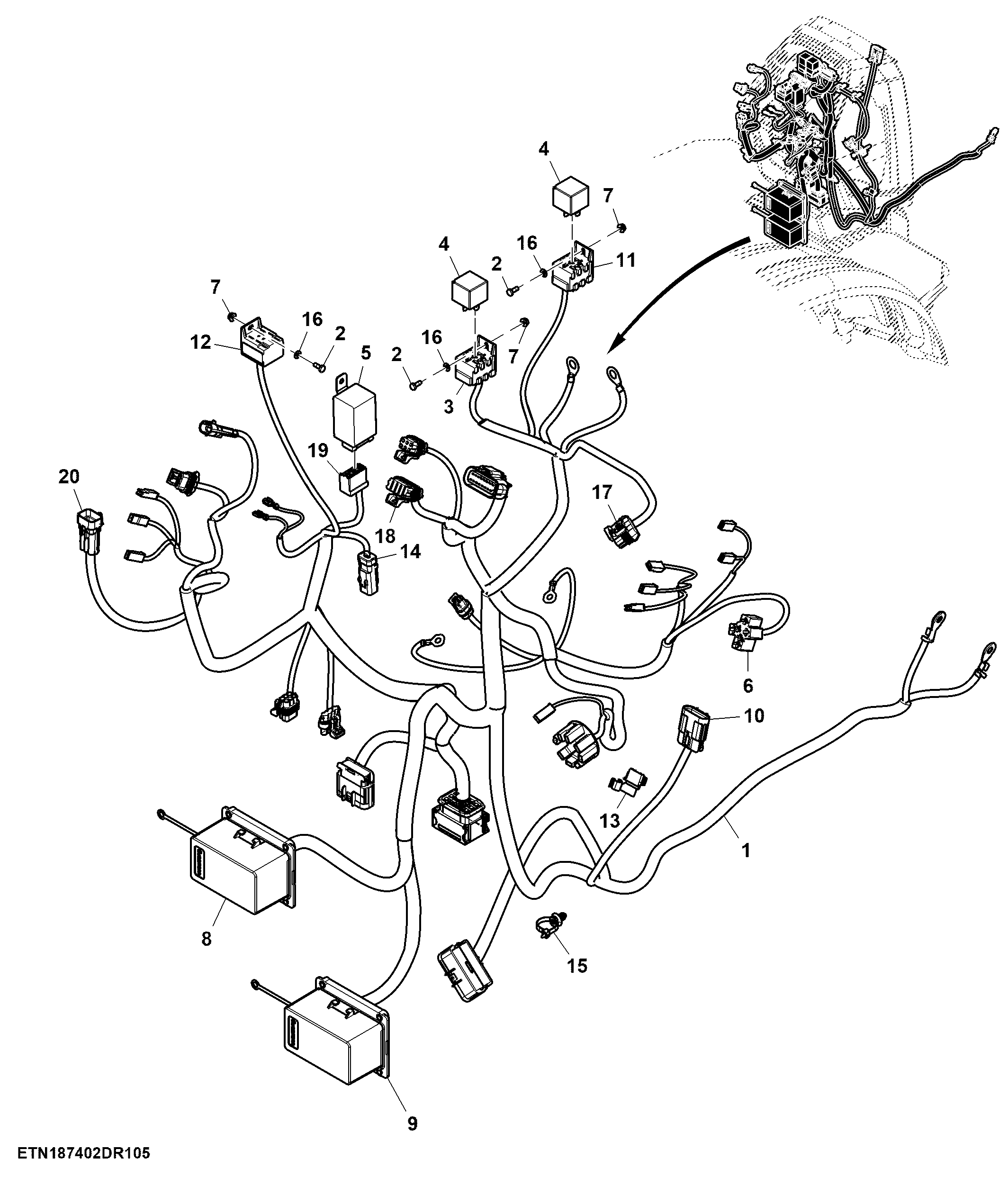

Console Wiring Harness Connectors (2/2), PowrReverser™, OOS
