Открытый узел

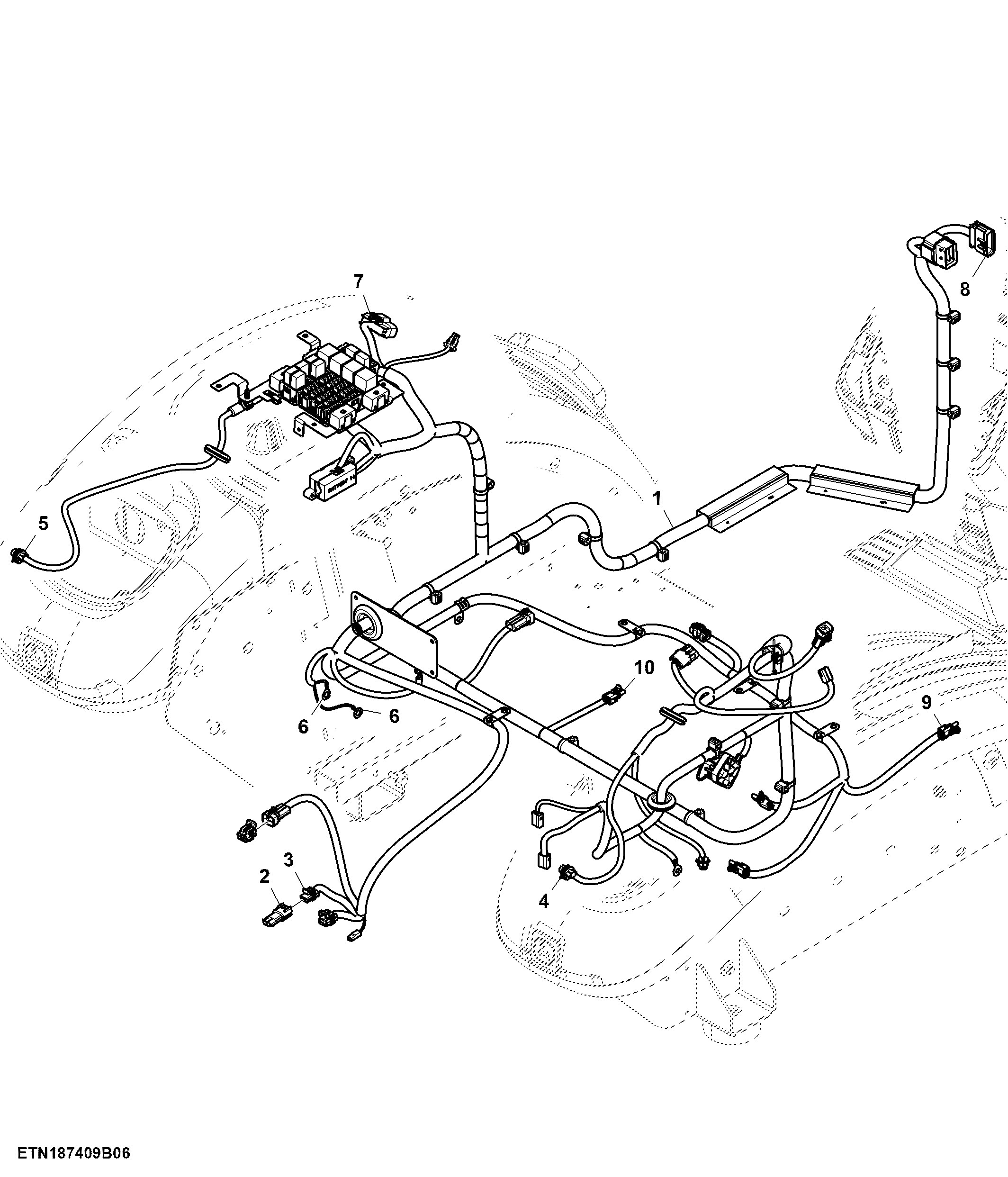

Cab Wiring Harness Connectors (3/3), SyncShuttle™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ41218	1	Wiring Harness	SUB FOR SJ32930
2	57M7304	1	Elec. Connector Housing	Trailer to Platform
2	57M7306	1	Elec.Connect Locking Device	-
2	R78064	2	Elec. Connector Cavity Plug	-
3	57M7309	1	Elec. Connector Housing	Trailer to Platform XX1_2
3	57M7299	2	Elec. Connector Terminal	Cavity A, B
3	57M9217	2	Elec. Connector Seal	Cavity A, B
3	57M7304	1	Elec. Connector Housing	-
3	57M7306	1	Elec.Connect Locking Device	-
3	R78064	2	Elec. Connector Cavity Plug	-
4	57M9214	4	Elec. Connector Seal	Cavity A, B, C, D
4	57M7347	1	Elec. Connector Accessory	-
4	57M7494	1	Elec. Connector Terminal	Cavity B
4	R104846	2	Elec. Connector Terminal	Cavity A, C
4	57M7349	1	Elec. Connector Accessory	Rear Tail/Brake/Turn Lamp XE03, RH
5	57M7349	1	Elec. Connector Accessory	Rear Tail/Brake/Turn Lamp XE04, LH
5	R104846	2	Elec. Connector Terminal	Cavity A, C
5	57M7494	1	Elec. Connector Terminal	Cavity B
5	57M9214	4	Elec. Connector Seal	Cavity A, B, C, D
5	57M7347	1	Elec. Connector Accessory	-
6	57M7894	2	Elec. Connector Terminal	Cab Ground
7	57M8302	1	Elec. Connector Terminal	Cavity C
7	57M11955	1	Elec. Connector Accessory	-
7	57M8318	3	Elec. Connector Terminal	Cavity E, L, N
7	57M8322	4	Elec. Connector Terminal	Cavity C, J, P, S
7	57M8323	4	Elec. Connector Terminal	Cavity B, D, F, R
7	57M12016	3	Elec. Connector Terminal	Cavity E, L, N
7	57M8303	7	Elec. Connector Terminal	Cavity B, D, F, J, P, R, S
7	57M8304	5	Elec. Connector Terminal	Cavity A, G, H, K, M
7	57M8279	1	Elec. Connector Housing	Cab to Roof Interconnect XXR_3
7	57M8324	5	Elec. Connector Terminal	Cavity A, G, H, K, M
8	57M9223	2	Elec. Connector Seal	Cavity E, R
8	57M11996	1	Elec. Connector Accessory	-
8	57M9446	2	Elec. Connector Seal	Cavity D
8	57M8324	1	Elec. Connector Terminal	Cavity H
8	57M8321	9	Elec. Connector Terminal	Cavity B, C, F, G, K, L, M, N, P
8	57M8318	3	Elec. Connector Terminal	Cavity A, J, S
8	57M9539	2	Elec. Connector Terminal	Cavity E, R
8	57M8301	5	Elec. Connector Terminal	Cavity B, C, G, K, N
8	57M8309	4	Elec. Connector Terminal	Cavity A, H, J, S
8	57M8281	1	Elec. Connector Housing	Cab to Console Interconnect XXR_1
9	RE12363	1	Electrical Connector Assy	Fuel Transfer Pump XM07
9	57M10924	2	Elec. Connector Terminal	Cavity A, B
9	57M9549	2	Elec. Connector Seal	Cavity A, B
10	RE12363	1	Electrical Connector Assy	Seat Compressor XA13
10	57M9545	2	Elec. Connector Terminal	Cavity A, B
10	57M9549	2	Elec. Connector Seal	Cavity A, B
10	R78064	2	Elec. Connector Cavity Plug	-
10	R78053	1	Electrical Connector Assy	-

Cab Wiring Harness Connectors (3/3), SyncShuttle™
