Cab Wiring Harness Connectors (3/3), PowrReverser™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ41217	1	Wiring Harness	SUB FOR SJ32932
2	57M8756	1	Elec. Connector Accessory	Load Center 1 BLK1
2	57M7689	2	Fuse	-
2	57M7690	3	Fuse	-
2	57M7688	5	Fuse	-
2	57M9138	4	Elec.Connect Locking Device	-
2	57M8295	16	Elec. Connector Terminal	Cavity A3, A4, B3, B4, C1, C2, D1, D2, E1, E2, E3, F1, F2, F3, G1, H1
2	57M10977	8	Elec. Connector Terminal	Cavity A1, A2, B1, B2, C3, C4, D3, D4
2	57M8163	6	Fuse	-
3	57M9138	4	Elec.Connect Locking Device	-
3	57M9880	5	Relay	-
3	57M8760	5	Elec. Connector Accessory	-
3	57M9142	1	Elec. Connector Accessory	-
3	57M8885	1	Elec. Connector Terminal	Cavity G2
3	57M8295	12	Elec. Connector Terminal	Cavity A2, A3, A4, C1, C3, C4, D4, F3, G3, G4, J3, J4
3	57M8298	7	Elec. Connector Terminal	Cavity A1, C2, D3, F4, G1, J1, J2
3	57M8756	1	Elec. Connector Accessory	Load Center 3 BLK3
4	57M7691	3	Fuse	-
4	57M7689	2	Fuse	-
4	57M7690	4	Fuse	-
4	57M7688	4	Fuse	-
4	57M9138	4	Elec.Connect Locking Device	-
4	57M10977	7	Elec. Connector Terminal	Cavity B1, C2, C3, D2, E1, G3, H3
4	57M8295	14	Elec. Connector Terminal	Cavity A3, A4, B3, B4, C1, D1, D3, D4, E3, E4, F3, F4, G1, H1
4	57M8298	7	Elec. Connector Terminal	Cavity A1, A2, B2, C4, E2, F1, F2
4	57M8756	1	Elec. Connector Accessory	Load Center 2 BLK2
4	57M8163	3	Fuse	-
5	AN205067	1	Diode	-
5	57M9880	3	Relay	-
5	57M9138	2	Elec.Connect Locking Device	-
5	57M8295	12	Elec. Connector Terminal	Cavity A2, A3, B1, B3, D1, D2, D3, D4, F1, F2, F3, F4
5	57M7491	2	Elec. Connector Terminal	Cavity A1, C2
5	57M8756	1	Elec. Connector Accessory	Load Center 5 BLK5
6	57M9152	1	Elec. Connector Housing	Load Center 4 BLK4
6	57M7512	9	Elec. Connector Terminal	Cavity R1-30, R1-87, R1-87A, R2-30, R2-87, R2-87A, R3-30, R4-30, R4-87
6	57M7511	4	Elec. Connector Terminal	Cavity R1-85, R1-86, R2-85, R2-86
6	Z70804	5	Elec. Connector Terminal	Cavity R3-85, R3-86, R3-87, R4-85, R4-86
6	57M9153	18	Elec.Connect Locking Device	-
6	RE194287	1	Fuse Holder	-
6	57M8749	4	Elec. Connector Accessory	-
6	19M8649	4	Screw	M6 X 20
6	RE68327	4	Relay	-

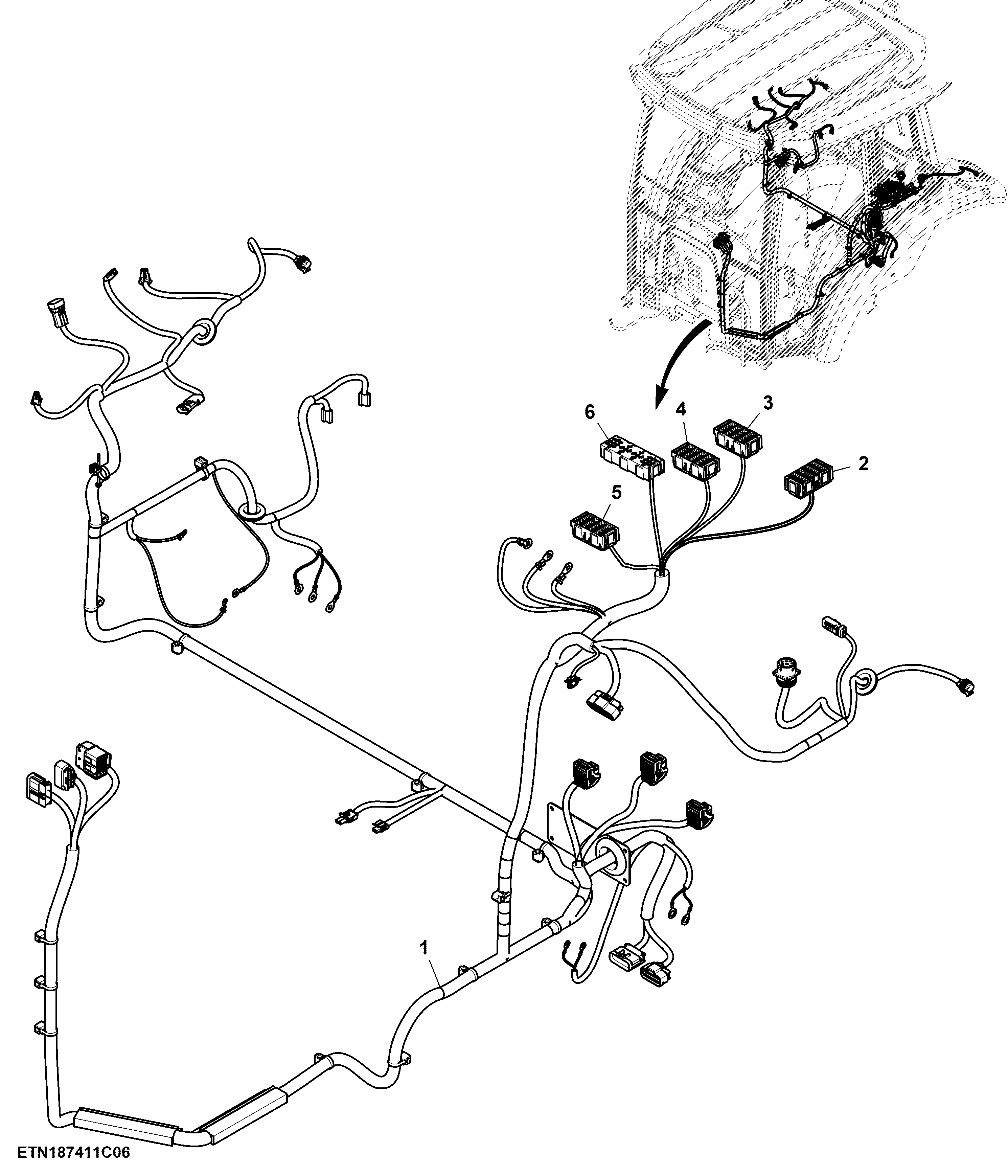

Cab Wiring Harness Connectors (3/3), PowrReverser™
