Открытый узел

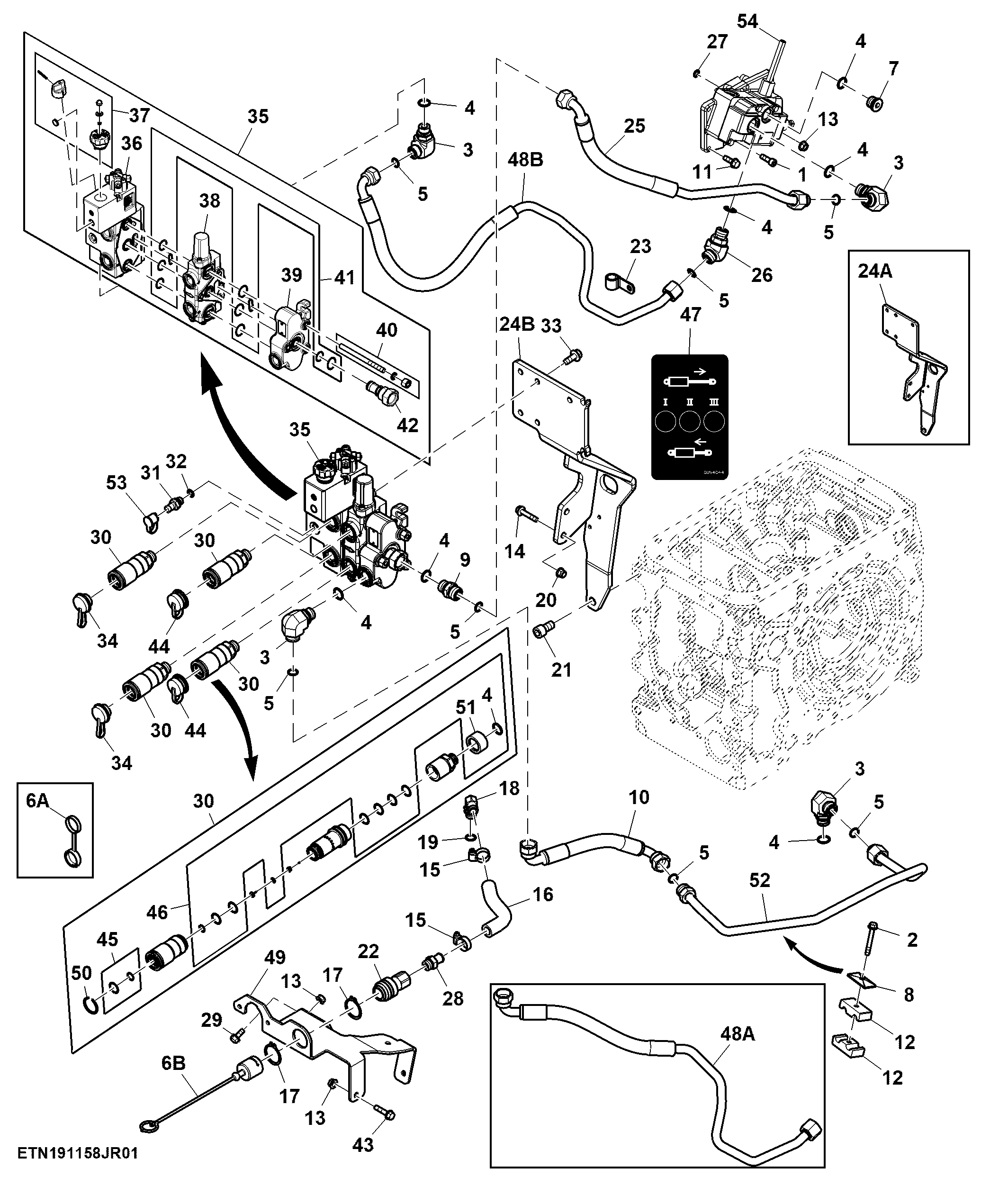

Dual Stack SCV, W/ Hitch, Continuous Flow

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7657	1	Screw	M8 X 25
2	19M7801	1	Screw	M8 X 60
3	38H5018	4	Elbow Fitting	-
4	51M7045	7	O-Ring	19.300 X 2.200 mm
5	T77932	7	O-Ring	-
7	64M1021	1	Drain Plug	-
8	H112567	1	Plate	-
9	38H5004	1	Adapter Fitting	-
10	SJ38896	1	Oil Line	LGTH = 285 mm, Tank SUB FOR SJ37151
11	19M7867	4	Screw	M8 X 25
12	R115772	2	Clamp	-
13	14M7298	6	Flange Nut	M8
14	19M8317	1	Screw	M8 X 40
15	AL80154	2	Clamp	-
16	SJ30755	1	Hydraulic Hose	Return
17	R120797	2	Snap Ring	-
18	AL116423	1	Fitting	-
19	51M7043	1	O-Ring	15.300 X 2.200 mm
20	14M7396	1	Lock Nut	M8
21	19M9201	1	Screw	M14 X 25
22	RE214614	1	Hyd. Quick-Connect Coupler	ORDER RE597961
22	RE597961	1	Hyd. Quick-Connect Coupler	-
23	R213627	1	Hose Clamp	-
25	SJ38139	1	Oil Line	Return
26	38H5146	1	Elbow Fitting	-
27	T36492	1	O-Ring	-
28	TCA14539	1	Fitting	-
29	19M7866	3	Screw	M8 X 20
30	AL229195	4	Hydr. Quick Coupler Socket	-
31	RE190805	1	Diagnostic Coupling	-
32	51M7041	1	O-Ring	11.300 X 2.200 mm
33	19M7785	3	Screw	M10 X 25
34	A15899	2	Plug	Green
35	SJ33351	1	Selective Control Valve	-
36	SJ34787	1	Selective Control Valve	Inlet
37	SJ34788	1	Knob	-
38	SJ34789	1	Valve	-
39	SJ34790	1	Selective Control Valve	Outlet
40	SJ34793	1	Tie Rod Assembly	-
41	SJ34795	1	Seal Kit	-
42	SU55604	1	Fitting	-
43	19M7897	1	Screw	M8 X 35
44	L209633	2	Plug	Blue
45	AL205022	4	Seal Kit	-
46	AL112953	4	Seal Kit	-
47	SU54044	1	Label	SCV Identification
49	SU56973	1	Bracket	Oil Lines
50	40M7102	4	Snap Ring	-
51	L112370	4	Cover	-
52	SJ37150	1	Oil Line	Tank
53	R77175	1	Cover	Black
54	SJ24332	1	Valve	RCV Inlet ALSO ORDER 15H666
54	15H666	1	Pipe Plug	3/8"
6A	R218933	1	Cover	Drain ORDER R573507
6B	R573507	1	Cover	-
24A	SJ33201	1	Bracket	ORDER SJ41191
24B	SJ41191	1	Bracket	Stackable SCV
48A	SJ33514	1	Oil Line	Pressure
48B	SJ33515	1	Oil Line	Pressure SUB FOR SJ33514

Dual Stack SCV, W/ Hitch, Continuous Flow
