Platform Wiring Harness Connectors (2/3), PowrReverser™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ35392	1	Wiring Harness	-
2	57M7309	1	Elec. Connector Housing	Trailer Connector XX1_2
2	57M7299	2	Elec. Connector Terminal	Cavity A, B
2	57M9217	2	Elec. Connector Seal	Cavity A, B
2	57M7306	1	Elec.Connect Locking Device	-
2	57M7304	1	Elec. Connector Housing	-
2	R78064	2	Elec. Connector Cavity Plug	-
3	57M9776	1	Elec. Connector Housing	CAN Terminator XR03
3	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
3	57M11134	1	Elec. Connector Housing	-
4	57M7348	2	Elec. Connector Terminal	Platform Ground
5	57M10615	1	Elec. Connector Housing	Transmission Controller XA2_2
5	57M10334	1	Elec. Connector Cavity Plug	Cavity L3
5	57M10333	19	Elec. Connector Cavity Plug	Cavity A2, A4, B3, B4, C1, C2, C3, C4, D1, D3, E1, E2, G2, G3, H1, H3, J1, J3, K3
5	57M10331	7	Elec. Connector Terminal	Cavity L1, L2, L4, M1, M2, M3, M4
5	57M10590	5	Elec. Connector Housing	Cavity B1, D2, F3, H2, H4
5	57M10514	13	Elec. Connector Terminal	Cavity A1, B2, D4, E3, E4, F1, F4, G1, G4, J4, K1, K2, K4
6	57M10613	1	Elec. Connector Housing	Transmission Controller
7	57M7260	1	Elec. Connector Housing	SAE Trailer Connector XX1_1
7	57M7291	1	Electrical Connector Assy	-
7	57M7263	6	Elec. Connector Housing	-
7	57M7259	1	Elec. Connector Seal	-
7	57M7259	1	Elec. Connector Seal	Cavity E
7	57M7258	2	Elec. Connector Seal	Cavity D, F
7	57M9215	2	Elec. Connector Seal	Cavity A, C
7	57M9541	3	Elec. Connector Terminal	Cavity B, D, F
7	R104846	2	Elec. Connector Terminal	Cavity A, C
8	57M7919	1	Elec. Connector Housing	Service Advisor Connector X07
8	R78066	4	Elec. Connector Terminal	Cavity A, B, C, D
8	Z78008	5	Elec. Connector Seal	Cavity E, F, G, H, J
9	57M9939	1	Elec. Connector Accessory	-
10	57M13863	1	Elec. Connector Accessory	-
11	57M13172	1	Elec. Connector Accessory	-
12	57M9860	1	Clamp	-
13	57M7289	1	Elec.Connect Locking Device	-
13	57M9214	1	Elec. Connector Seal	Cavity B
13	57M7254	1	Elec. Connector Housing	Rear Worklamp XE12, LH
13	57M7494	1	Elec. Connector Terminal	Cavity B
14	57M7254	1	Elec. Connector Housing	Rear Worklamp XE13, RH
14	57M7494	1	Elec. Connector Terminal	Cavity B
14	57M9214	1	Elec. Connector Seal	Cavity B
14	57M7289	1	Elec.Connect Locking Device	-
15	57M7289	1	Elec.Connect Locking Device	-
15	57M9214	1	Elec. Connector Seal	Cavity B
15	57M7494	1	Elec. Connector Terminal	Cavity B
15	57M7254	1	Elec. Connector Housing	Front Worklamp XE15, LH
16	57M7254	1	Elec. Connector Housing	Front Worklamp XE16, RH
16	57M7289	1	Elec.Connect Locking Device	-
17	57M7254	1	Elec. Connector Housing	License Plate Lamp XE11
17	57M7494	2	Elec. Connector Terminal	Cavity A, B
17	57M9214	2	Elec. Connector Seal	Cavity A, B
17	57M9214	1	Elec. Connector Seal	-
18	57M7289	1	Elec.Connect Locking Device	-
18	57M9214	2	Elec. Connector Seal	Cavity A, B
18	57M7254	1	Elec. Connector Housing	Backup Light XE23
18	57M7494	2	Elec. Connector Terminal	Cavity A, B
19	57M13563	6	Elec. Connector Accessory	-
20	57M8484	1	Elec. Connector Housing	Console Interconnect XXR_1
20	57M8299	10	Elec. Connector Terminal	Cavity A, B, F, G, H, L, M, N, P, R
20	57M8300	2	Elec. Connector Terminal	Cavity J, K
20	57M8321	2	Elec. Connector Terminal	Cavity J, K
20	57M9223	10	Elec. Connector Seal	Cavity A, B, F, G, H, L, M, N, P, R
20	57M9446	1	Elec. Connector Seal	Cavity S
20	57M9919	1	Elec. Connector Accessory	-
21	R213663	1	Clamp	-
22	57M8902	1	Clip	-
23	57M9772	1	Elec. Connector Housing	MFWD Off Solenoid XY06
23	R78065	2	Elec. Connector Terminal	Cavity 1, 2
24	57M9772	1	Elec. Connector Housing	PTO Solenoid XY04
24	R78065	2	Elec. Connector Terminal	Cavity 1, 2
25	57M9772	1	Elec. Connector Housing	Fuel Level Sender XB2
25	R78065	2	Elec. Connector Terminal	Cavity 1, 2
26	57M7257	1	Elec. Connector Housing	Rear PTO Switch XS09
26	57M9546	3	Elec. Connector Terminal	Cavity A, B, C
26	57M9214	3	Elec. Connector Seal	Cavity A, B, C

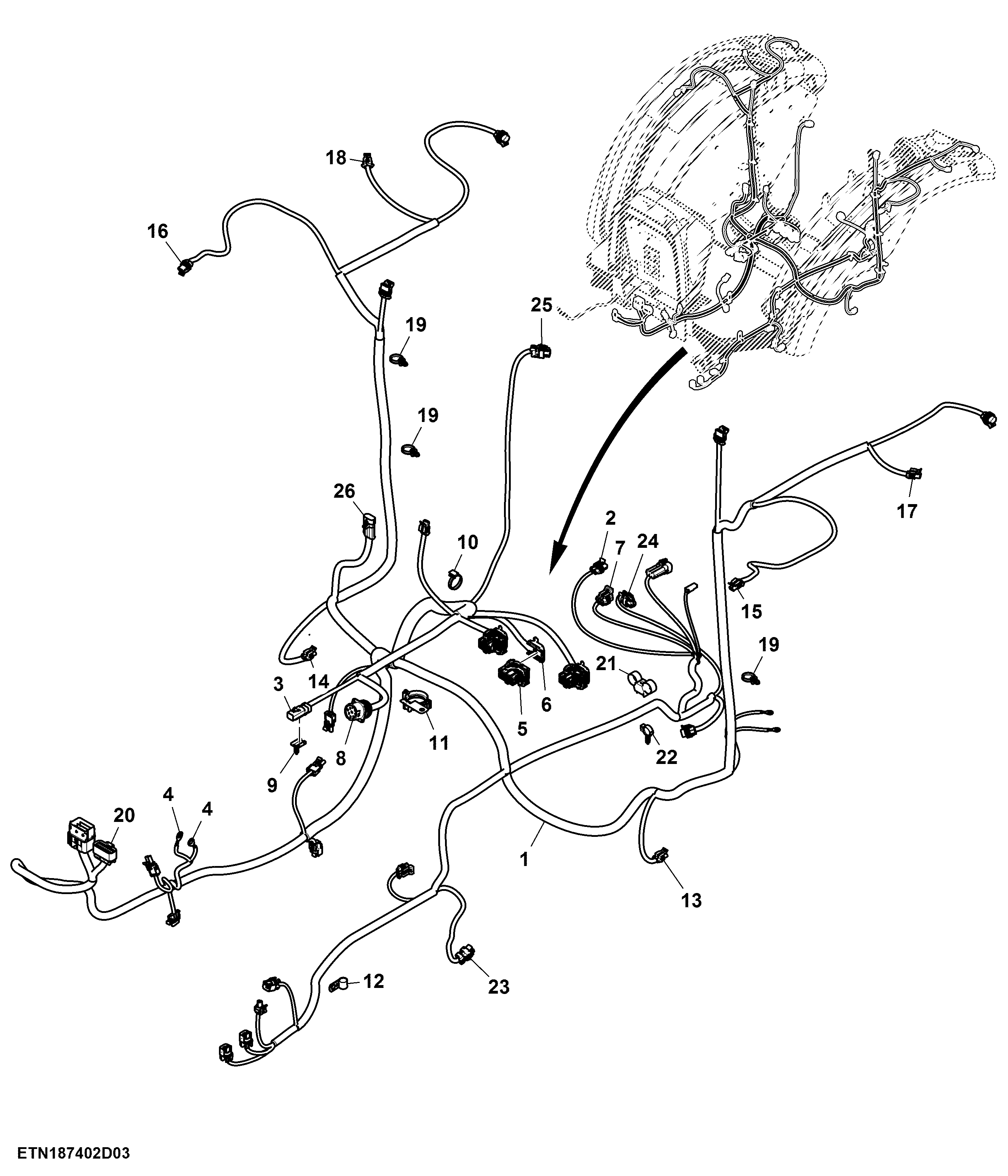

Platform Wiring Harness Connectors (2/3), PowrReverser™
