№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BSJ10537	1	Selective Control Valve	-
2	38H5018	2	Elbow Fitting	-
3	51M7045	10	O-Ring	19.300 X 2.200 mm
4	T77932	5	O-Ring	-
5	L209633	1	Plug	Dust
6	38H5192	1	Fitting	-
7	W42418	1	Plug	Red
8	15H666	1	Pipe Plug	3/8"
9	14M7299	2	Flange Nut	M12
10	38H5004	2	Adapter Fitting	-
11	SU55229	1	Bracket	Mid SCV
12	AW31998	4	Hyd. Quick-Connect Coupler	INCLUDES (4) AW33193 AND (4) 38H5092
12	AW33193	4	Seal Kit	-
13	38H5092	4	Nut	13/16"
14	T77857	8	O-Ring	-
15	W42417	1	Plug	Black
16	W42419	1	Plug	Yellow
17	SU55679	1	Hose Support	Mid SCV Cab
18	R128357	2	Pin Fastener	-
19	19M7790	2	Screw	M12 X 35
20	19M7835	2	Screw	M10 X 35
21	11M7009	2	Cotter Pin	2 X 16 mm
22	38H5027	4	Elbow Fitting	-
23	RE179201	1	Selective Control Valve	INCLUDES RE73109
23	RE73109	1	Seal Kit	-
24	RE222161	2	Valve Kit	-
25	RE62868	1	Fitting	-
26	R46702	1	Back-Up Ring	-
27	T77858	1	O-Ring	-
28	51M7047	1	O-Ring	23.600 X 2.900 mm
29	RE73110	2	Detent Kit	-
30	R26375	2	O-Ring	-
31	R116115	1	Fitting	-
32	R51603	4	O-Ring	-
33	19M8505	4	Screw	M6 X 25
34	SU55680	1	Hose Support	For Cab
35	14M7296	2	Flange Nut	M10
36	37M7356	1	Screw	-
37	R232632	1	Label	Loader Control Lever
38	R218365	1	Label	Joystick Lock
39	R208766	1	Shield	Joystick Cable RH
40	SJ291297	2	Cable	Joystick
41	R109390	2	Clamp	-
42	LVU16701	1	Grip	Outer
43	03M7189	1	Bolt	M8 X 45
44	37M7068	4	Screw	-
45	14M7298	3	Flange Nut	M8
46	LVA12162	2	Lock Nut	-
47	RE247968	1	Basic Control Unit	-
48	RE230264	1	Housing	-
49	RE249462	1	Control Lever	-
50	R230268	1	Boot	Joystick
51	R230269	1	Lever	Joystick Lock
52	R230281	2	Bushing	-
53	R230282	2	Piston	-
54	R230562	2	Screw	-
55	R236243	1	Compression Spring	-
56	R236244	1	Ball	-
57	24M7054	4	Washer	6.400 X 12 X 1.600 mm
58	21H1486	2	Screw	0.190" X 1-1/8"
59	99M7014	1	Plug	-
60	SJ34460	1	Bracket	Joystick Mounting
61	14M7233	3	Weld Nut	M8
62	19M9010	2	Screw	M6 X 55
63	37M7355	2	Screw	-
64	03M7187	2	Bolt	M8 X 35
65	SU303970	1	Boot	Joystick Cable
66	LVU16651	1	Grip	Inner
67	19M7866	3	Screw	M8 X 20
68	14M7303	2	Flange Nut	M6
69	R218827	1	Shield	Joystick Cable LH
70	SU58653	1	Label	Hose Placing Identification
71	SJ37205	2	Oil Line	Extend
72	SJ37206	2	Oil Line	Retract
73	SJ37351	1	Oil Line	Mid SCV, Pressure
74	SJ37353	1	Oil Line	Tank
75	SJ37352	1	Oil Line	Return
76	SU58951	2	Stud	-
77	19M8468	2	Screw	M16 X 25

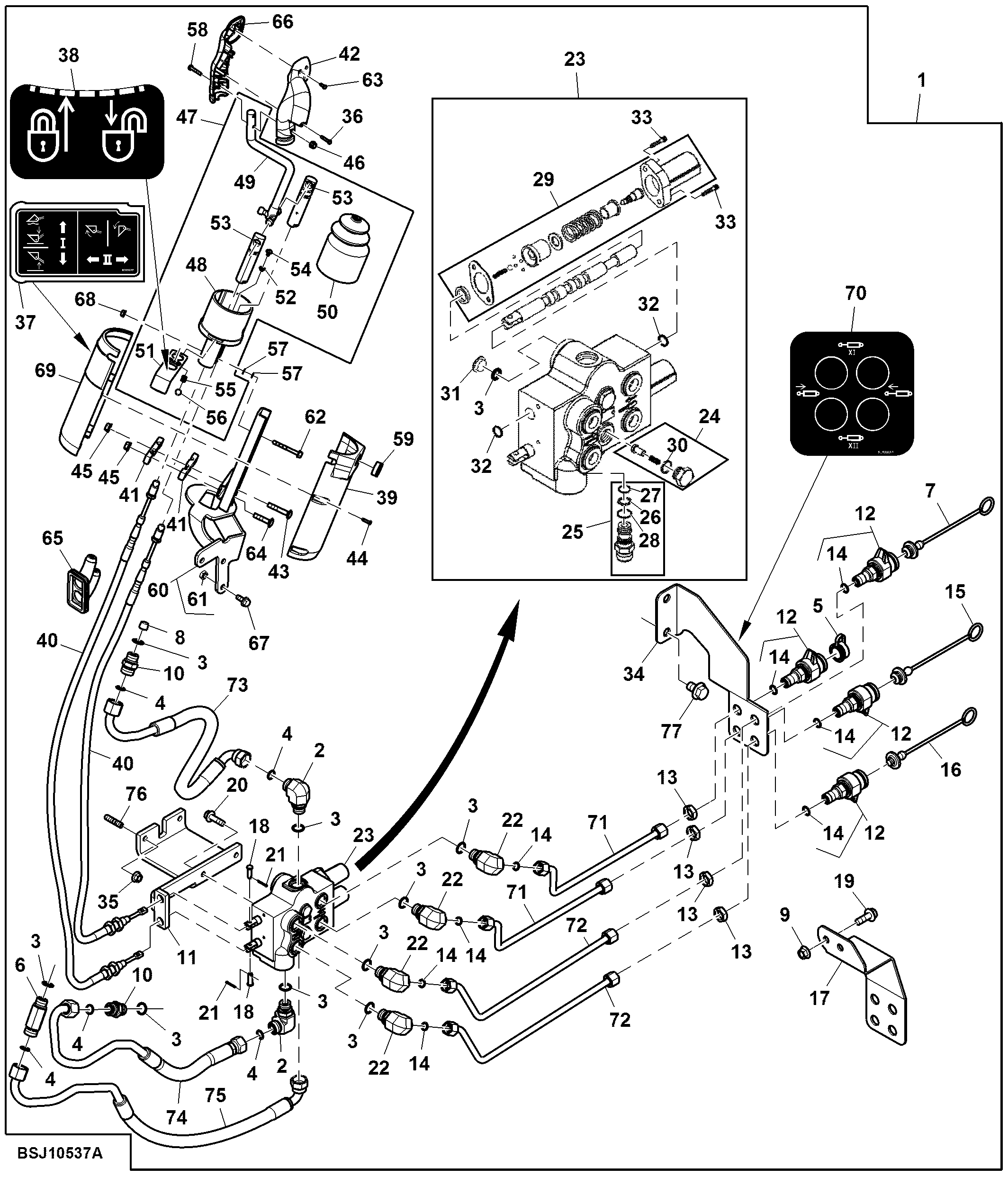

Dual Mid SCV W/ Joystick, W/O Stackable, Attachment
