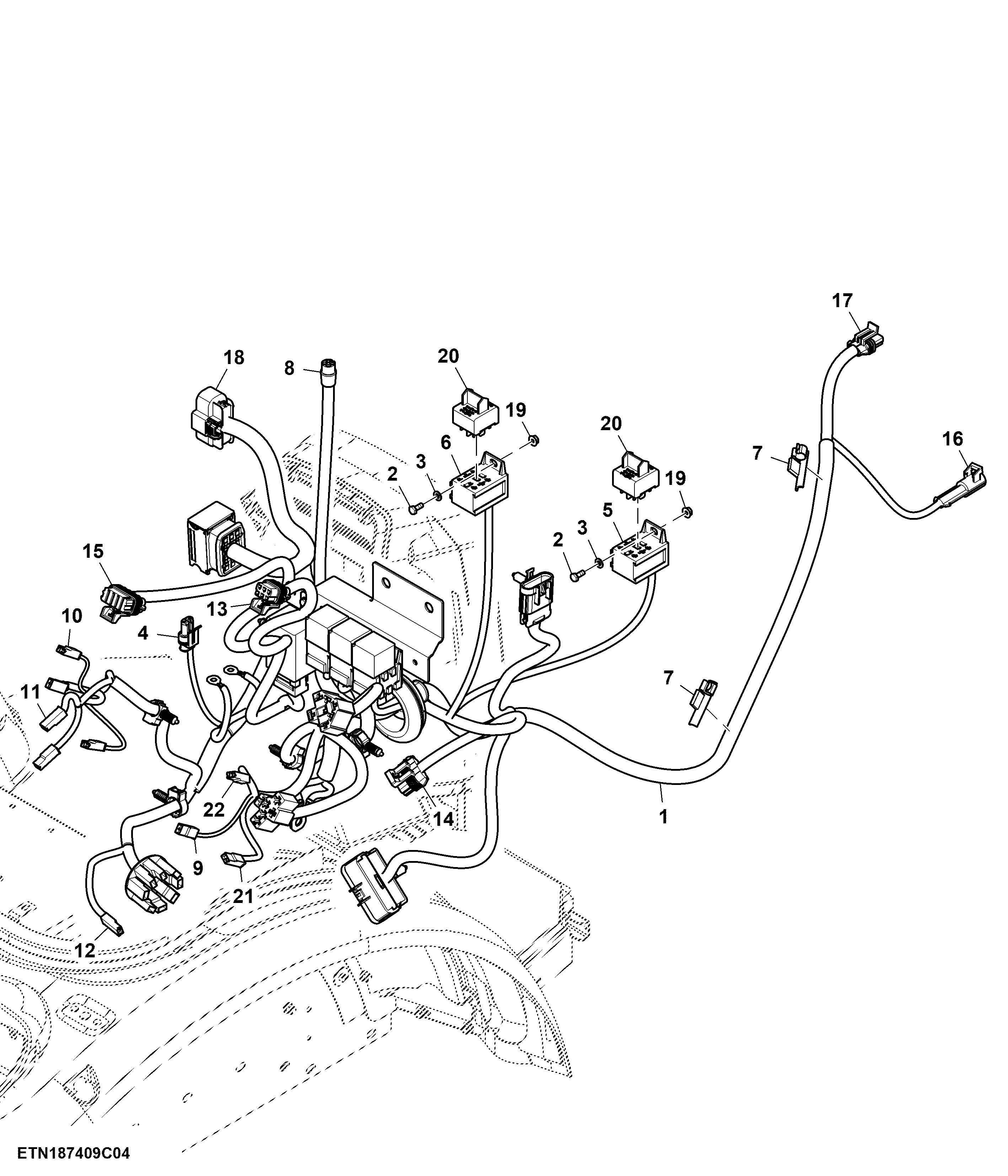

Console Wiring Harness Connectors (1/2), SyncShuttle™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ32931	1	Wiring Harness	-
2	19M7598	6	Cap Screw	M4 X 10
3	24M7117	6	Washer	4.300 X 9 X 0.800 mm
4	57M10497	1	Elec. Connector Housing	Starter Relay
5	57M10993	1	Elec. Connector Housing	Diode Module XV02
5	57M12740	2	Elec. Connector Terminal	Cavity A, C
5	RE262484	1	Diode	-
6	57M10993	1	Elec. Connector Housing	Diode Module Light System XV03
6	57M12740	5	Elec. Connector Terminal	Cavity A, B, C, D, E
6	RE262484	1	Diode	-
7	57M11168	2	Elec. Connector Accessory	-
8	57M11175	1	Elec. Connector Housing	Front Wiper Motor XM05
8	57M7162	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
9	57M7170	1	Elec. Connector Housing	High/Low Beam Switch XS24_1
9	57M7089	1	Elec. Connector Terminal	Cavity A
10	57M7170	1	Elec. Connector Housing	Turn Signal Switch XS03_2
10	57M7106	1	Elec. Connector Terminal	Cavity A
11	57M7089	1	Elec. Connector Terminal	Cavity A
11	57M7170	1	Elec. Connector Housing	Horn Switch XS05_1
12	57M7170	1	Elec. Connector Housing	Key Switch XS1_2
12	57M7106	1	Elec. Connector Terminal	Cavity A
13	57M7259	1	Elec. Connector Seal	Cavity F
13	57M7291	1	Electrical Connector Assy	-
13	57M9214	3	Elec. Connector Seal	Cavity C, D, E
13	57M7258	1	Elec. Connector Seal	Cavity B
13	57M9215	1	Elec. Connector Seal	Cavity A
13	57M9541	1	Elec. Connector Terminal	Cavity B
13	R104846	4	Elec. Connector Terminal	Cavity A, C, D, E
13	57M7260	1	Elec. Connector Housing	Instrument Cluster XA5_2
14	57M7261	1	Elec. Connector Housing	Brake Switch XS04
14	57M9541	2	Elec. Connector Terminal	Cavity A, B
14	57M7259	6	Elec. Connector Seal	Cavity C, D, E, F, G, H
14	57M7296	1	Elec. Connector Accessory	-
15	57M7494	5	Elec. Connector Terminal	Cavity B, E, F, G, J
15	57M8907	1	Elec.Connect Locking Device	-
15	57M7259	1	Elec. Connector Seal	Cavity K
15	57M9214	5	Elec. Connector Seal	Cavity B, E, F, G, J
15	R104846	4	Elec. Connector Terminal	Cavity A, C, D, H
15	57M7262	1	Elec. Connector Housing	Instrument Cluster XA5_1
15	57M9215	4	Elec. Connector Seal	Cavity A, C, D, H
16	57M7293	1	Elec. Connector Housing	Air Conditioner Compressor, 3-Cylinder XM04_1
16	57M7285	1	Elec. Connector Terminal	Cavity A
16	57M9549	1	Elec. Connector Seal	Cavity A
16	57M7295	2	Elec.Connect Locking Device	-
16	57M7294	1	Elec. Connector Housing	-
16	R78064	1	Elec. Connector Cavity Plug	-
17	57M9547	2	Elec. Connector Terminal	Cavity A, B
17	R78064	1	Elec. Connector Cavity Plug	-
17	57M7304	1	Elec. Connector Housing	-
17	57M7306	2	Elec.Connect Locking Device	-
17	57M9549	2	Elec. Connector Seal	Cavity A, B
17	57M7309	1	Elec. Connector Housing	Air Conditioner Compressor, 4-Cylinder XM04
18	57M12016	3	Elec. Connector Terminal	Cavity A, J, S
18	57M11996	1	Elec. Connector Accessory	-
18	57M9446	1	Elec. Connector Seal	Cavity D
18	57M8324	1	Elec. Connector Terminal	Cavity H
18	57M9223	3	Elec. Connector Seal	Cavity E, L, R
18	57M8321	3	Elec. Connector Terminal	Cavity D, F, M
18	57M8603	6	Elec. Connector Seal	Cavity B, C, G, K, N, P
18	57M8318	3	Elec. Connector Terminal	Cavity A, J, S
18	57M8304	1	Elec. Connector Terminal	Cavity H
18	57M8560	3	Elec. Connector Terminal	Cavity E, L, R
18	57M8602	6	Elec. Connector Terminal	Cavity B, C, G, K, N, P
18	57M8156	1	Elec. Connector Housing	Console to Cab Interconnect XXC_1
19	M136173	6	Lock Nut	-
20	RE262484	2	Diode	-
21	57M7170	1	Elec. Connector Housing	High/Low Beam Switch XS24_2
21	57M7106	1	Elec. Connector Terminal	Cavity A
22	57M7170	1	Elec. Connector Housing	High/Low Beam Switch XS24_3
22	57M7106	1	Elec. Connector Terminal	Cavity A

Console Wiring Harness Connectors (1/2), SyncShuttle™
