Открытый узел

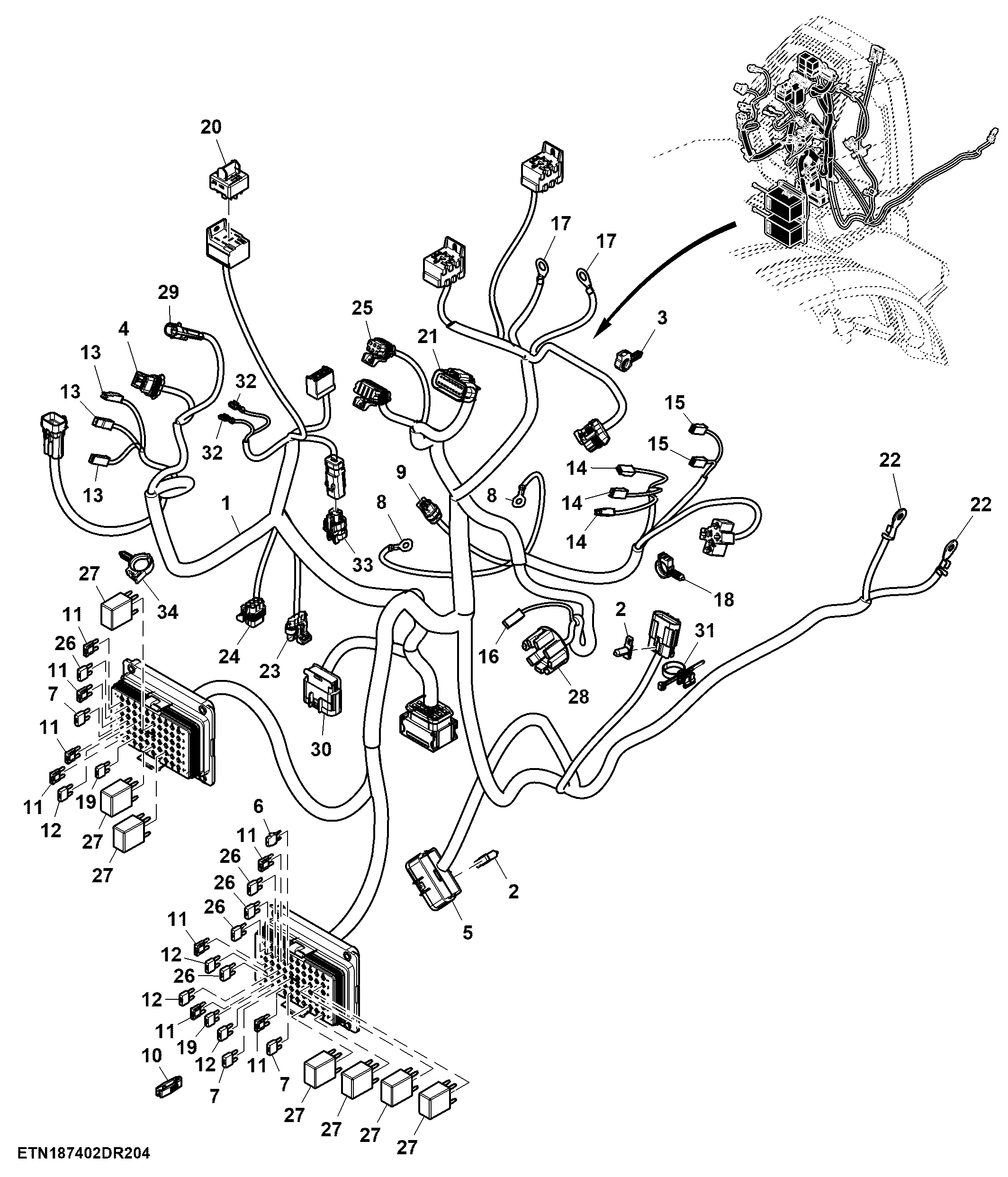

Console Wiring Harness Connectors (1/2), PowrReverser™, OOS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ35393	1	Wiring Harness	-
2	57M8910	2	Clip	-
3	57M8903	2	Clip	-
4	57M7255	1	Elec. Connector Housing	Power Shuttle Potentiometer XB06
4	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
4	57M9214	3	Elec. Connector Seal	Cavity A, B, C
4	57M7290	1	Elec. Connector Accessory	-
5	57M8322	4	Elec. Connector Terminal	Cavity B, C, G, K
5	57M11955	1	Elec. Connector Accessory	-
5	57M8329	8	Electrical Connector Assy	Cavity D, H, L, M, N, P, R, S
5	57M8324	1	Elec. Connector Terminal	Cavity E
5	57M8323	3	Elec. Connector Terminal	Cavity A, F, J
5	57M8309	3	Elec. Connector Terminal	Cavity A, E, J
5	57M8307	1	Elec. Connector Terminal	Cavity F
5	57M8306	4	Elec. Connector Terminal	Cavity B, C, G, K
5	57M8280	1	Elec. Connector Housing	Engine Interconnect XXE
6	AN205067	1	Diode	-
7	57M7689	3	Fuse	10 A
8	57M9196	2	Elec. Connector Terminal	Starter Relay XK2
9	57M10497	1	Elec. Connector Housing	Starter Relay
10	RE194287	1	Fuse Holder	-
11	57M7688	8	Fuse	5 A
12	57M8163	4	Fuse	30 A
13	57M7170	3	Elec. Connector Housing	Turn Signal Switch XS03
13	57M7089	2	Elec. Connector Terminal	Cavity A
13	57M7106	1	Elec. Connector Terminal	Cavity A
14	57M7170	3	Elec. Connector Housing	High/Low Beam Switch XS24
14	57M7089	2	Elec. Connector Terminal	Cavity A
14	57M7106	1	Elec. Connector Terminal	Cavity A
15	57M7170	2	Elec. Connector Housing	Horn Switch XS05
15	57M7089	2	Elec. Connector Terminal	Cavity A
16	57M7170	1	Elec. Connector Housing	Key Switch XS1_2
16	57M7106	1	Elec. Connector Terminal	Cavity A
17	57M14142	2	Elec. Connector Terminal	Platform Ground
18	57M8902	3	Clip	-
19	57M7691	2	Fuse	20 A
20	RE262484	1	Diode	Diode Module Light System XV03
20	57M12740	5	Elec. Connector Terminal	Cavity 2, 4, 5, 6, 8
21	57M8484	1	Elec. Connector Housing	Instrument Cluster XA1_4
21	57M9919	1	Elec. Connector Accessory	-
21	57M9446	11	Elec. Connector Seal	Cavity B, C, D, E, F, G, H, K, L, M, N
21	57M8300	1	Elec. Connector Terminal	Cavity P
21	57M9223	5	Elec. Connector Seal	Cavity A, J, P, R, S
21	57M8299	4	Elec. Connector Terminal	Cavity A, J, R, S
22	57M8901	2	Elec. Connector Terminal	Cab Power
23	57M7840	1	Elec. Connector Housing	XS07
23	57M7469	1	Electrical Connector Assy	-
24	57M7260	1	Elec. Connector Housing	Clutch Assembly XB05
24	57M7494	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
24	57M9214	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
24	57M7291	1	Electrical Connector Assy	-
25	57M7260	1	Elec. Connector Housing	Instrument Cluster XA1_2
25	57M10770	4	Elec. Connector Terminal	Cavity A, B, D, E
25	57M9215	1	Elec. Connector Seal	Cavity A
25	57M9214	3	Elec. Connector Seal	Cavity B, D, E
25	57M9215	2	Elec. Connector Seal	Cavity C, F
25	57M7291	1	Electrical Connector Assy	-
26	57M7690	5	Fuse	15 A
27	57M9880	7	Relay	-
28	57M7106	5	Elec. Connector Terminal	Cavity ACC, BAT1, ELX, IGN, ST
28	L78202	1	Elec. Connector Housing	Key Switch XS1_1
29	57M7985	1	Electrical Connector Assy	Roll Mode Switch XS15
29	57M9546	2	Elec. Connector Terminal	Cavity A, B
29	57M9214	2	Elec. Connector Seal	Cavity A, B
29	57M7289	1	Elec.Connect Locking Device	-
30	57M9539	10	Elec. Connector Terminal	Cavity A, B, F, G, H, L, M, N, P, R
30	57M9919	1	Elec. Connector Accessory	-
30	57M9446	1	Elec. Connector Seal	Cavity S
30	57M8321	2	Elec. Connector Terminal	Cavity J, K
30	57M9223	10	Elec. Connector Seal	Cavity A, B, F, G, H, L, M, N, P, R
30	57M8301	2	Elec. Connector Terminal	Cavity J, K
30	57M10717	1	Elec. Connector Housing	Console Interconnect XXC_1
31	AH225365	1	Clip	-
32	57M8996	2	Elec. Connector Terminal	Audible Alarm XH2
33	57M11134	1	Elec. Connector Housing	-
34	57M8908	1	Clip	-

Console Wiring Harness Connectors (1/2), PowrReverser™, OOS

Нет текстового описания
