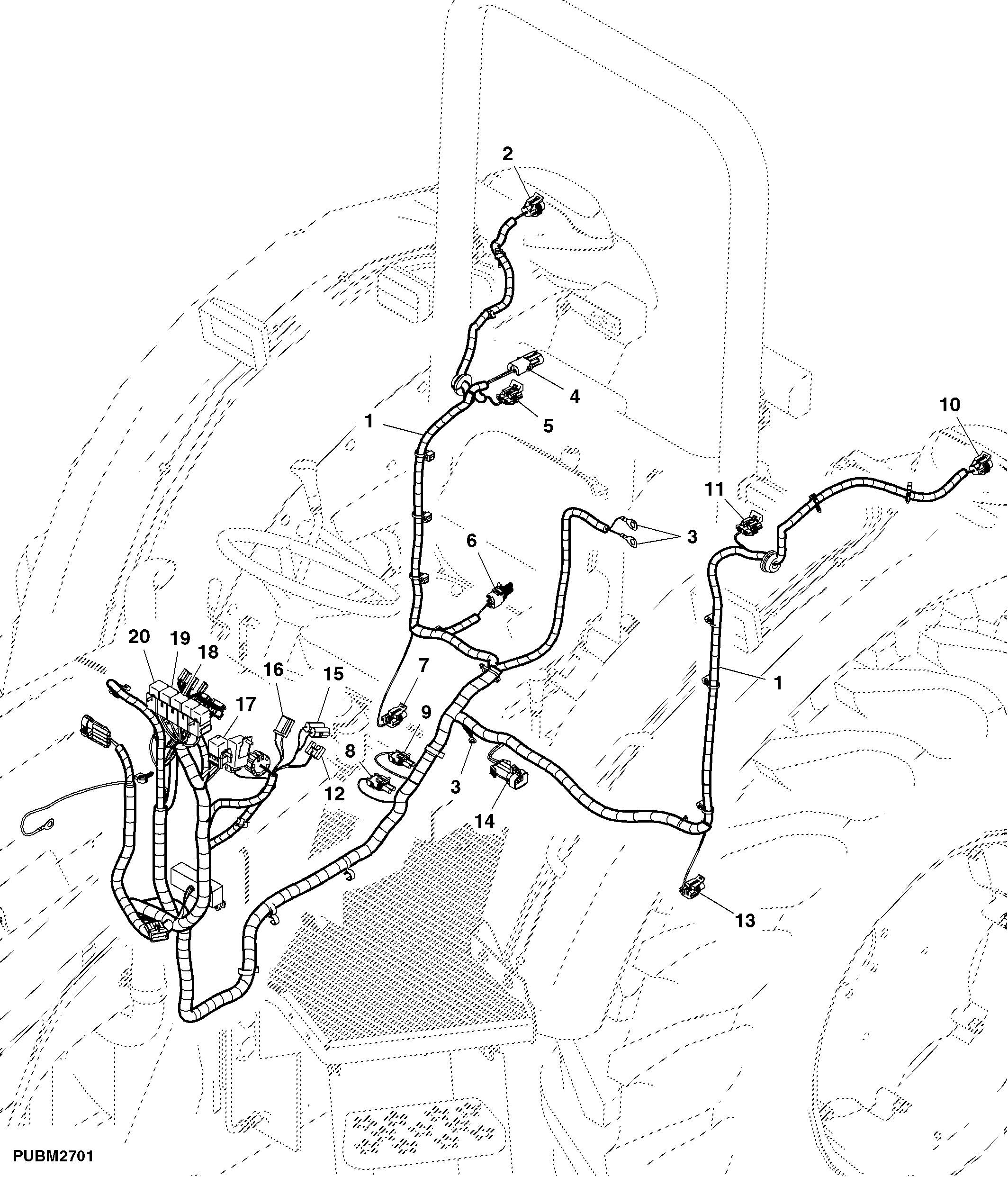

Platform Wiring Harness (1/2) ( - 004611)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ13963	1	Wiring Harness	-
2	57M7349	1	Elec. Connector Accessory	(Tail/Turn/Brake Light) RH, REAR
2	57M7347	1	Elec. Connector Accessory	-
3	57M7348	3	Elec. Connector Terminal	-
4	R78053	1	Electrical Connector Assy	(Light Backup)
5	57M7255	1	Elec. Connector Housing	(Turn Light) RH, FRONT
5	57M7290	1	Elec. Connector Accessory	-
6	RE12363	1	Electrical Connector Assy	(Backup Alarm)
7	57M7254	1	Elec. Connector Housing	(Flood lights) RH, REAR
7	57M7289	1	Elec.Connect Locking Device	-
8	RE12363	1	Electrical Connector Assy	(Speed Sensor Reverse)
9	RE12363	1	Electrical Connector Assy	(Start Safety Switch)
10	57M7347	1	Elec. Connector Accessory	-
10	57M7349	1	Elec. Connector Accessory	(Tail/Turn/Brake Light) LH, REAR
11	57M7255	1	Elec. Connector Housing	(Turn Light) LH, FRONT
11	57M7290	1	Elec. Connector Accessory	-
12	57M7183	1	Elec. Connector Accessory	-
13	57M7254	1	Elec. Connector Housing	(Flood lights) LH, REAR
13	57M7289	1	Elec.Connect Locking Device	-
14	57M7263	1	Elec. Connector Housing	(Rear PTO switch)
14	57M7291	1	Electrical Connector Assy	-
15	57M8815	1	Elec. Connector Housing	(Hazard Lights)
16	57M8815	1	Elec. Connector Housing	(Horn switch)
17	RE39967	1	Diode	-
18	RE68327	1	Relay	(Flood Lamp Relay)
19	RE68327	1	Relay	(Tail/Position Light Relay)
20	RE68327	1	Relay	(Fuel Shut Off Relay)

Platform Wiring Harness (1/2) ( - 004611)

Нет текстового описания
