Открытый узел

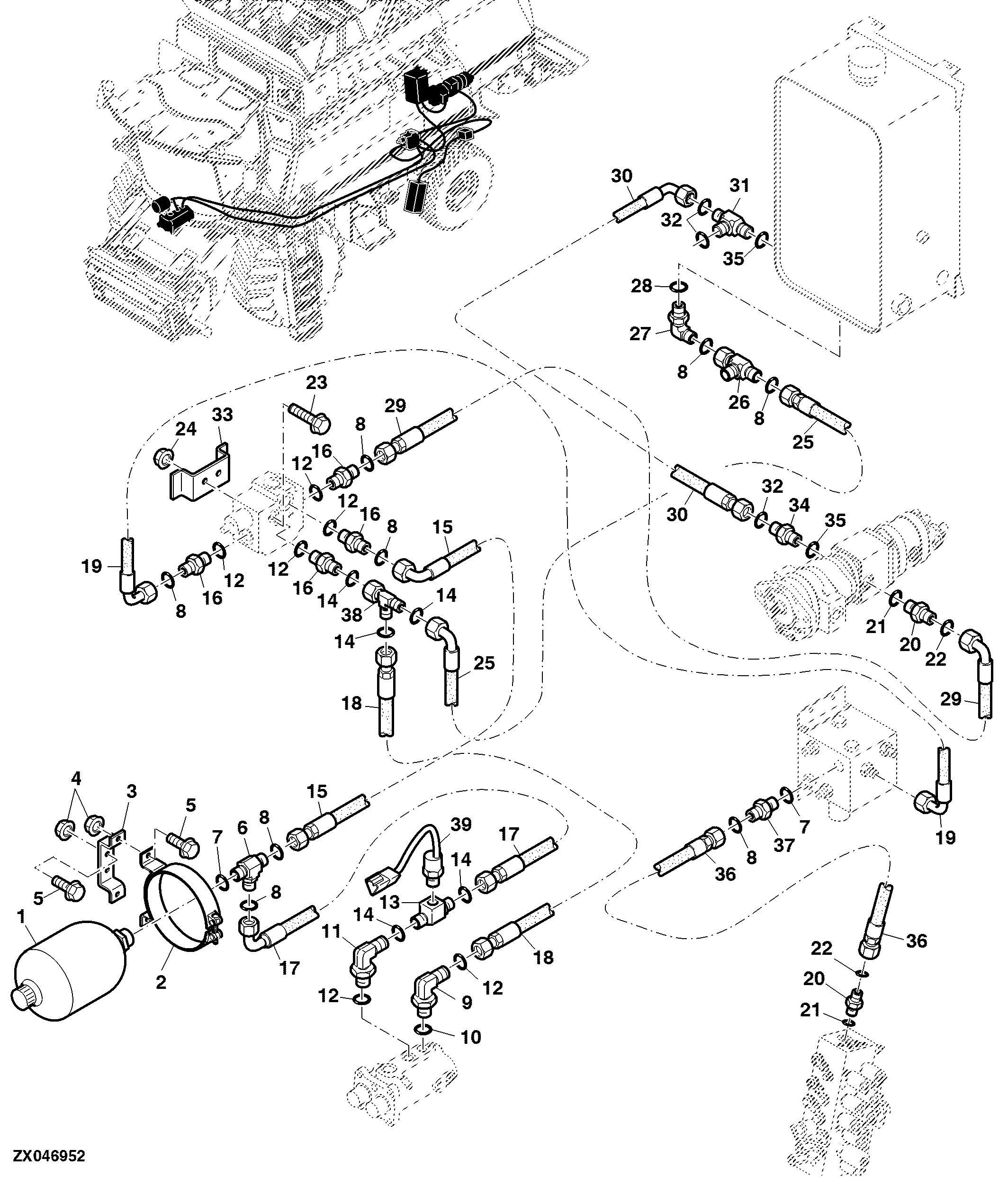

Hillmaster Connections, Accumulator Charge Valve

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AZ71652	1	Hydraulic Accumulator	(For Hillmaster)
2	AZ71653	1	Clamp	(For Hillmaster)
3	Z104238	1	Bracket	(For Hillmaster)
4	14M7298	1	Flange Nut	(For Hillmaster) M8
5	19M7866	1	Screw	(For Hillmaster) M8 X 20
6	38H1024	1	Tee Fitting	(For Hillmaster)
7	R26375	1	O-Ring	(For Hillmaster)
8	T77857	1	O-Ring	(For Hillmaster)
9	38H5027	1	Elbow Fitting	(For Hillmaster)
10	51M7043	1	O-Ring	(For Hillmaster) 15.300 X 2.200 mm
11	38H5026	1	Elbow Fitting	(For Hillmaster)
12	51M7043	1	O-Ring	(For Hillmaster) 15.300 X 2.200 mm
13	AH207279	1	Tee Fitting	(For Hillmaster)
14	T77613	1	O-Ring	(For Hillmaster)
15	AZ103206	1	Hydraulic Hose	(For Hillmaster)
16	38H5003	1	Adapter Fitting	(For Hillmaster)
17	AXE18591	1	Hydraulic Hose	(For Hillmaster)
18	AZ103208	1	Hydraulic Hose	(For Hillmaster)
19	AZ104131	1	Hydraulic Hose	(For Hillmaster)
20	38H1162	1	Adapter Fitting	(For Hillmaster)
21	R26906	1	O-Ring	(For Hillmaster)
22	T77932	1	O-Ring	(For Hillmaster)
23	19M8071	2	Screw	(For Hillmaster) M6 X 65
24	14M7303	2	Flange Nut	(For Hillmaster) M6
25	AZ103209	1	Hydraulic Hose	(For Hillmaster)
26	38H5069	1	Tee Fitting	(For Four - Wheel Drive) (For Hillmaster)
27	38H1314	1	Elbow Fitting	(For Hillmaster)
28	R26448	1	O-Ring	(For Hillmaster)
29	AZ103203	1	Hydraulic Hose	(For Hillmaster)
30	AZ103219	1	Hydraulic Hose	(For Hillmaster)
31	38H1027	1	Tee Fitting	(For Hillmaster)
32	T76938	1	O-Ring	(For Hillmaster)
33	Z104237	1	Bracket	(For Hillmaster)
34	38H1164	1	Adapter Fitting	(For Hillmaster)
35	R29936	1	O-Ring	(For Hillmaster)
36	AXE25305	1	Hydraulic Hose	(For Hillmaster) SUB FOR AZ101988
37	38H1161	1	Adapter Fitting	(For Hillmaster)
38	38H1030	1	Tee Fitting	(For Hillmaster)
39	RE272647	1	Trans Oil Pressure Sensor	(For Hillmaster)
40	38H1030	1	Tee Fitting	(For Hillmaster)

Hillmaster Connections, Accumulator Charge Valve

Нет текстового описания
