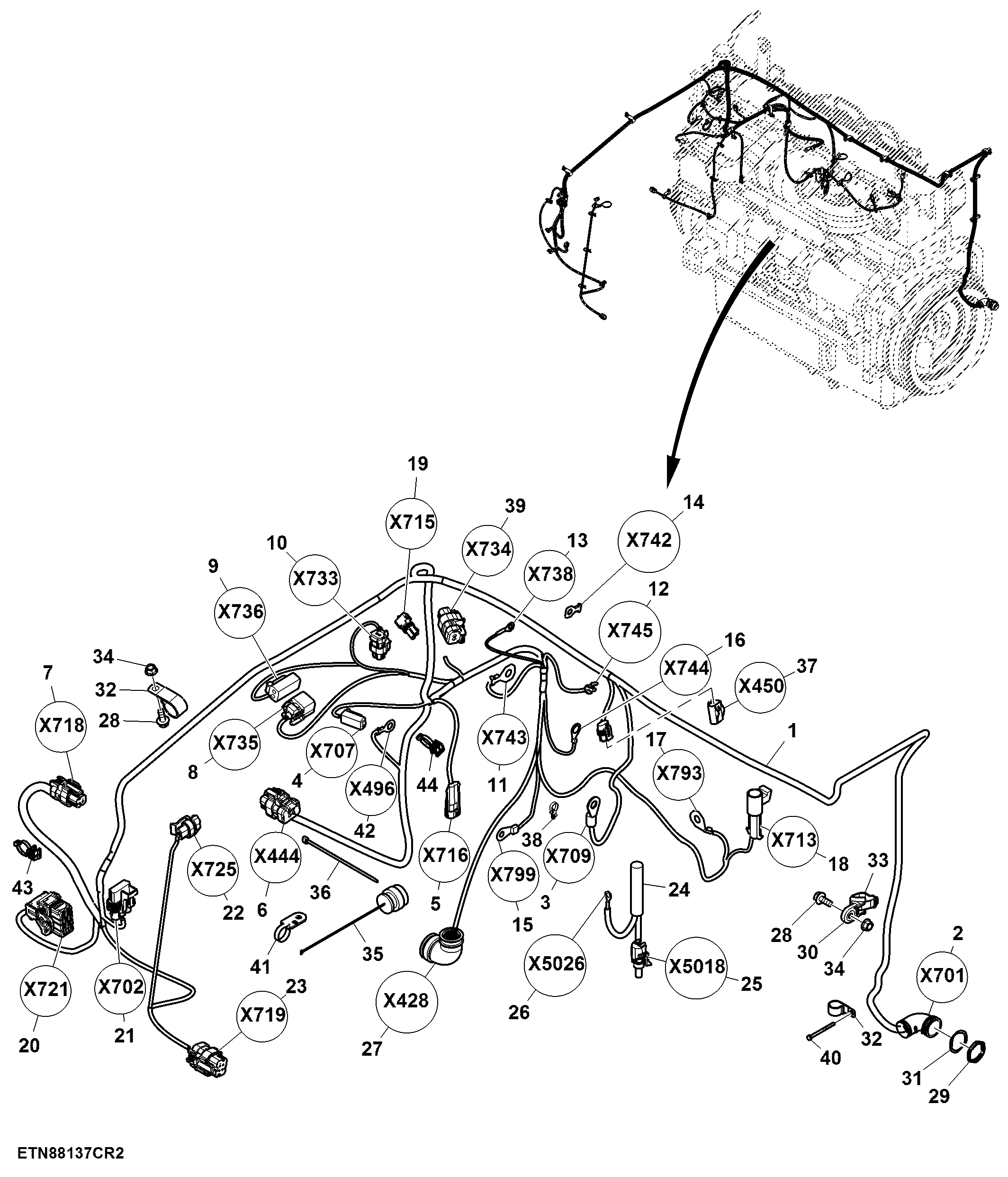

Engine Wiring Harness - Tier 2 and Tier 3

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE41426	1	Wiring Harness	-
2	57M9512	1	Elec. Connector Housing	ORDER WITH (5) N282069, (7) 57M9812, (6) 57M9810, (3) 57M10603, (2) 57M8164, 57M8704
3	57M10534	1	Elec. Connector Terminal	-
4	57M10517	1	Elec. Connector Housing	ORDER WITH (2) 57M7546, 57M8022, 57M10530, AZ50831
5	57M7256	1	Elec. Connector Housing	ORDER WITH 57M5946, (2) 57M7493, (2) 57M9712, 57M7254
6	57M9817	1	Elec. Connector Housing	ORDER WITH (4) 57M9808
7	57M9773	2	Elec. Connector Housing	ORDER WITH (2) 57M9808, 57M9837
8	57M11378	1	Elec. Connector Housing	ORDER WITH (2) 57M8603, (2) 57M8602
9	57M10517	1	Elec. Connector Housing	ORDER WITH (2) 57M9526, 57M8022, 57M10530
10	57M9773	1	Elec. Connector Housing	ORDER WITH 57M9808, 57M10321
11	57M8866	1	Elec. Connector Terminal	-
13	57M8875	1	Elec. Connector Terminal	-
14	57M8867	1	Elec. Connector Terminal	-
15	57M8867	1	Elec. Connector Terminal	-
16	57M8290	1	Elec. Connector Terminal	-
17	57M9540	1	Elec. Connector Terminal	-
18	57M7293	1	Elec. Connector Housing	ORDER WITH 57M7268, 57M7527, 57M7295
19	RE12363	1	Electrical Connector Assy	ORDER WITH (2) 57M7368, (2) 57M9543
20	57M8527	1	Elec. Connector Housing	ORDER WITH (7) 57M10488, (7) 57M9184, 57M8529
21	57M7280	1	Elec. Connector Housing	ORDER WITH (3) 57M7268, (3) 57M7491, 57M7274
22	57M7254	1	Elec. Connector Housing	ORDER WITH (2) 57M7493, (2) 57M9541, 57M9712
23	57M9772	1	Elec. Connector Housing	ORDER WITH (2) 57M10321 , 57M9837
24	AXE17012	1	Wiring Harness	-
25	RE12362	1	Electrical Connector Assy	ORDER WITH 57M7883, 57M9218, 57M10421
26	57M8888	1	Elec. Connector Terminal	-
27	57M9656	1	Elec. Connector Terminal	ORDER WITH 57M8569, 57M10485
28	19M7866	1	Screw	M8 X 20
29	57M8035	1	Nut	-
30	H224072	2	Clamp	-
31	57M9061	1	Elec.Connect Locking Device	-
32	AH90990	1	Clip	-
33	H224073	2	Tie Band	-
34	14M7298	1	Flange Nut	M8
35	AZ51100	1	Elec. Connector Accessory	-
36	R44302	2	Tie Band	-
37	57M8487	1	Electrical Connector Cap	-
37	57M10321	1	Elec. Connector Terminal	-
37	57M7121	1	Fuse	-
37	57M8267	1	Elec. Connector Housing	-
38	57M10233	2	Tie Band	-
39	57M9773	1	Elec. Connector Housing	-
39	57M10321	2	Elec. Connector Terminal	-
39	57M9837	1	Elec. Connector Accessory	-
40	19M7763	1	Cap Screw	M6 X 75
41	57M10528	4	Elec. Connector Accessory	-
42	57M9535	1	Elec. Connector Terminal	-
43	AH225365	3	Clip	-
44	AH225366	2	Clip	-
67	-	1	Part 49	-

Engine Wiring Harness - Tier 2 and Tier 3

Нет текстового описания
