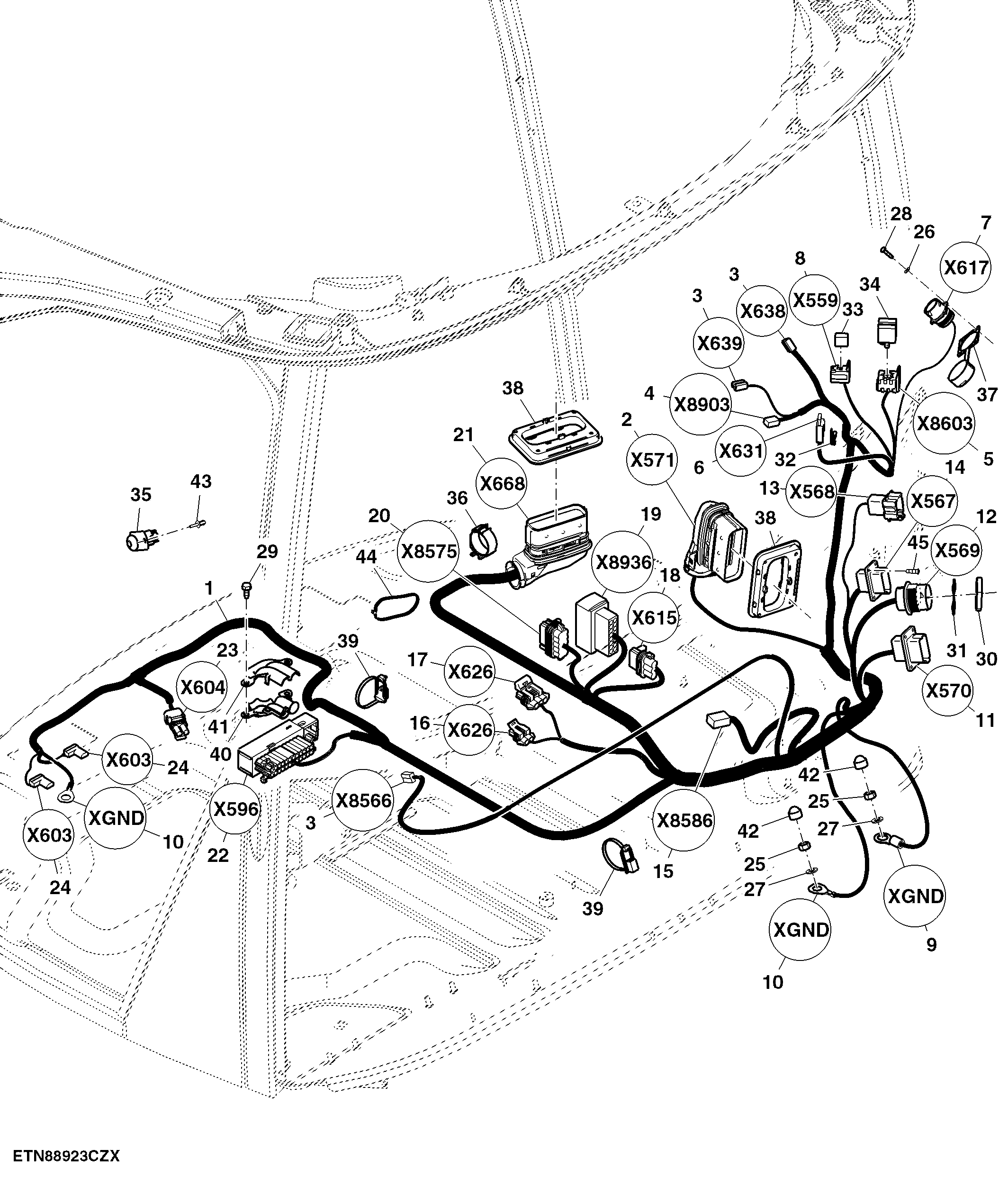

CAB Main Wiring Harness

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL214421	1	Cab Wiring Harness	SUB FOR AL206977
2	57M8738	1	Elec. Connector Accessory	(Ord W/ 57M8731, (15) 57M10556, (20) 57M9159, (4) 57M7351, 57M9042, (17) 57M8241, (21) 57M7401, (18) 57M7402, (4) 57M7399, 57M8734)
3	57M7065	3	Elec. Connector Housing	(Ord W/ (2) 57M7431)
4	57M10439	1	Elec. Connector Housing	(Ord W/ (5) 57M10443)
5	ET15766	1	Elec. Connector Housing	(Ord W/ (2) 57M7514)
6	57M7125	1	Fuse	(Ord W/ 57M7508, 57M7507, 57M8829)
7	57M7919	1	Elec. Connector Housing	(Ord W/ (4) 57M8164, (5) Z78008)
8	Z61311	1	Elec. Connector Housing	(Ord W/ (2) 57M7103, 57M7185, Z61304)
9	57M7175	2	Elec. Connector Terminal	-
10	57M7348	2	Elec. Connector Terminal	-
10	57M7348	1	Elec. Connector Terminal	-
11	57M7682	1	Elec.Connect Locking Device	(Ord W/ (7) 57M8164, (4) 57M9525, R78069)
12	57M8461	1	Elec. Connector Housing	(Ord W/ 57M8562, (7) R78068)
13	57M7680	1	Elec. Connector Terminal	(Ord W/ 57M9031, (4) 57M8164, (4) Z78008)
14	57M7682	1	Elec.Connect Locking Device	(Ord W/ 57M10438, (6) R78069, 57M9525, (5) 57M8164)
15	F015262	1	Electrical Connector Assy	(Ord W/ (7) F013785)
16	57M7289	1	Elec.Connect Locking Device	(Ord W/ 57M7328, (2) 57M9920, (2) 57M7493)
17	57M7290	1	Elec. Connector Accessory	(Ord W/ 57M7255, (3) 57M7493, R104846, (2) 57M9541)
18	57M7274	1	Elec. Connector Accessory	(Ord W/ 57M7280, (2) 57M7299, (2) 57M9217, 57M9218, 57M7298)
19	57M8083	1	Elec. Connector Accessory	(Ord W/ 58M8072, (7) 57M7400, (2) 57M7399, (4) 57M9146, (3) 57M9532, 57M8079)
20	57M7281	1	Elec.Connect Locking Device	(Ord W/ 57M7262, (2) 57M7290, (4) R104846, (4) 57M7259, (6) 57M7377)
21	57M8738	1	Elec. Connector Accessory	(Ord W/ 57M8731, (26) 57M10556, (14) 57M9159, (6) 57M7351, (20) 57M8241, (16) 57M7401, (19) 57M7402, (6) 57M7399)
22	57M8084	1	Elec. Connector Accessory	(Ord W/ 57M8944, (13) 57M7400, (4) 57M7399, (10) 57M9146, (6) 57M8079, (3) 57M9532)
23	RE12363	1	Electrical Connector Assy	(Ord W/ (2) R78060, (2) 57M9219)
24	57M7984	2	Elec. Connector Terminal	(Ord W/ 57M8024)
25	14M7273	2	Nut	M8
26	24M7029	4	Shim	TK =0.500 mm
27	24M7055	2	Washer	8.400 X 16 X 1.600 mm
28	37M7095	4	Screw	-
29	37M7459	2	Screw	M6 X 20
30	57M8428	1	Electrical Connector Assy	-
31	57M9062	1	Elec.Connect Locking Device	-
32	57M9413	1	Clip	-
33	AL152098	1	Diode Holder	-
34	AL159759	1	Audible Warning Alarm	-
35	AL172328	1	Switch	-
36	L209624	4	Clamp	-
37	L156796	1	Plug	-
38	L170145	2	Holder	-
39	L171122	17	Tie Band	-
40	L207678	1	Channel	-
41	L207680	1	Channel	-
42	L32394	2	Cap	-
43	L39134	4	Rivet	-
44	Z34568	1	Clamp	-
45	M93511	12	Screw	-
