Тип техники

Бренд

Машина

Открытый узел

60 Steering, Brakes, Rear Axle Combine T670 - MY14

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Rear Axle Support	-
-	-	1	Steering Valve, Standard Axle W/ AutoTrac™	-
-	-	1	Steering Valve, AutoTrac™, Attachment	-
-	-	1	Steering Valve Combine, Standard Axle W/O AutoTrac™	-
-	-	1	Steering Tie Rods	-
-	-	1	Steering Pump Mounting Plug	-
-	-	1	Steering Hoses and Lines	-
-	-	1	Steering Cylinder	-
-	-	1	Secondary Brake, Park Brake	-
-	-	1	Rear Wheels	-
-	-	1	Rear Axle, Adjustable	-
-	-	1	Automatic Trailer Hitch	-
-	-	1	Rear Axle Spindles, Heavy Duty	-
-	-	1	Park Brake Cover Plate	-
-	-	1	Master Brake Cylinder Yoke and Pushrod, ProDrive™	-
-	-	1	Master Brake Cylinder Yoke and Pushrod W/O ProDrive™	-
-	-	1	Hydraulic Steering Hoses, Upper And Attenuator	-
-	-	1	Hydraulic Component, Steering, AutoTrac™	-
-	-	1	Brake Pedals Assembly	-
-	-	1	Brake Lines, Master Cylinder and Reservoir	-
-	-	1	Brake Cable Support Bracket	-

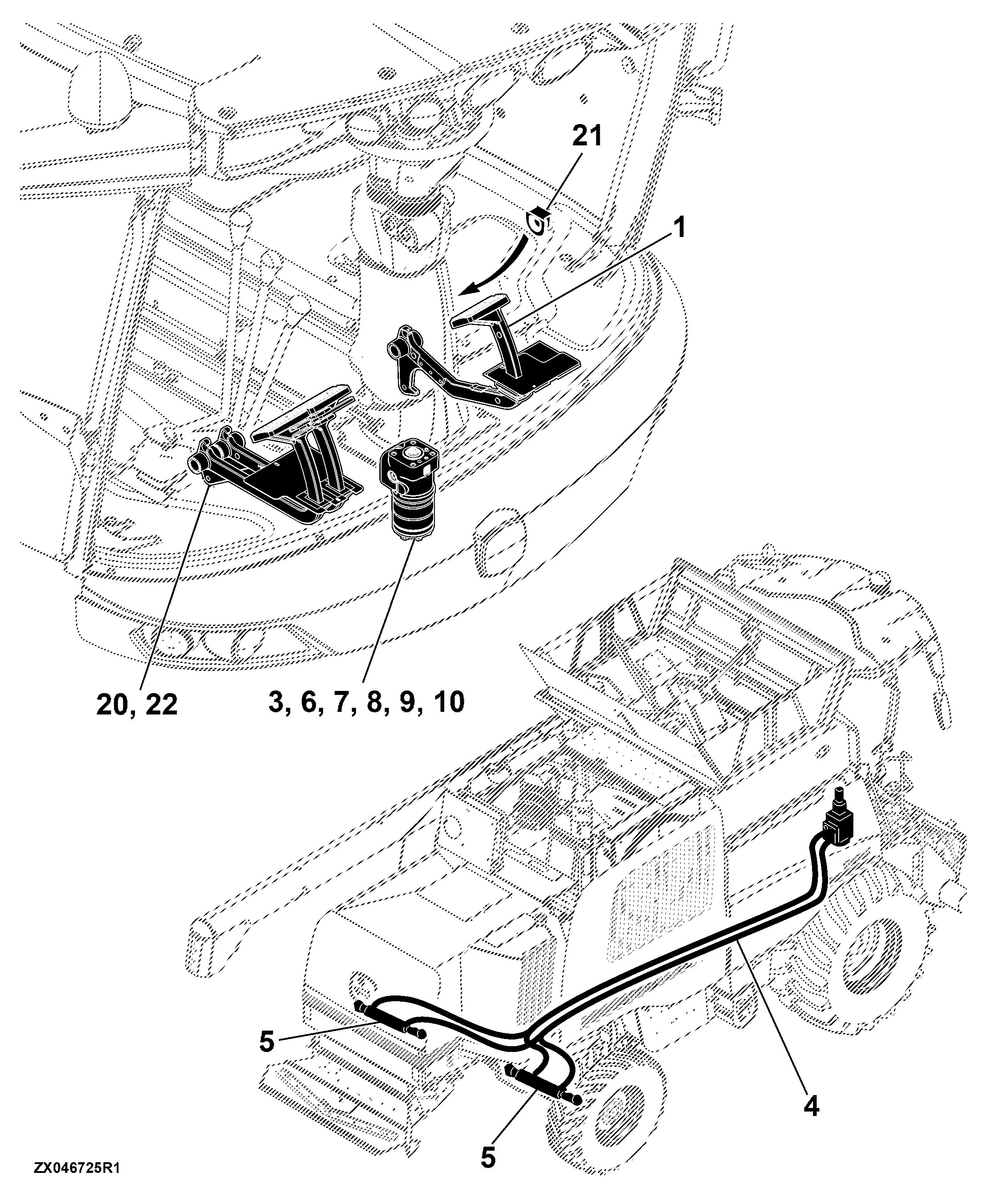

60 Steering, Brakes, Rear Axle Combine T670 - MY14

Нет текстового описания
