31 Engine Auxiliaries, Tank, Air System T670 - For Engine 6090HZ007 - Engine 6090HZ003 - MY14

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Fuel Tank (800 Liter) And Fittings	-
-	-	1	Torsional Damper	-
-	-	1	Shroud and Radiator Hose	-
-	-	1	Rotary Screen Drive	-
-	-	1	Rotary Screen Door and Screen	-
-	-	1	Radiator and Intercooler	-
-	-	1	Primary Fuel Filter	-
-	-	1	Oil Drain Hose, Interim Tier 4	-
-	-	1	Muffler and Exhaust Pipe	-
-	-	1	Jackshaft, Rotary Screen Drive	-
-	-	1	Intercooler Hoses	-
-	-	1	Idler Arms, Rotary Screen Drive	-
-	-	1	Heater Hoses	-
-	-	1	Fuel Tank and Fittings, 800 L	-
-	-	1	Air Cleaner And Intake Tubes, Long Filter, Interim Tier 4	-
-	-	1	Fuel Lines And Fuel Tank Ventilation - IT4	-
-	-	1	Fuel Lines And Connections	-
-	-	1	Fuel Line, S2	-
-	-	1	Fuel Filter, 800 L Tank, Optional	-
-	-	1	Fuel Cooler And Connections - IT4	-
-	-	1	Front Engine and Fan Drives	-
-	-	1	Frame, Cooling Package, 9L Engine	-
-	-	1	Expansion Tank Hoses	-
-	-	1	Expansion Tank	-
-	-	1	Engine Mounting and Support Brackets	-
-	-	1	Cooling Fan	-
-	-	1	Air Intake Duct, Interim Tier 4	-
-	-	1	Air Intake Aspiration Hose	-

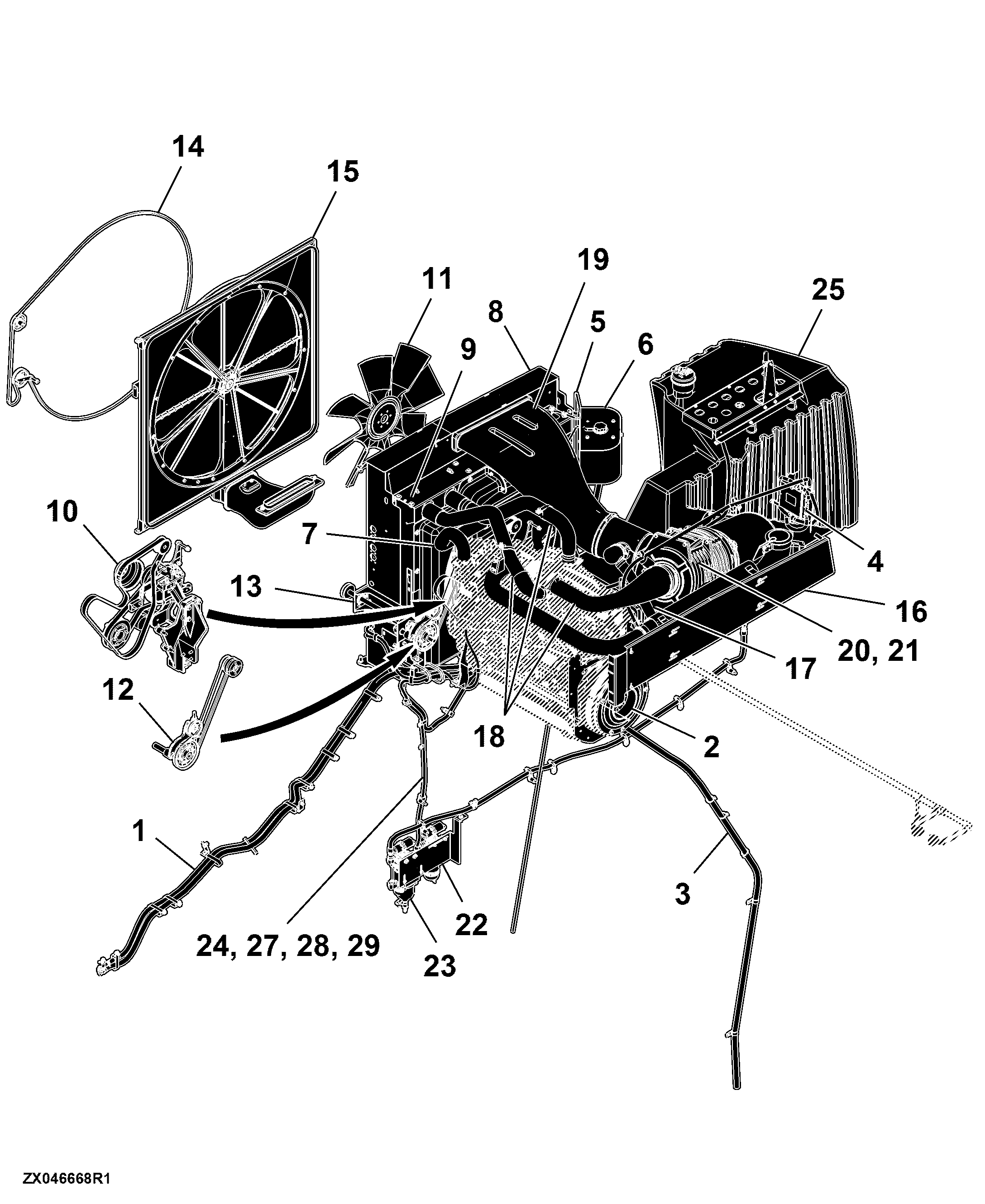

31 Engine Auxiliaries, Tank, Air System T670 - For Engine 6090HZ007 - Engine 6090HZ003 - MY14

Нет текстового описания
