Открытый узел

30 Engine Auxiliaries, Tank, Air System, IT4 T670 - For Engine 6090HZ011 -MY14

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Jackshaft Drive, Rotary Screen, Interim Tier 4	-
-	-	1	Expansion Tank Hoses, Interim Tier 4	-
-	-	1	Expansion Tank, Interim Tier 4	-
-	-	1	Fan Drive, Interim Tier 4 ( - 094131)	-
-	-	1	Fan Drive, Interim Tier 4 (094132 - )	-
-	-	1	Fan, Cooling, Interim Tier 4	-
-	-	1	Front Engine Drives, Interim Tier 4	-
-	-	1	Fuel Filter, 800 L Tank, Optional	-
-	-	1	Fuel Line, Interim Tier 4	-
-	-	1	Fuel Tank and Fittings, 800 L	-
-	-	1	Heater Hoses, Interim Tier 4	-
-	-	1	Exhaust Support Brackets, Interim Tier 4	-
-	-	1	Oil Drain Hose, Interim Tier 4	-
-	-	1	Outlet Exhaust Pipe, Interim Tier 4	-
-	-	1	Outlet Exhaust Pipe, Interim Tier 4 (For Foldable Auger)	-
-	-	1	Primary Fuel Filter	-
-	-	1	Rotary Screen Door and Screen, Interim Tier 4	-
-	-	1	Rotary Screen Drive, Interim Tier 4	-
-	-	1	Shroud and Radiator Hoses, Interim Tier 4	-
-	-	1	Torsional Damper	-
-	-	1	Vapor Condensers and Fuel Cooler, Interim Tier 4	-
-	-	1	Cooling Package Seal, Interim Tier 4	-
-	-	1	Air Intake and Intercooler Hoses, Interim Tier 4	-
-	-	1	Air Intake Aspiration Hoses, Interim Tier 4	-
-	-	1	Air Intake Duct, 9L	-
-	-	1	Air Intake Duct, Interim Tier 4	-
-	-	1	Blade, Cooling Core Propeller, Interim Tier 4	-
-	-	1	Blower Fan and Vacuum Fan, Interim Tier 4	-
-	-	1	Brackets, DOC and DPF, Interim Tier 4 ( - 094131)	-
-	-	1	Brackets, DOC and DPF, Interim Tier 4 (094132 - )	-
-	-	1	Coolant Heater	-
-	-	1	Cooling Package Frame, Interim Tier 4	-
-	-	1	Air Cleaner And Intake Tubes, Long Filter, Interim Tier 4	-
-	-	1	Cooling Package, Interim Tier 4	-
-	-	1	DOC and DPF Sensors, Exhaust System, Interim Tier 4 ( - 094131)	-
-	-	1	DOC and DPF Sensors, Exhaust System, Interim Tier 4 (094132 - )	-
-	-	1	Drive, Blower Fan, Interim Tier 4	-
-	-	1	Engine Coolant Heater, 110 V	-
-	-	1	Engine Fan Drive Sheave Assembly and Shaft Kit	-
-	-	1	Engine Mounting / Support Brackets, Interim Tier 4	-
-	-	1	Exhaust Pipe, From Turbocharger, Interim Tier 4	-
-	-	1	Exhaust Pipe, From Turbocharger, Interim Tier 4	-

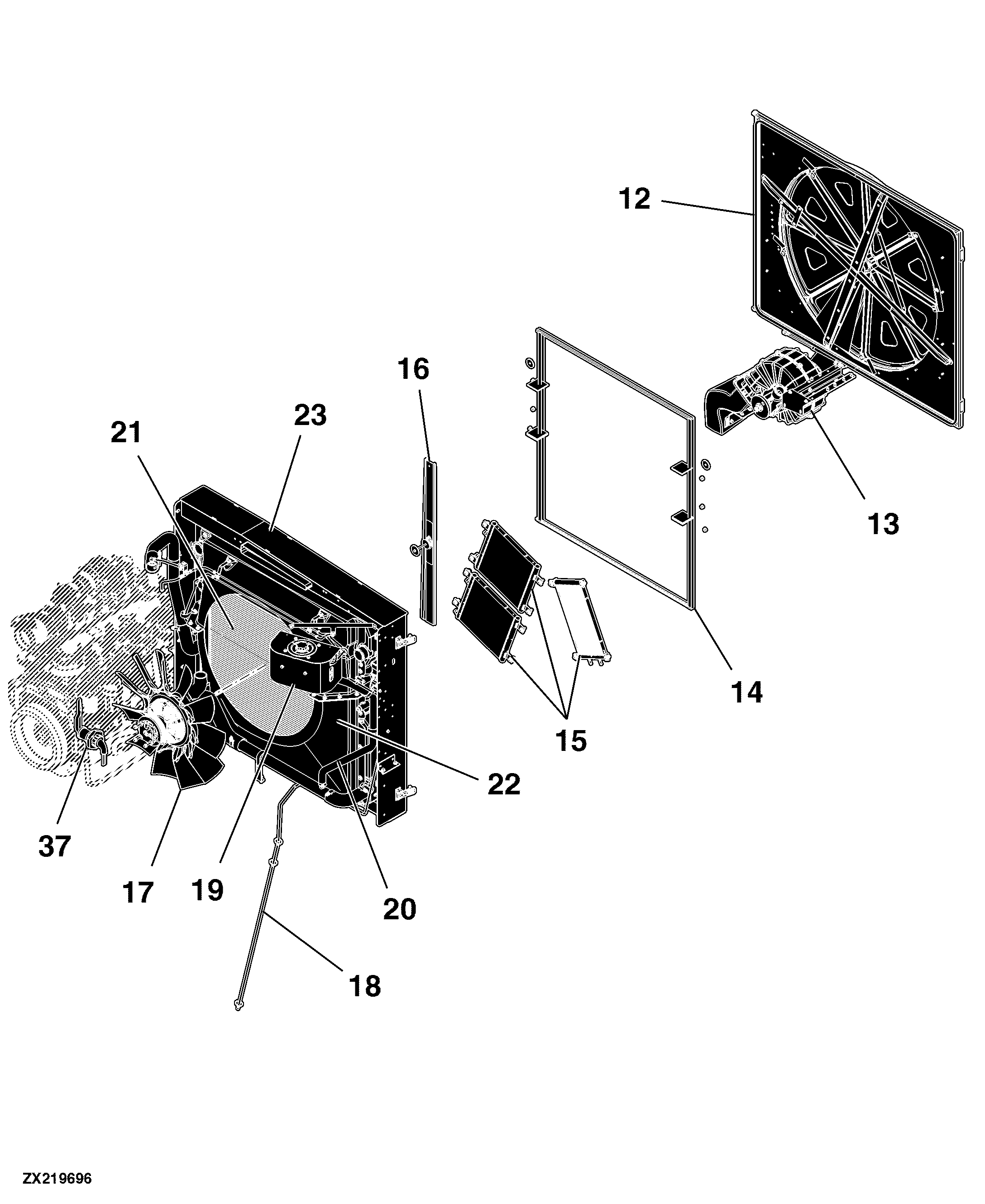

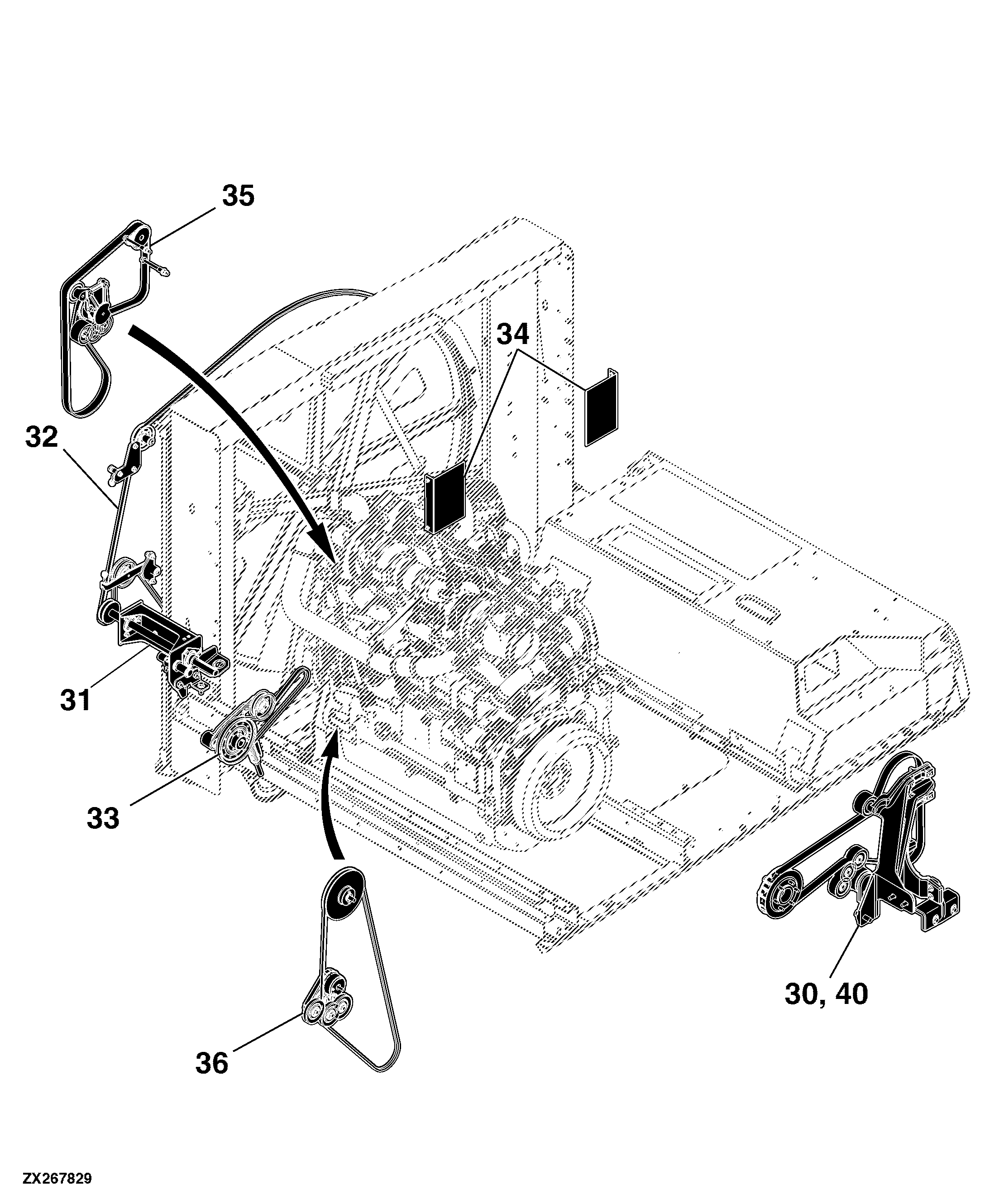

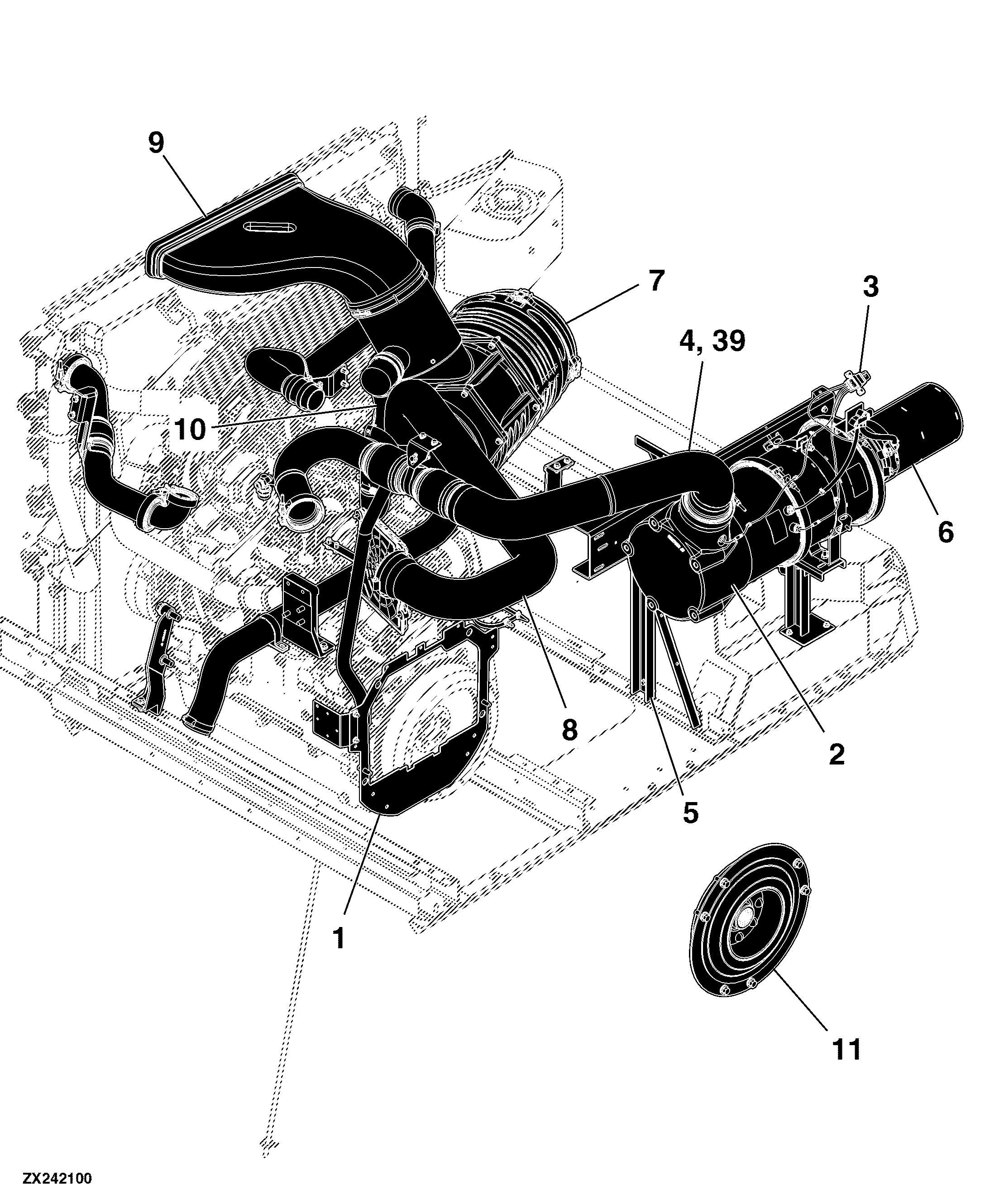

30 Engine Auxiliaries, Tank, Air System, IT4 T670 - For Engine 6090HZ011 -MY14
