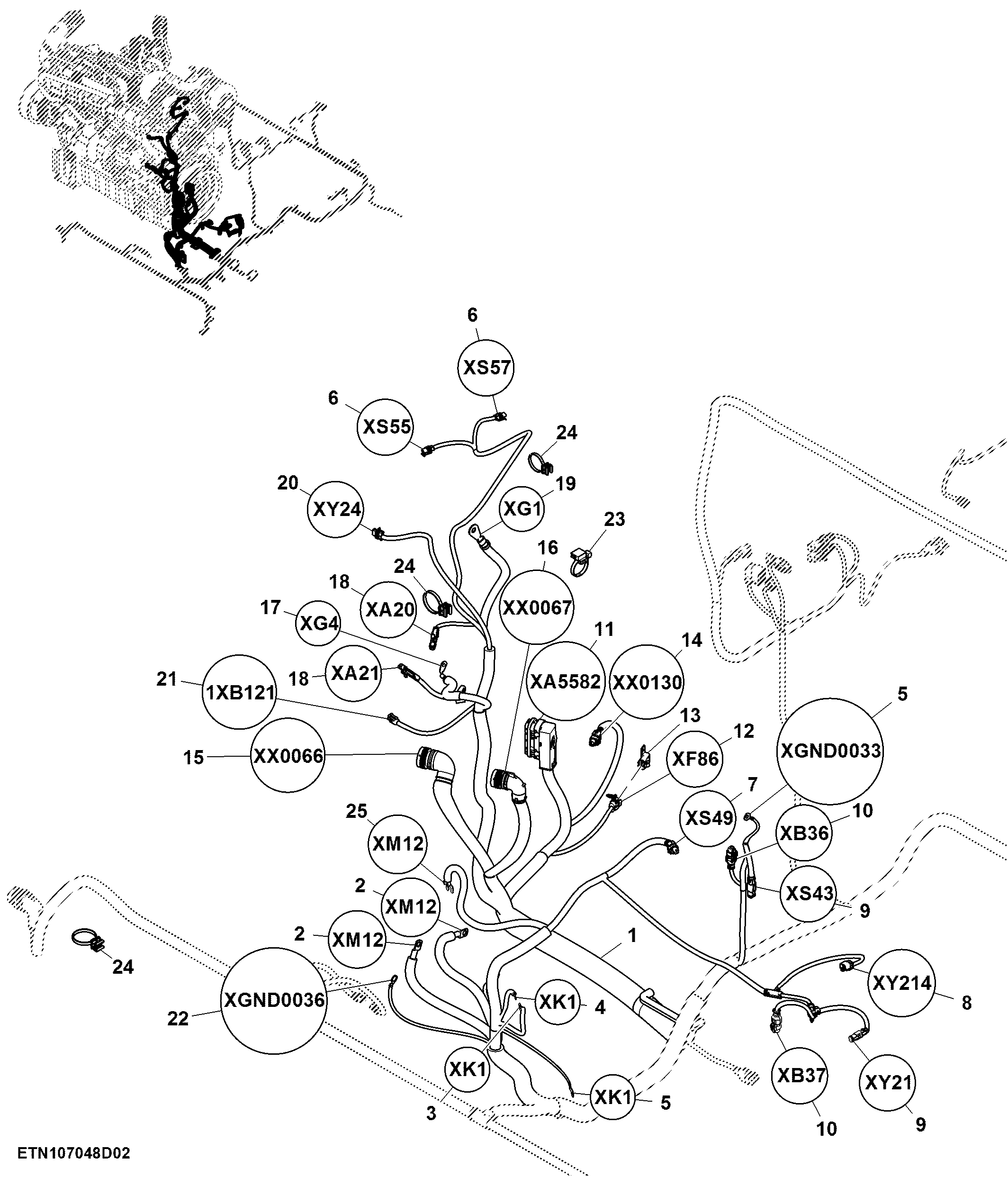

Engine Wiring Harness, Final Tier 4 (2 of 2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE49214	1	Wiring Harness	ORDER AXE54895
2	57M11441	2	Elec. Connector Terminal	-
3	57M8866	1	Elec. Connector Terminal	USE WITH AXE49214
3	57M8867	1	Elec. Connector Terminal	USE WITH AXE54895
4	57M8875	1	Elec. Connector Terminal	-
5	57M8867	1	Elec. Connector Terminal	-
6	57M10497	2	Elec. Connector Housing	ORDER W/ (2) 57M10770, 57M9214 AND 57M9556
7	57M9773	1	Elec. Connector Housing	ORDER W/ (2) 57M9808 AND 57M9837
8	57M8924	1	Elec. Connector Housing	ORDER W/ (2) 57M8300, (2) 57M8321 AND 57M11380
9	57M10517	1	Elec. Connector Housing	OREDER W/ (2) 57M8165, 57M8022 AND 57M10337
10	57M9773	1	Elec. Connector Housing	ORDER W/ (2) 57M9809, 57M9837
11	RE538505	1	Elec. Connector Accessory	ORDER W/ (3) 57M9808, (5) 57M10319, (3) 57M10321, (16) 57M10336 AND R528122
12	57M8267	1	Elec. Connector Housing	ORDER W/ (2) R104571, 57M9555, 57M7121 AND 57M8487
13	57M8487	1	Electrical Connector Cap	-
14	57M9774	2	Elec. Connector Housing	ORDER W/ (2) 57M10663 AND 57M9837
15	57M9514	1	Elec. Connector Housing	ORDER W/ (2) 57M9526, (13) 57M8165, R78069 AND 57M9227
16	57M11358	1	Elec. Connector Housing	-
17	57M10534	1	Elec. Connector Terminal	-
18	R78052	2	Electrical Connector Assy	ORDER W/ 57M9219
19	57M9548	1	Elec. Connector Terminal	-
20	57M7309	1	Elec. Connector Housing	ORDER W/ (2) 57M7491, (2) 57M9218 AND 57M10477
21	57M8924	1	Elec. Connector Housing	ORDER (2) 57M8560, (2) 57M8566 AND 57M11380
22	57M10244	1	Elec. Connector Terminal	-
23	57M11237	1	Clip Kit	-
24	AH225363	1	Clip	-
25	-	1	Part 26	-

Engine Wiring Harness, Final Tier 4 (2 of 2)

Нет текстового описания
