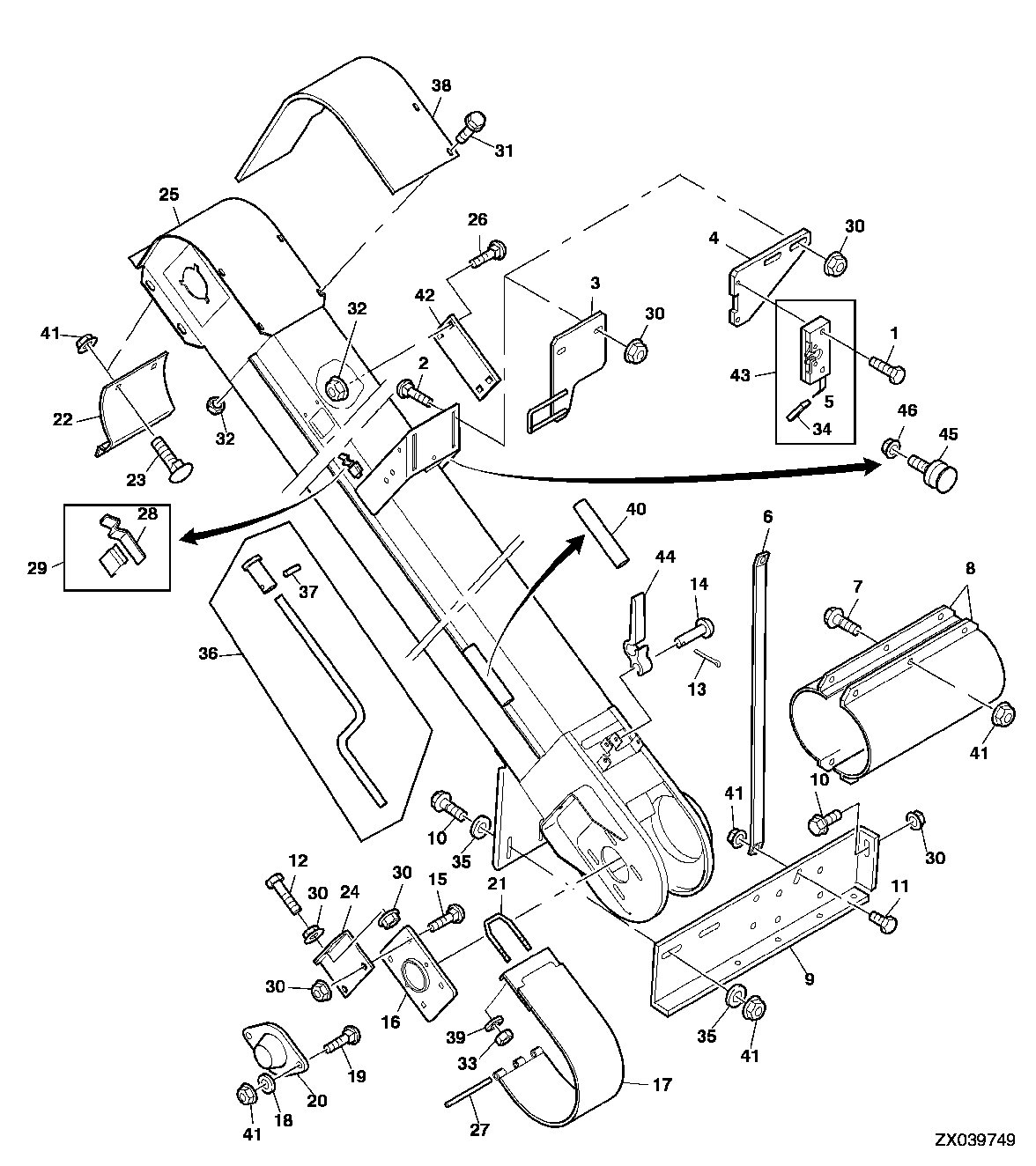

Tailings Elevator Housing And Supports, For CommandCenter Order AZ102517

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7796	2	Screw	(FOR NORTH AMERICA ONLY) M6 X 30
2	03M7190	2	Bolt	M10 X 20
3	AZ65132	1	Bracket	-
4	H169652	1	Plate	(FOR NORTH AMERICA ONLY) LGTH 210 MM
4	Z102668	1	Plate	(FOR NORTH AMERICA ONLY) LGTH 220 MM
5	AH167030	1	Latch	(FOR NORTH AMERICA ONLY)
6	H146536	1	Support	-
7	19M7866	6	Screw	M8 X 20
8	Z78380	2	Housing	-
8	Z79732	2	Housing	(FOR PEAS)
9	Z75495	1	Support	-
10	19M7785	1	Screw	M10 X 25
11	19M7865	1	Screw	M8 X 16
12	19M8241	1	Cap Screw	M10 X 100
13	11M7081	1	Cotter Pin	2.500 X 20 mm
14	RV810A	1	Pin Fastener	-
15	03M7193	1	Bolt	M10 X 35
16	H152916	1	Pressed Flanged Housing	-
17	AZ64038	1	Door	-
17	AZ65301	1	Door	(FOR PEAS)
18	Z36140	2	Washer	-
19	03M7184	2	Bolt	M8 X 20
20	H155968	1	Cover	-
21	H128877	1	U-Bolt	-
22	Z100444	1	Deflector	(Sub For H147846)
23	03M7183	2	Bolt	M8 X 16
24	H152914	1	Angle	-
25	AZ103231	1	Elevator	-
25	AZ102517	1	Elevator	(Incl H157745, 14M7039)
25	AZ63413	1	Elevator	Incl Key 29
26	03M7221	1	Bolt	M6 X 16
27	H165676	1	Pin	-
28	H157746	1	Holder	-
29	AH159239	1	Clip	-
30	14M7296	1	Flange Nut	M10
31	19M7775	1	Screw	M6 X 16
32	14M7303	1	Flange Nut	M6
33	14M7396	2	Lock Nut	M8
34	H169865	1	Cap	(FOR NORTH AMERICA ONLY)
35	24M7241	2	Washer	(FOR GRAIN) 17 X 34 X 4 mm
35	24M7207	2	Washer	(FOR RICE) 8.400 X 24 X 2 mm
36	AH149543	1	Crank	(WITH MANUAL SHOE ADJUST)
37	34M7027	1	Spring Pin	4 X 20 mm
38	H152097	1	Shield	-
39	24M7139	1	Washer	6.400 X 18 X 1.600 mm
40	H157745	1	Tube	-
41	14M7298	1	Flange Nut	M8
42	H168019	2	Cover	-
43	AH167031	1	Latch	(FOR NORTH AMERICA ONLY)
44	H161342	1	Lever	-
45	Z104102	1	Nut	-
46	14M7140	1	Nut	M10

Tailings Elevator Housing And Supports, For CommandCenter Order AZ102517
