Открытый узел

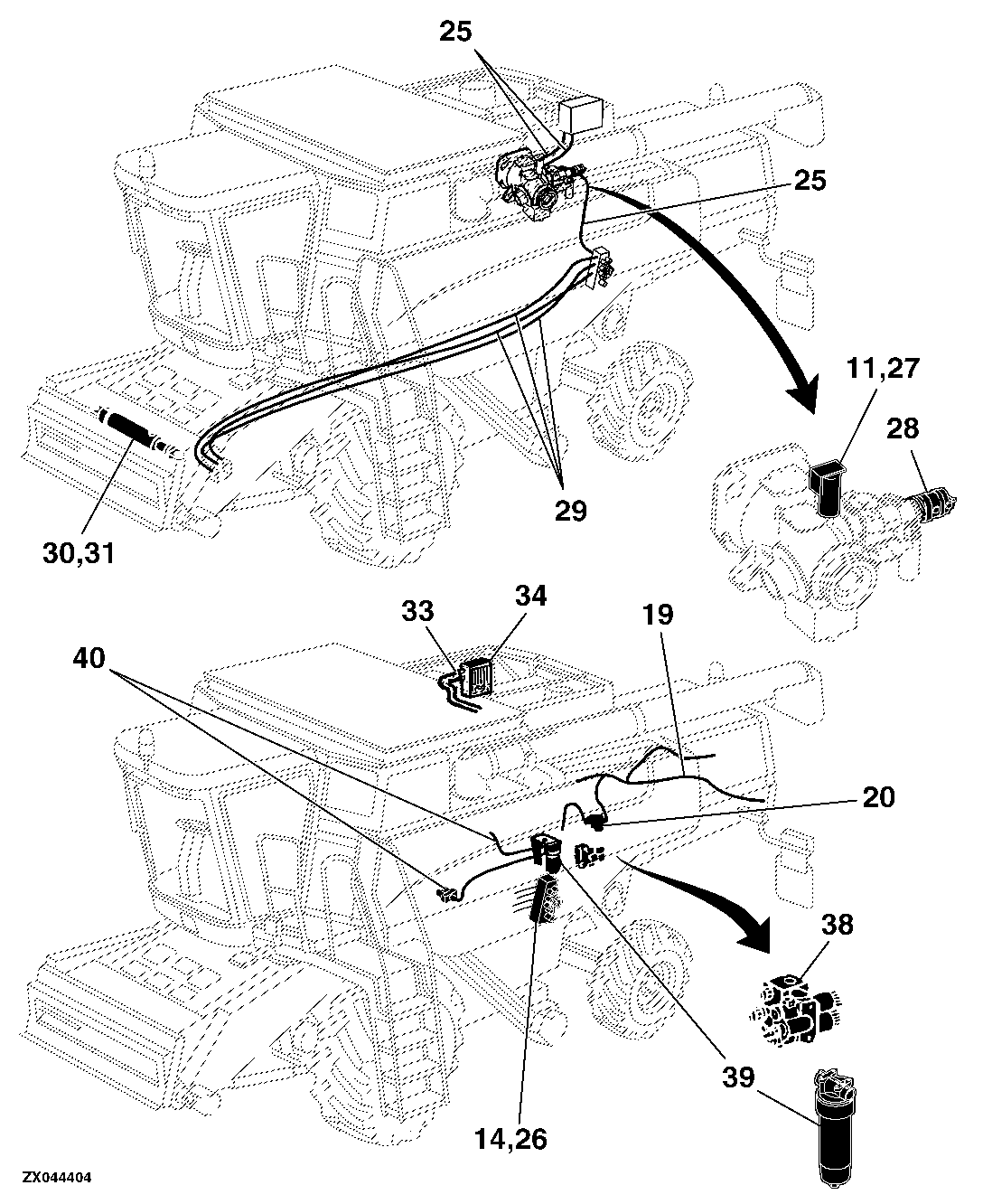

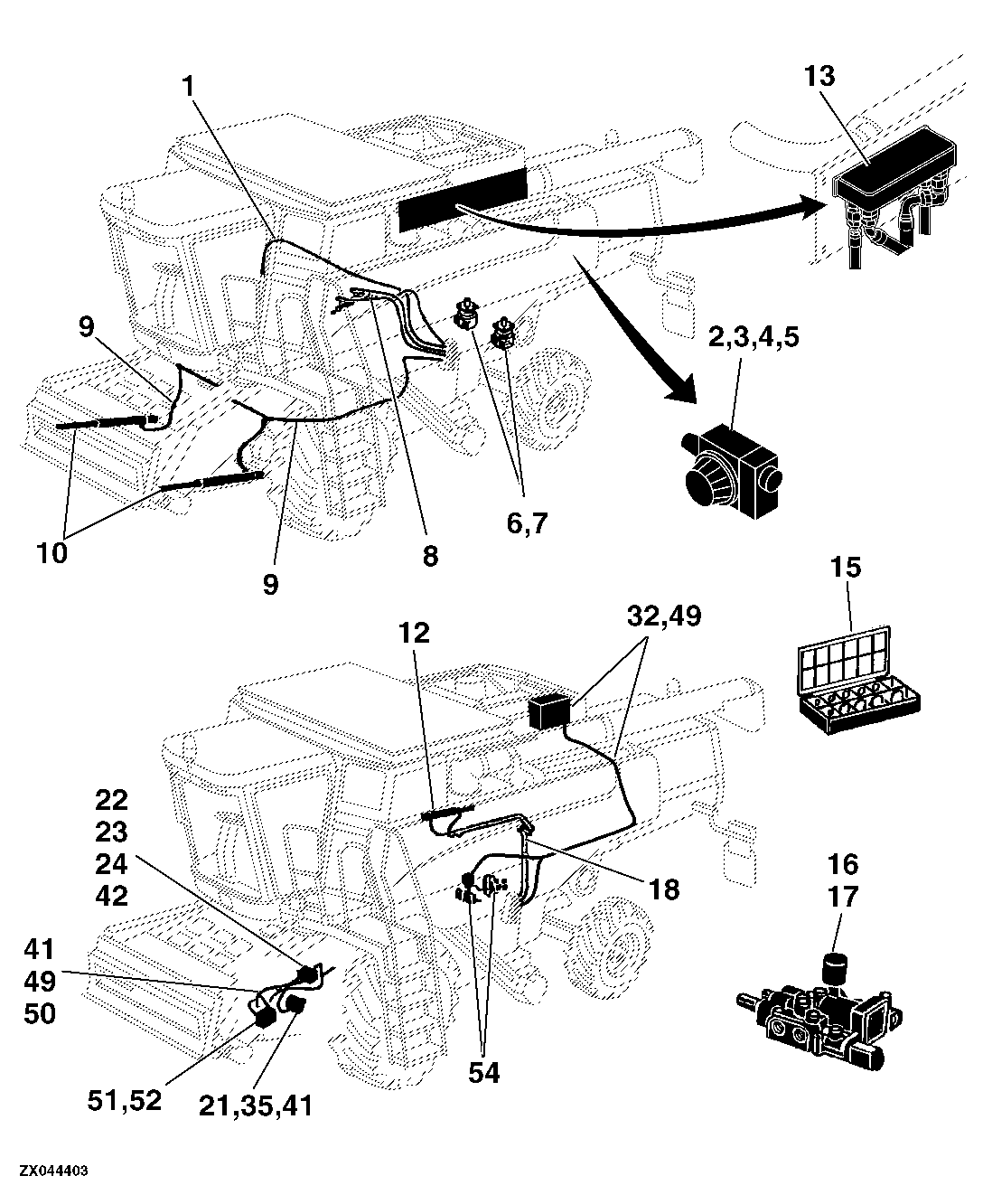

70 Hydraulic System Combine T660

70 Hydraulic System Combine T660

70 Hydraulic System Combine T660

70 Hydraulic System Combine T660

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

70 Hydraulic System Combine T660

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	REEL DRIVE FLOW CONTROL VALVE	-
-	-	1	HYDRAULIC RETURN LINES, WITH CHAFF SPREADER	-
-	-	1	HYDRAULIC/HYDROSTATIC OIL RESERVOIR AND MOUNTINGS	-
-	-	1	MAIN HYDRAULIC FILTER ASSEMBLY	-
-	-	1	Main Hydraulic Pump	-
-	-	1	MAIN VALVE BLOCK	-
-	-	1	MAIN VALVE BLOCK	-
-	-	1	MULTI-COUPLER - EXPLODED VIEW	-
-	-	1	MULTI-COUPLER FOR CORN HEADS	-
-	-	1	OIL COOLER AND A/C CONDENSER	-
-	-	1	PROPORTIONAL VALVE	-
-	-	1	Reel Belt Pickup Charge Pump Mountings and Sheave	-
-	-	1	HYDRAULIC PRESSURE LINES AND HOSES	-
-	-	1	REEL DRIVE HYDRAULIC LINES AND HOSES, L.H.SIDE	-
-	-	1	REEL LIFT LINES AND HOSES	-
-	-	1	REVERSER VALVE, REEL DRIVE AND HYDRAULIC LINES	-
-	-	1	Reverser Valve, Reel Drive and Hydraulic Lines, Commandcenter	-
-	-	1	SEAL KIT FOR FLOW CONTROL VALVE	-
-	-	1	SEAL REPAIR KIT FOR REEL DRIVE FLOW CONTROL VALVE	-
-	-	1	TILT CYLINDER - HEADERTRAK	-
-	-	1	UNLOADING AUGER SWING CYLINDER AND MOUNTING	-
-	-	1	UNLOADING AUGER SWING CYLINDER LINES AND HOSES	-
-	-	1	WET CLUTCH, OIL COOLER LINES AND HOSES	-
-	-	1	Engine Gear Case Oil Filter Assembly	-
-	-	1	ADJUSTING SCREW KIT FOR FLOW CONTROL VALVE	-
-	-	1	ADJUSTING SCREW KIT FOR REEL DRIVE FLOW CONTROL VALVE	-
-	-	1	CHAFF SPREADER MOTOR	-
-	-	1	CHAFF SPREADER MOTOR AND CONNECTING LINES	-
-	-	1	CHAFF SPREADER OPERATING ELEMENT (PREMIUM)	-
-	-	1	CHAFF SPREADER PUMP, VALVE AND HOSES	-
-	-	1	COMPONENTS OF SOLENOID VALVE BLOCK	-
-	-	1	CONNECTING LINES FOR CHAFF SPREADER MOTOR	-
-	-	1	CYLINDER SPEED HYDRAULIC LINES AND HOSES	-
-	-	1	Engine Gear Case Oil Filter Assembly	-
-	-	1	ACCUMULATOR (AHC)	-
-	-	1	Engine Gear Case Pressure Regulator (Part 1)	-
-	-	1	Engine Gear Case Pressure Regulator (Part 2)	-
-	-	1	FLOW CONTROL VALVE PARTS	-
-	-	1	GRAIN TANK UNLOADING DRIVE CYLINDER WITH MOUNTING AND HOSE	-
-	-	1	HEADER LIFT HYDRAULIC CYLINDER	-
-	-	1	HEADER LIFT HYDRAULIC LINES AND HOSES	-
-	-	1	HEADERTRAK HYDRAULIC HOSES, L.H. SIDE (OPTIONAL)	-
-	-	1	HEAT EXCHANGER	-
-	-	1	HYDRAULIC FLAT O-RING KIT	-
-	-	1	HYDRAULIC LINES WITHOUT CHAFF SPREADER	-
