RH Main Wiring Harness - Front

RH Main Wiring Harness - Front

RH Main Wiring Harness - Front

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

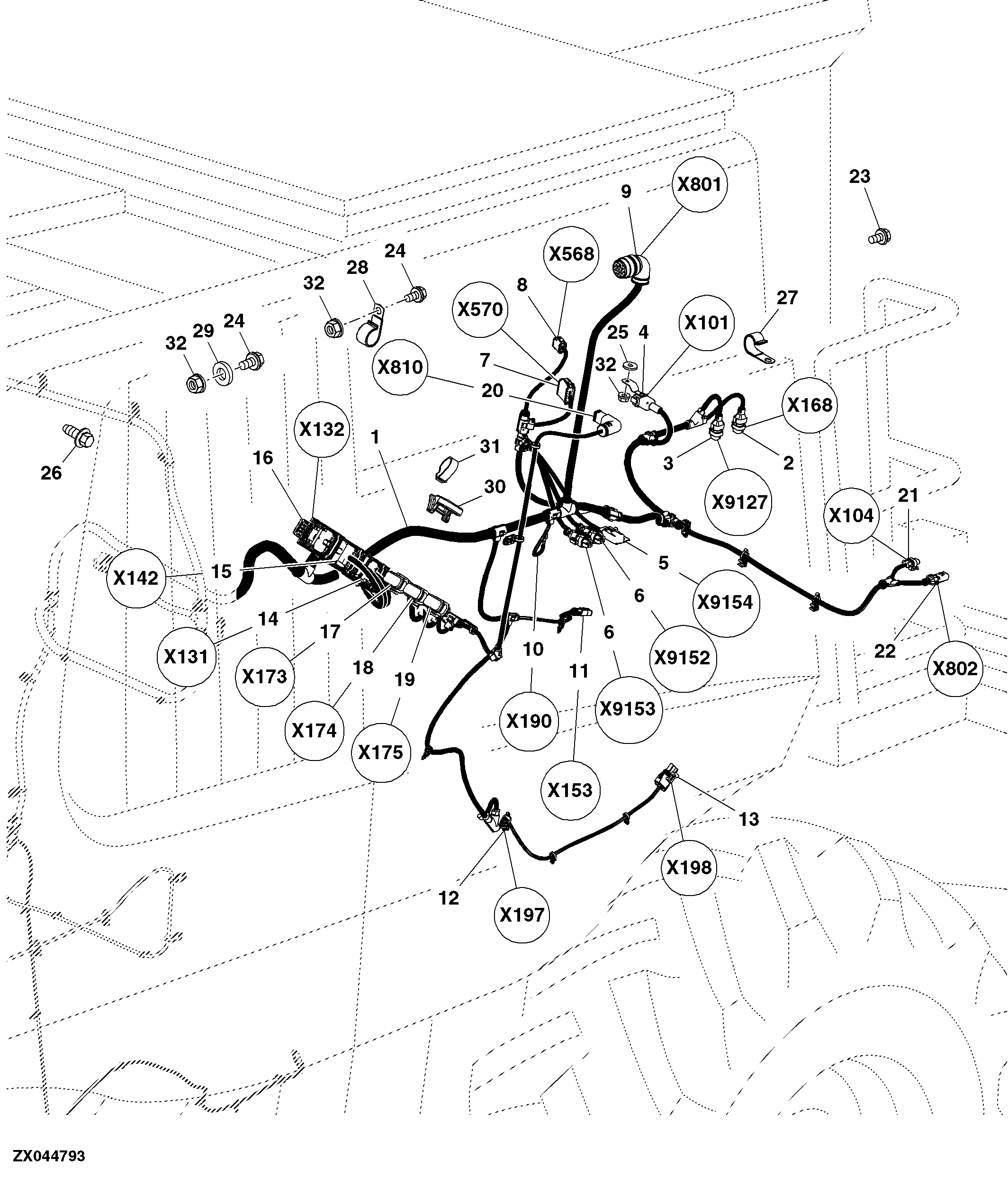

RH Main Wiring Harness - Front

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE38235	1	Wiring Harness	SUB FOR AXE21244
2	57M9786	1	Elec. Connector Housing	(Ord W/ (6) 57M9808, 57M9841)
3	57M9788	1	Elec. Connector Housing	(Ord W/ (3) 57M9808, 57M9809, 57M10631, 57M9939, 57M9791)
4	57M10868	1	Elec. Connector Housing	(Ord W/ (3) 57M8164, (4) 57M9812, N282069, 57M9384, 57M7620, 57M9032, 57M10871)
5	R104570	1	Electrical Connector Assy	(Ord W/ (3) R104933, 57M8477)
6	57M9817	2	Elec. Connector Housing	(Ord W/ (5) 57M10321, 57M9839)
7	57M8453	1	Elec. Connector Housing	(Ord W/ (8) 57M8165, (2) 57M9526, 57M8009)
8	57M9032	1	Elec. Connector Housing	(Ord W/ (4) 57M9808, 57M8016)
9	57M9513	1	Elec. Connector Housing	(Ord W/ (7) 57M9808, (2) 57M8165, (5) 57M8593, 57M8569, 57M8704)
10	57M9195	1	Elec. Connector Terminal	-
11	57M10517	1	Elec. Connector Housing	(Ord W/ (2) 57M8165, 57M8022, 57M10486)
12	R78053	1	Electrical Connector Assy	(Ord W/ (2) 57M9544, (2) 57M9216)
13	RE12364	1	Electrical Connector Assy	(Ord W/ (3) 57M9219, (3) 57M9545)
14	57M10608	1	Elec. Connector Housing	(Ord W/ (11) 57M8770, (7) 57M9184, 57M10604)
15	57M10420	1	Elec. Connector Housing	(Ord W/ (16) 57M8770, (5) 57M9184, 57M10420)
16	57M10611	1	Elec. Connector Housing	(Ord W/ (11) 57M8770, (6) 57M9184, 57M10604)
17	57M8985	1	Elec. Connector Housing	(Ord W/ (3) 57M9216, (3) 57M9217, (2) 57M9549, (3) 57M7491, (3) 57M7299, (2) 57M8294, 57M9083)
18	57M8983	1	Elec. Connector Housing	(Ord W/ 57M9216, (4) 57M9217, 57M9219, (4) 57M7299, 57M7297, 57M7491, 57M9083)
19	57M8986	1	Elec. Connector Housing	(Ord W/ (4) 57M9216, 57M9219, 57M9549, (4) 57M7491, 57M8294, 57M7297, 57M9083)
20	57M9033	1	Elec. Connector Housing	(Ord W/ (4) 57M9808, 57M10870)
21	57M9784	1	Elec. Connector Housing	(Ord W/ 57M10603, 57M9838, 57M9939)
22	57M7254	1	Elec. Connector Housing	(Ord W/ (2) 57M9215, (2) 57M9541, 57M7289)
23	19M7775	2	Screw	M6 X 16
24	19M7865	7	Screw	M8 X 16
25	24H1887	1	Washer	11/32" X 1" X 0.134"
26	37M7058	1	Screw	M8 X 20
27	AH96317	3	Clip	-
28	AH90990	4	Clip	-
29	H131531	7	Push Nut	-
30	H224072	2	Clamp	-
31	H224073	2	Tie Band	-
32	14M7298	1	Flange Nut	M8
