Открытый узел

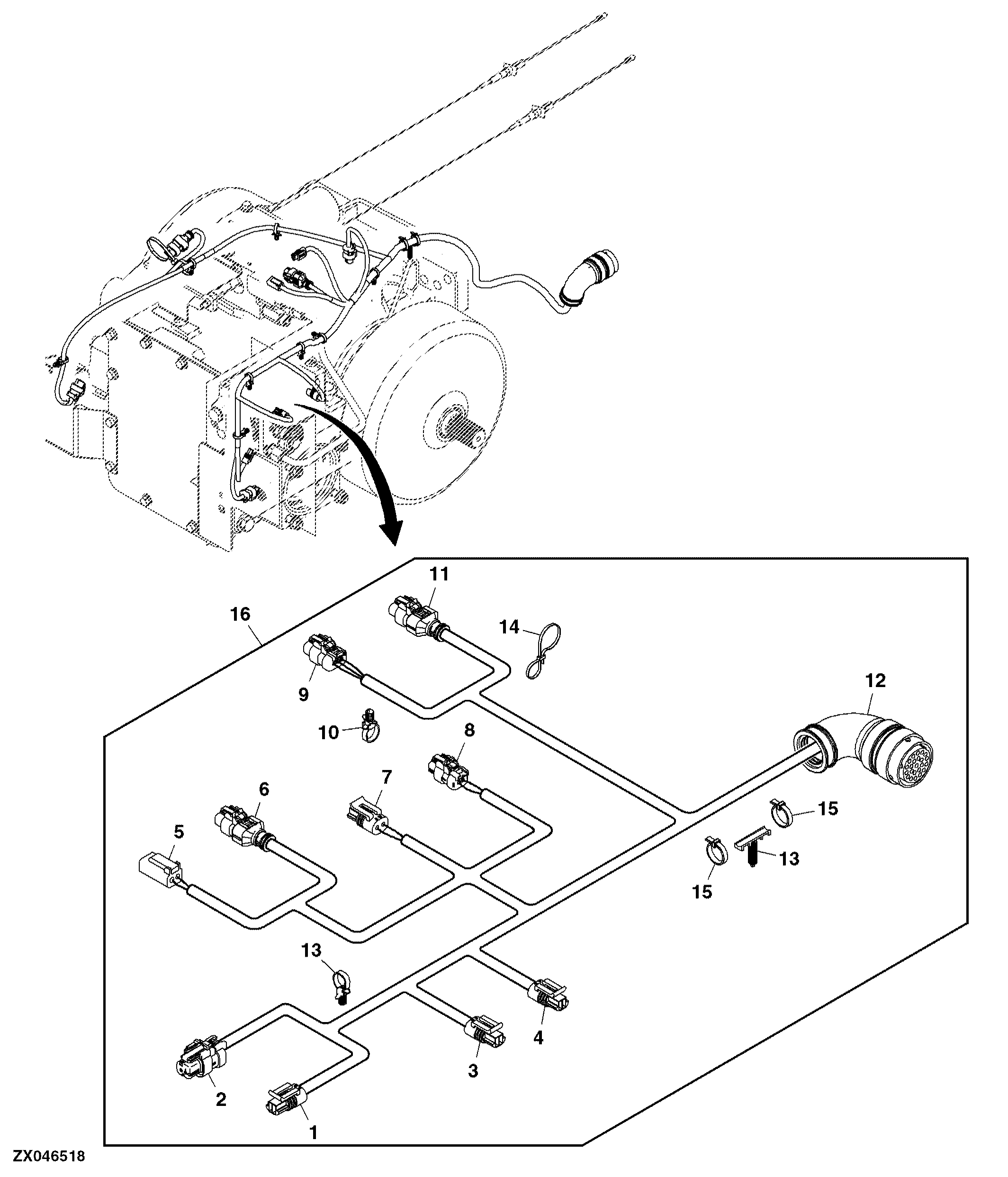

Push Button Shift Transmission, Wiring Harness

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7829	2	Elec. Connector Terminal	-
1	57M7850	1	Elec. Connector Housing	Gear Interlock
2	57M9775	1	Elec. Connector Housing	Input Shaft Speed
2	57M9808	2	Elec. Connector Terminal	-
3	57M7850	1	Elec. Connector Housing	Gear Select 2
3	57M7829	2	Elec. Connector Terminal	-
4	57M7850	1	Elec. Connector Housing	Gear Select 1
4	57M7829	2	Elec. Connector Terminal	-
5	57M10517	1	Elec. Connector Housing	Park Brake Sump
5	57M8165	2	Elec. Connector Terminal	-
5	57M8022	1	Elec.Connect Locking Device	-
6	57M9780	1	Elec. Connector Housing	Park Brake Pressure Sensor
6	57M9808	3	Elec. Connector Terminal	-
6	57M9838	1	Elec. Connector Accessory	-
7	57M7850	1	Elec. Connector Housing	Park Brake Supply
7	57M7829	2	Elec. Connector Terminal	-
8	57M9775	1	Elec. Connector Housing	Ground Speed
8	57M9808	2	Elec. Connector Terminal	-
9	57M9780	1	Elec. Connector Housing	Gear 3 Position Sensor
9	57M9808	3	Elec. Connector Terminal	-
10	57M10233	7	Tie Band	Wire Tie Clip
11	57M9780	1	Elec. Connector Housing	Gear 1/2 Position Sensor
11	57M9808	3	Elec. Connector Terminal	-
11	57M9838	1	Elec. Connector Accessory	-
12	57M8794	1	Elec. Connector Housing	PBST Jumper
12	57M9808	11	Elec. Connector Terminal	-
12	57M8165	6	Elec. Connector Terminal	-
12	57M8704	1	Elec. Connector Accessory	-
13	57M11166	1	Elec. Connector Accessory	-
14	57M10421	1	Elec. Connector Accessory	-
15	R44302	2	Tie Band	-
16	AXE18101	1	Wiring Harness	-

Push Button Shift Transmission, Wiring Harness

Нет текстового описания
