LC1 Main Wiring Harness - Rear

LC1 Main Wiring Harness - Rear

LC1 Main Wiring Harness - Rear

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

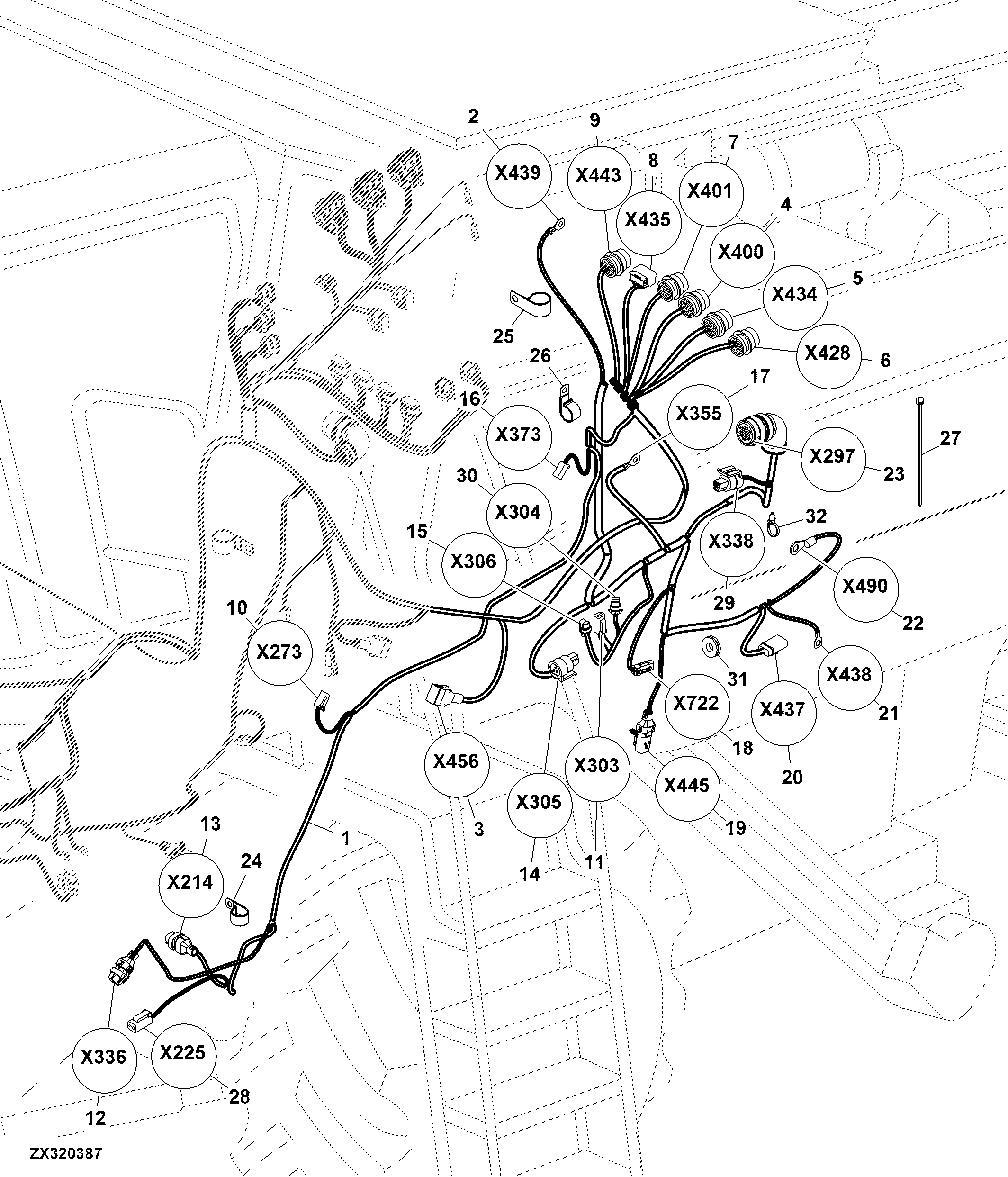

LC1 Main Wiring Harness - Rear

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE43256	1	Wiring Harness	-
1	AXE21242	1	Wiring Harness	ORDER AXE43256; SUB FOR AXE17411
2	57M8866	1	Elec. Connector Terminal	-
3	57M11339	1	Elec. Connector Housing	ORDER W/ (7) 57M8165, 57M9526, 57M8011, 57M9552
4	57M9512	1	Elec. Connector Housing	ORDER W/ (24) 57M8164, (2) 57M9525
5	57M8789	1	Elec. Connector Housing	ORDER W/ (4) N282069, (8) 57M8164
6	57M9655	1	Elec. Connector Terminal	ORDER W/ (6) 57M8592
7	57M9655	1	Elec. Connector Terminal	ORDER W/ (7) 57M8592, 57M8260
8	57M8917	1	Elec. Connector Housing	ORDER W/ (5) 57M8300, (3) 57M8304, (3) 57M8561, 57M9448, (7) 57M9223, (2) 57M8324, 57M8321, 57M8323
9	57M9511	1	Elec. Connector Housing	ORDER W/ (10) 57M9525, (4) 57M8164, (6) 57M8592
10	57M10523	1	Elec. Connector Housing	ORDER W/ (2) 57M8165, 57M8022
11	57M10523	1	Elec. Connector Housing	ORDER W/ (2) 57M8165, 57M8022, 57M10486
12	57M9786	1	Elec. Connector Housing	ORDER W/ (2) 57M9809, (2) 57M9808, (2) 57M10663, 57M9841
13	57M9786	1	Elec. Connector Housing	ORDER W/ (3) 57M10321, 57M9841
14	57M7796	1	Elec. Connector Housing	ORDER W/ (3) 57M7496
15	57M7254	1	Elec. Connector Housing	ORDER W/ (2) R104846, 57M9712, 57M9215, 57M7377
16	57M10523	1	Elec. Connector Housing	ORDER W/ (2) 57M8165, 57M8022
17	57M8867	1	Elec. Connector Terminal	-
18	57M10751	1	Elec. Connector Housing	ORDER W/ (2) 57M10752, (2) 57M10271, 57M10753
19	57M9746	1	Elec. Connector Housing	ORDER W/ (4) 57M9812, 57M9840, 57M9939
20	57M8267	1	Elec. Connector Housing	ORDER W/ (2) R104933, 57M8487, 57M7121
21	57M9536	1	Elec. Connector Terminal	-
22	-	1	Part 23	-
23	57M9514	1	Elec. Connector Housing	ORDER W/ (9) 57M8165, (10) 57M9526, 57M8704
24	AH77724	3	Clip	-
25	AH130222	3	Clamp	-
26	AH90990	3	Clip	-
27	R44302	4	Tie Band	-
28	57M10523	1	Elec. Connector Housing	ORDER W/ (2) 57M8165, (10) 57M8022
29	57M9780	1	Elec. Connector Housing	ORDER W/ (3) 57M9808, 57M9838
30	57M7254	1	Elec. Connector Housing	ORDER W/ 57M9712, (2) 57M9215, (2) R104846
31	H94433	1	Grommet	-
32	57M10492	12	Elec. Connector Accessory	-
