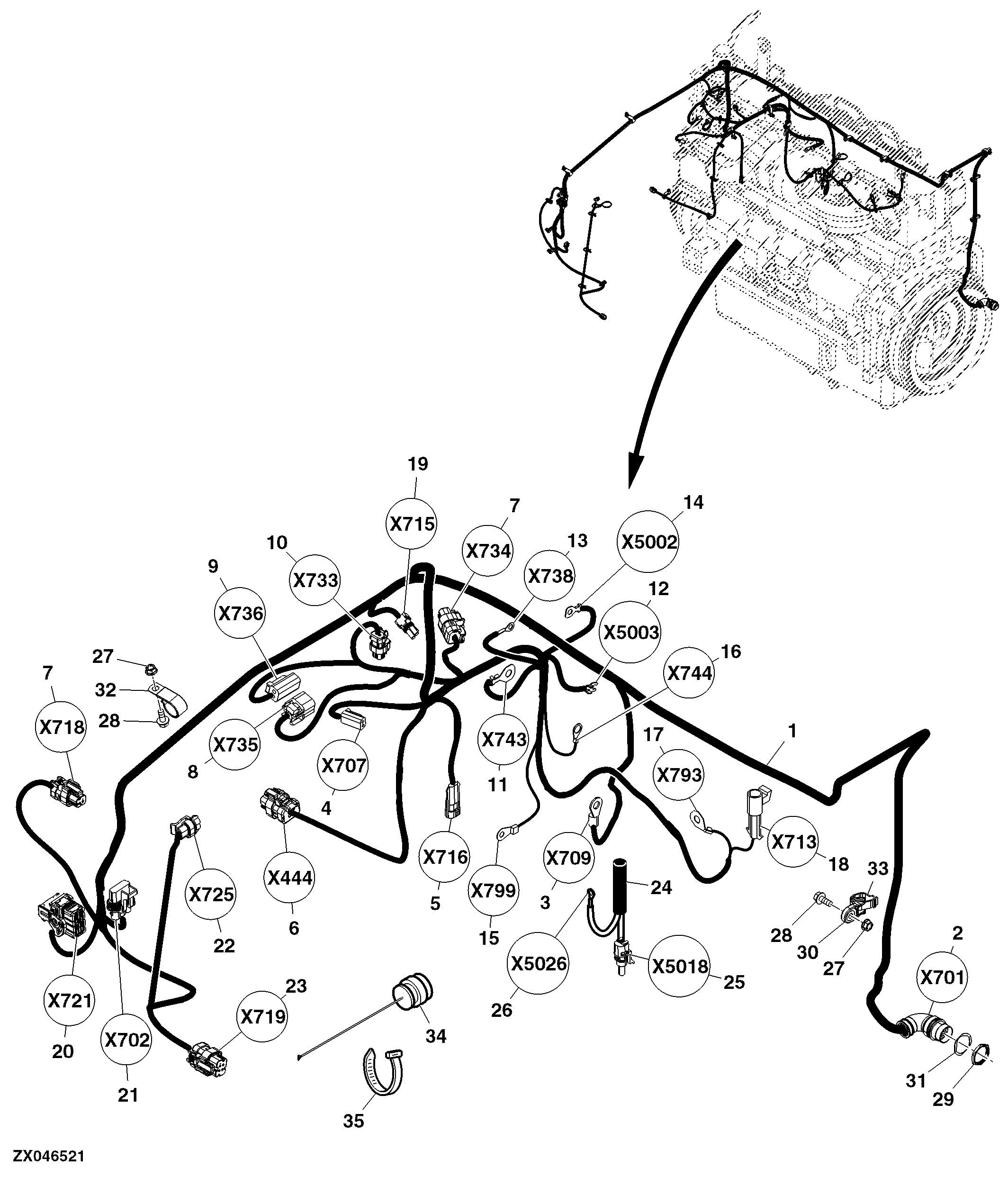

Engine Wiring Harness (6.8/9.0L Tier 3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE17410	1	Wiring Harness	-
2	57M9512	1	Elec. Connector Housing	(Ord W/ (7) 57M9526, (17) 57M8164, N282069, 57M10485)
3	57M10534	1	Elec. Connector Terminal	-
4	57M10517	1	Elec. Connector Housing	(Ord W/ (2) N282069, 57M8022, 57M10530, AZ50831)
5	57M7256	1	Elec. Connector Housing	(Ord W/ (2) 57M5946, (2) 57M7493, 57M9712, 57M7254, 57M9712)
6	57M9817	1	Elec. Connector Housing	(Ord W/ (4) 57M9808)
7	57M9773	2	Elec. Connector Housing	(Ord W/ (2) 57M9808, 57M9837)
8	57M10478	1	Elec. Connector Housing	(Ord W/ (2) 57M8603, (2) 57M10479)
9	57M10517	1	Elec. Connector Housing	(Ord W/ (2) 57M9526, 57M8022, 57M10530)
10	57M9773	1	Elec. Connector Housing	(Ord W/ 57M9808, 57M10321, 57M9837)
11	57M8866	1	Elec. Connector Terminal	-
12	-	1	Part 12	-
13	57M8875	1	Elec. Connector Terminal	-
14	57M10533	1	Elec. Connector Terminal	-
15	57M8867	1	Elec. Connector Terminal	-
16	57M8290	1	Elec. Connector Terminal	-
17	57M9540	1	Elec. Connector Terminal	-
18	57M7293	1	Elec. Connector Housing	(Ord W/ 57M7268, 57M7527, 57M7295)
19	RE12363	1	Electrical Connector Assy	(Ord W/ (2) 57M7368, (2) 57M9543)
20	57M8527	1	Elec. Connector Housing	(Ord W/ (7) 57M10488, (7) 57M9184, 57M8529)
21	57M7280	1	Elec. Connector Housing	(Ord W/ (3) 57M7268, (3) 57M7491, 57M7274)
22	57M7254	1	Elec. Connector Housing	(Ord W/ (2) 57M7493, (2) 57M9541, 57M9712)
23	57M9817	1	Elec. Connector Housing	(Ord W/ (2) 57M10321, 57M9839)
24	AXE17012	1	Wiring Harness	-
25	RE12362	1	Electrical Connector Assy	(Ord W/ 57M7883, 57M9218, 57M10421)
26	57M8888	1	Elec. Connector Terminal	-
27	14M7298	1	Flange Nut	M8
28	19M7866	1	Screw	M8 X 20
29	57M8035	1	Nut	-
30	H224072	2	Clamp	-
31	57M9061	1	Elec.Connect Locking Device	-
32	AH90990	1	Clip	-
33	H224073	2	Tie Band	-
34	AZ51100	1	Elec. Connector Accessory	-
35	R44302	2	Tie Band	-

Engine Wiring Harness (6.8/9.0L Tier 3)

Нет текстового описания
