Separator Fan Drive and Secondary Countershaft

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7786	1	Screw	M10 X 30
2	24H1314	1	Washer	13/32" X 1-3/4" X 7/64"
3	AH229175	1	Throw-Out Bearing	(Sub For AH124050)
4	AH204645	1	Half Sheave	-
4	AH153040	1	Pulley	(REDUCED SPEED FOR GRASS HARVEST)
5	JD7759	2	Lubrication Fitting	-
6	AH14080	4	Seal	-
7	H105578	1	Shim	-
8	19M8112	1	Screw	M12 X 55
9	24M7226	1	Washer	13 X 35 X 5 mm
10	H153524	1	Key	-
11	AH129420	1	Pressed Flanged Housing	-
12	AH139296	1	Ball Bearing	-
13	H135410	1	Pressed Flanged Housing	-
14	H141123	3	Push Nut	10 mm (0.394")
15	AH210174	1	Half Sheave	-
16	03M7191	3	Bolt	M10 X 25
16	19M7785	1	Screw	M10 X 25
17	22M7081	1	Set Screw	M10 X 10
18	AH133191	1	Eccentric Locking Collar	SUB FOR AZ10020
19	Z102375	1	Jackshaft	-
20	H163938	2	Pin	-
21	H152146	1	V-Belt	-
21	H152180	1	V-Belt	(REDUCED SPEED FOR GRASS HARVEST)
22	H209625	2	Stud	-
23	49M7057	1	Shaft Key	10 X 8 X 16 mm
24	H137328	4	Lock Nut	-
25	H135599	1	Washer	-
26	H93399	4	Compression Spring	-
27	H173353	4	Spacer	-
28	AH233509	1	Sheave Assembly	SUB FOR AH167535
29	24H1307	1	Washer	13/32" X 1" X 1/16"
30	19M8404	4	Cap Screw	M8 X 130
31	AXE14339	1	Half Sheave	SUB FOR AH167534
32	H173750	1	Bolt	M12 X 35
33	H212068	2	Bushing	-
34	24M7180	2	Washer	13 X 37 X 3 mm
35	H137329	2	Lock Nut	M12
36	AH202892	1	Half Sheave	(REDUCED SPEED FOR GRASS HARVEST)
37	24H1245	1	Washer	1-9/32" X 2" X 0.105"

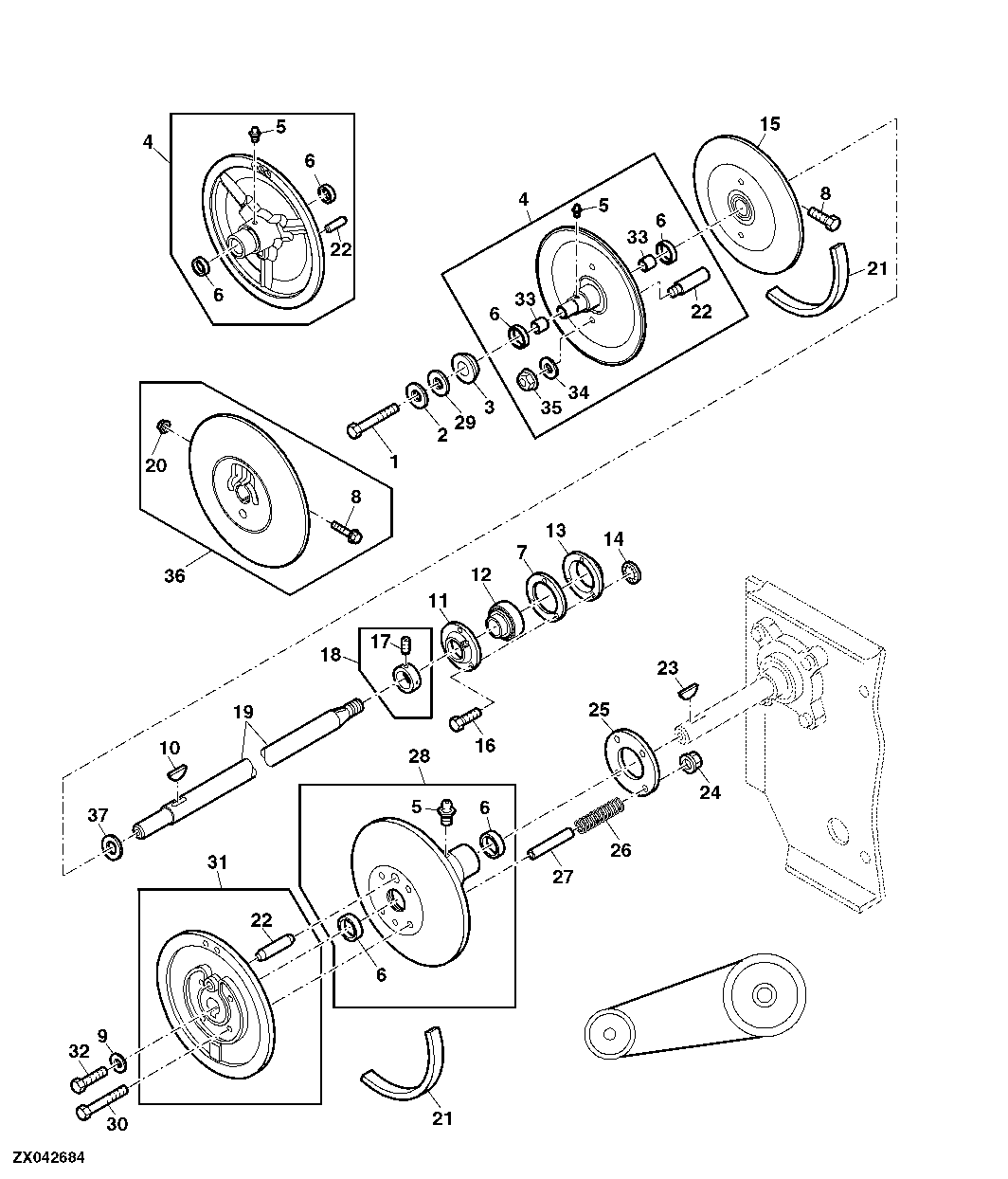

Separator Fan Drive and Secondary Countershaft

Нет текстового описания
