Открытый узел

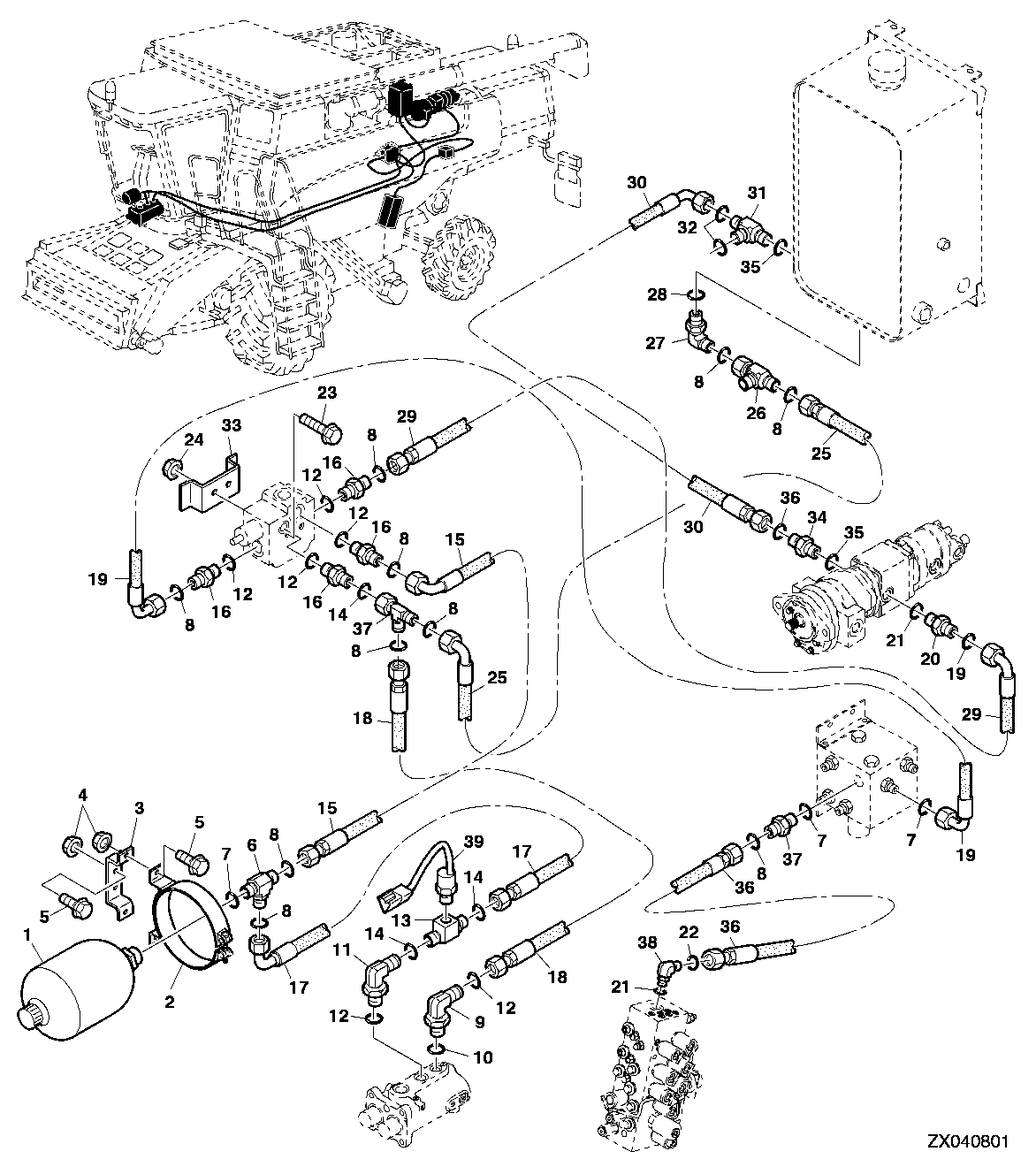

HILLMASTER CONNECTIONS - ACCUMULATOR CHARGE VALVE

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AZ71652	1	Hydraulic Accumulator	(FOR HILLMASTER II)
2	AZ71653	1	Clamp	(FOR HILLMASTER II)
3	Z104238	1	Bracket	(FOR HILLMASTER II)
4	14M7298	1	Flange Nut	(FOR HILLMASTER II) M8
5	19M7866	1	Screw	(FOR HILLMASTER II) M8 X 20
6	38H1024	1	Tee Fitting	(FOR HILLMASTER II)
7	R26375	1	O-Ring	(FOR HILLMASTER II)
8	T77857	1	O-Ring	(FOR HILLMASTER II)
9	38H5027	1	Elbow Fitting	(FOR HILLMASTER II)
10	51M7043	1	O-Ring	(FOR HILLMASTER II) 15.300 X 2.200 mm
11	38H1017	1	Tee Fitting	(FOR HILLMASTER II)
12	51M7043	1	O-Ring	(FOR HILLMASTER II) 15.300 X 2.200 mm
13	AH207279	1	Tee Fitting	(FOR HILLMASTER II)
14	T77613	1	O-Ring	(FOR HILLMASTER II)
15	AZ103206	1	Hydraulic Hose	(FOR HILLMASTER II) LGTH = 4650 mm
16	38H5003	1	Adapter Fitting	(FOR HILLMASTER II)
17	AZ103207	1	Hydraulic Hose	(FOR HILLMASTER II) LGTH = 250 mm
18	AZ103208	1	Hydraulic Hose	(FOR HILLMASTER II) LGTH = 4250 mm
19	AZ104131	1	Hydraulic Hose	(FOR HILLMASTER II) LGTH = 950 mm
20	38H1162	1	Adapter Fitting	(FOR HILLMASTER II)
21	R26906	1	O-Ring	(FOR HILLMASTER II)
22	T77932	1	O-Ring	(FOR HILLMASTER II)
23	19M8071	2	Screw	(FOR HILLMASTER II) M6 X 65
24	14M7303	2	Flange Nut	(FOR HILLMASTER II) M6
25	AZ103209	1	Hydraulic Hose	(FOR HILLMASTER II) LGTH = 1400 mm
26	38H5069	1	Tee Fitting	(FOR FOUR-WHEEL DRIVE) (FOR HILLMASTER II)
27	38H1314	1	Elbow Fitting	(FOR HILLMASTER II)
28	R26448	1	O-Ring	(FOR HILLMASTER II)
29	AZ103203	1	Hydraulic Hose	(FOR HILLMASTER II) LGTH = 1050 mm
30	AZ103219	1	Hydraulic Hose	(FOR HILLMASTER II) LGTH = 785 mm
31	38H1027	1	Tee Fitting	(FOR HILLMASTER II)
32	T76938	1	O-Ring	(FOR HILLMASTER II)
33	Z104237	1	Bracket	(FOR HILLMASTER II)
34	38H1164	1	Adapter Fitting	(FOR HILLMASTER II)
35	R29936	1	O-Ring	(FOR HILLMASTER II)
36	AZ101988	1	Hydraulic Hose	(FOR HILLMASTER II) LGTH = 660 mm
37	38H1161	1	Adapter Fitting	(FOR HILLMASTER II)
38	38H1006	1	Elbow Fitting	(FOR HILLMASTER II)
39	AZ102044	1	Pressure Switch	(FOR HILLMASTER II)
40	38H1030	1	Tee Fitting	(FOR HILLMASTER II)

HILLMASTER CONNECTIONS - ACCUMULATOR CHARGE VALVE

Нет текстового описания
