21 Engine 6090HZ003-RE522896-RE542550-RG38461

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	6505 Turbocharger	-
-	-	1	4701 Crankshaft and Bearings	-
-	-	1	4801 Connecting Rods and Pistons	-
-	-	1	4901 Valve Actuating Mechanism	-
-	-	1	5001 Oil Pump ( - 079414)	-
-	-	1	5003 Oil Pump (079604 - )	-
-	-	1	5101 Cylinder Head with Valves	-
-	-	1	5299 Cylinder Block Fittings	-
-	-	1	5701 Water Pump Inlet	-
-	-	1	5921 Engine Oil Cooler and Oil Filter	-
-	-	1	4601 Cylinder Block	-
-	-	1	7402 Air Conditioning Mounting	-
-	-	1	7701 Timing Gear Cover	-
-	-	1	8412 Engine Wiring Harness	-
-	-	1	8903 Exhaust Gas Recirculation	-
-	-	1	9901 Complete Block Assembly	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Short Block Assembly	-
-	-	1	Without Air Intake	-
-	-	1	2304 Fan Drive	-
-	-	1	1305 Crankshaft Pulley	-
-	-	1	1499 Flywheel Housing	-
-	-	1	1502 Flywheel	-
-	-	1	1601 Fuel Injection System	-
-	-	1	1701 Air Intake Manifold	-
-	-	1	1922 Oil Pan	-
-	-	1	2001 Water Pump	-
-	-	1	2102 Thermostat Cover	-
-	-	1	2201 Engine Thermostat	-
-	-	1	1102 Valve Cover	-
-	-	1	2699 Engine Coolant Heater Fittings	-
-	-	1	2803 Exhaust Manifold	-
-	-	1	2902 Ventilating System	-
-	-	1	3002 Starter Motor	-
-	-	1	3505 Fuel Filter	-
-	-	1	3903 Thermostat Housing	-
-	-	1	4003 Engine Oil Dipstick	-
-	-	1	4397 Starting Aid	-

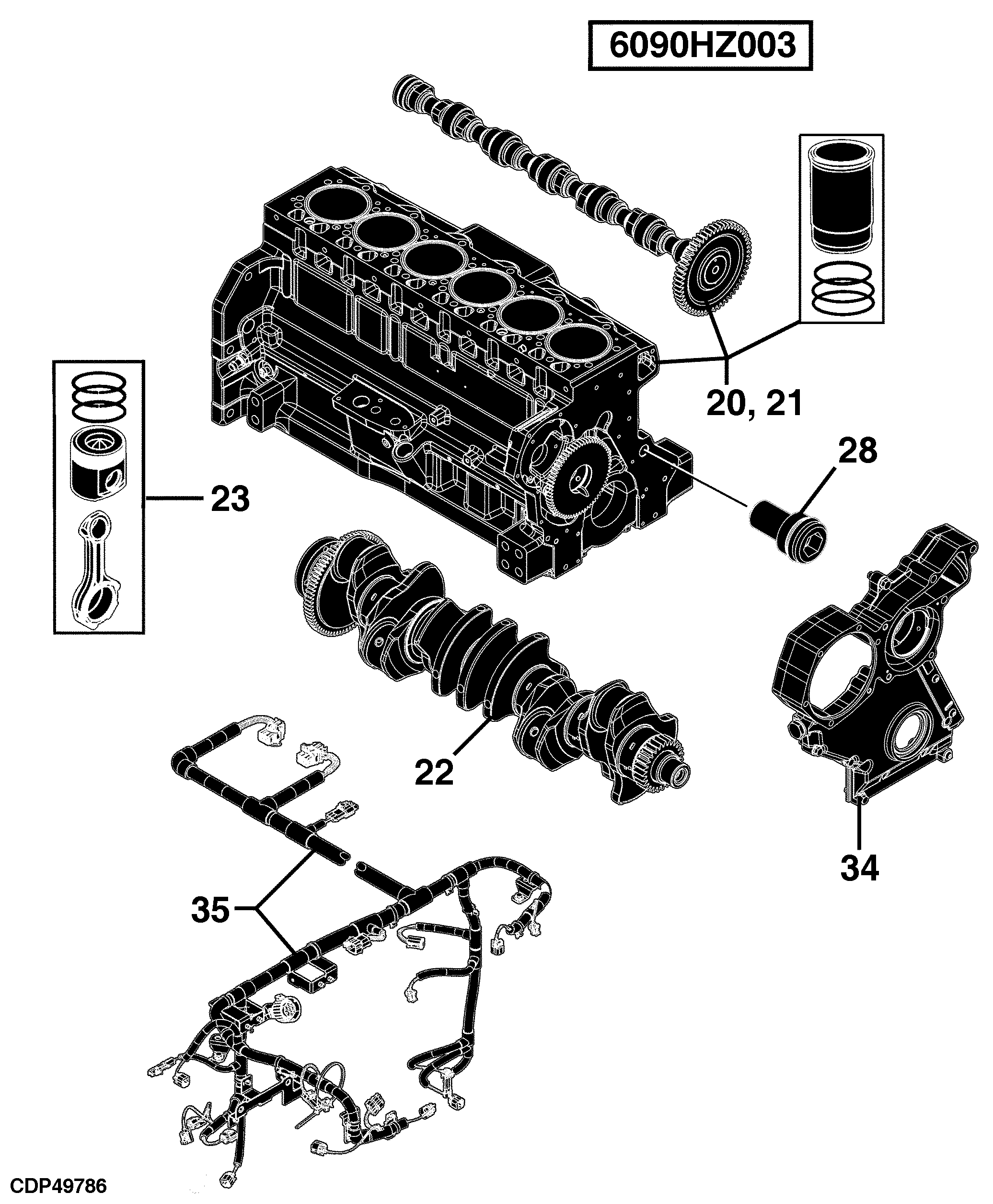

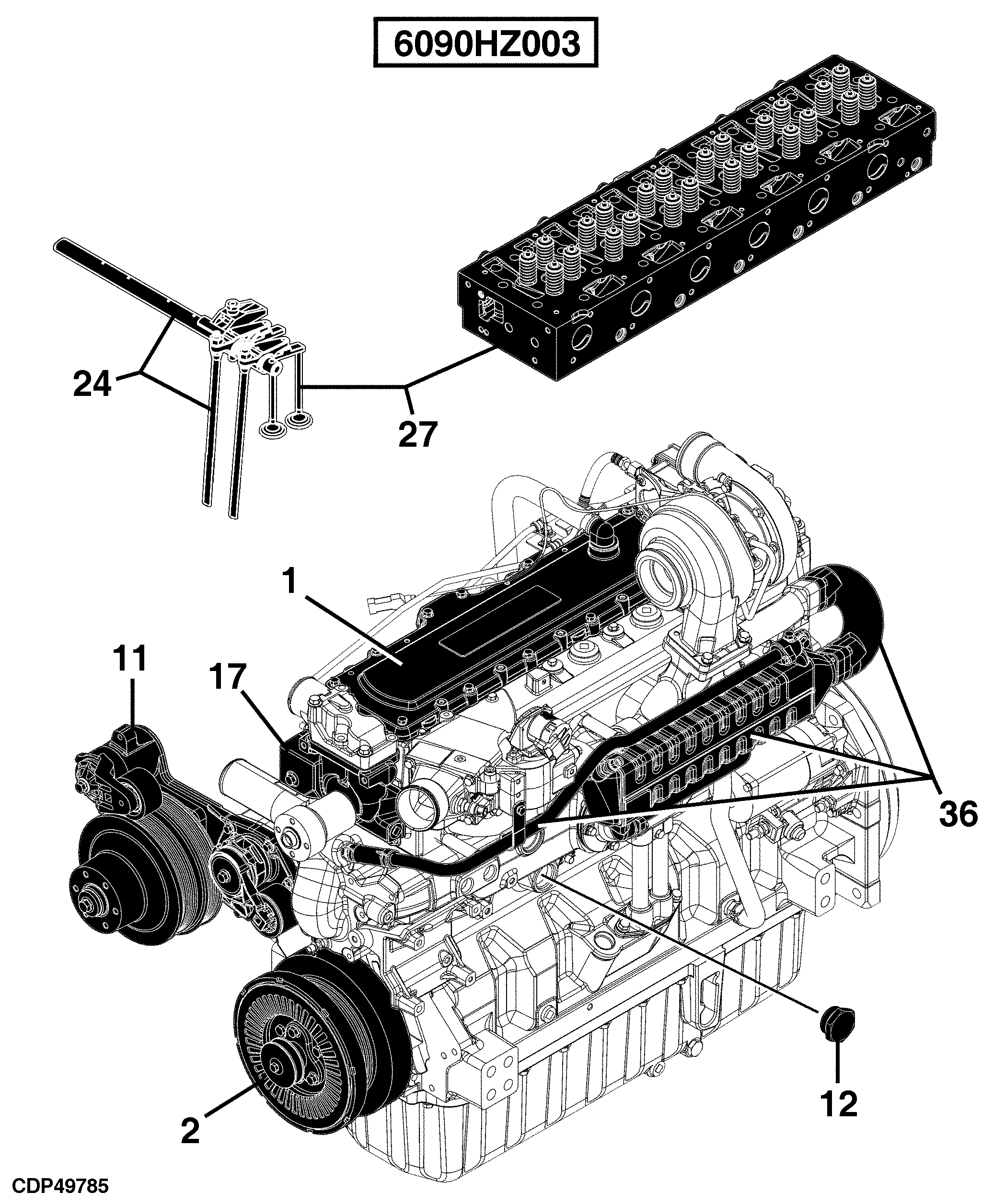

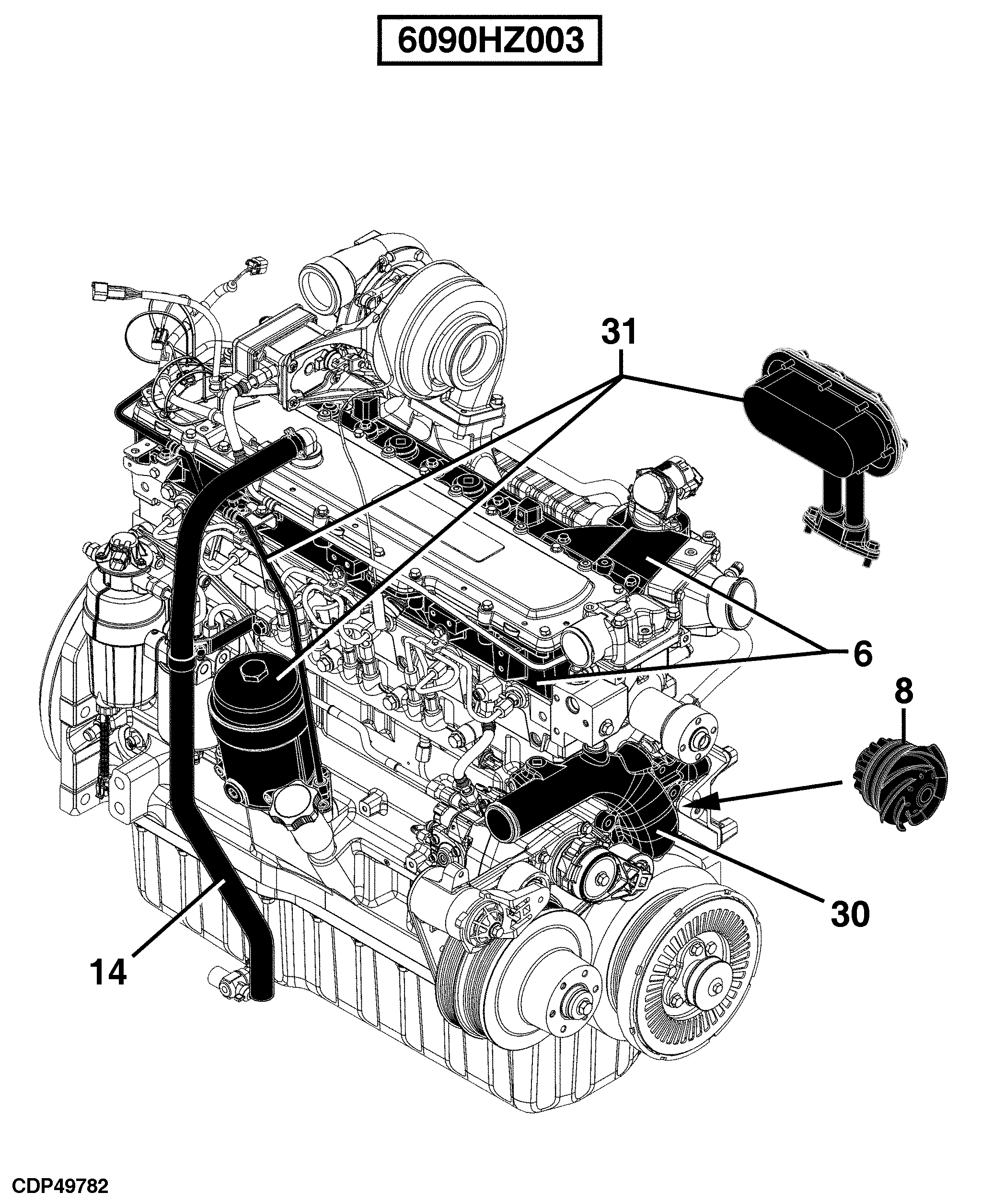

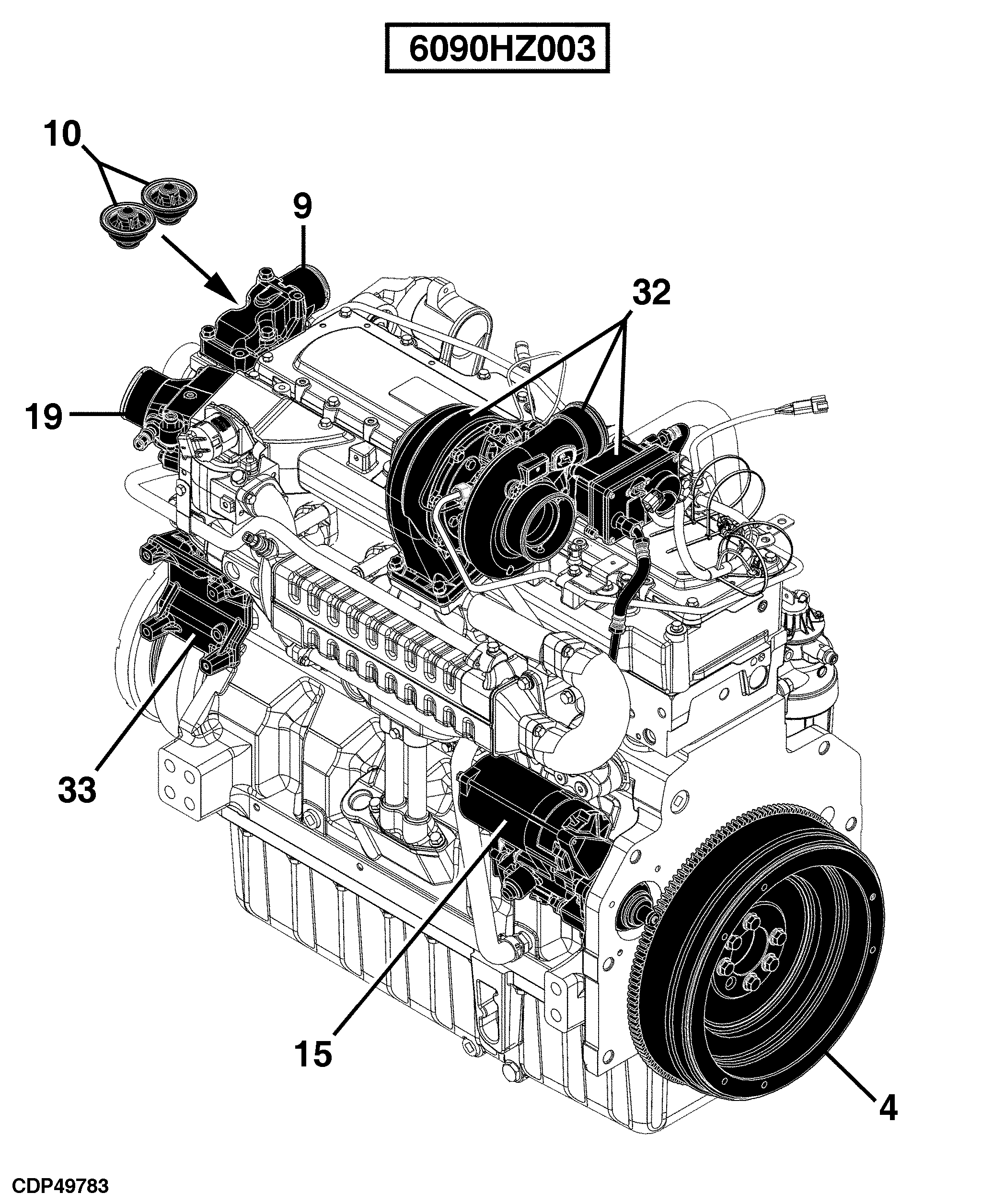

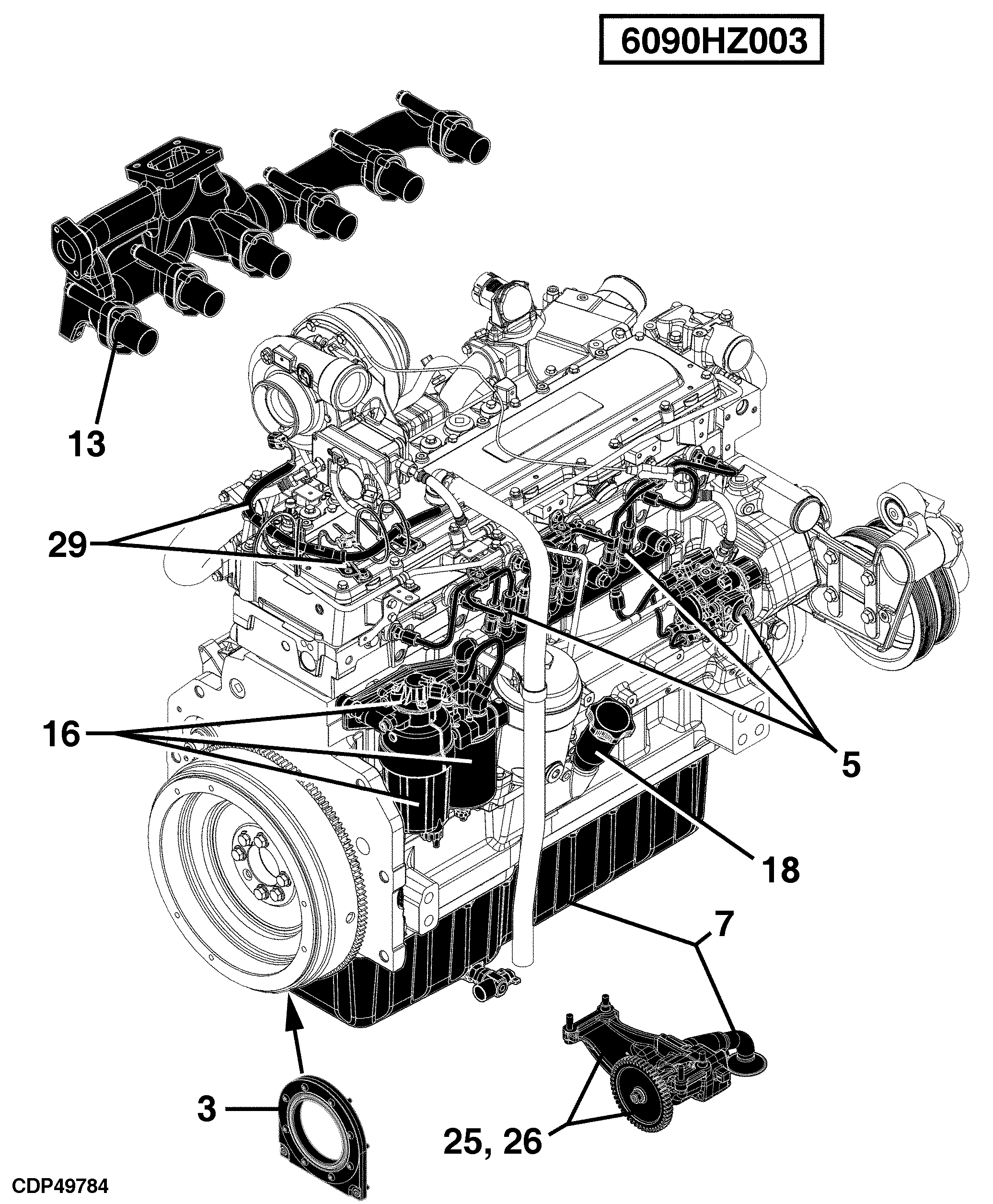

21 Engine 6090HZ003-RE522896-RE542550-RG38461

Нет текстового описания
