Открытый узел

Engine Wiring Harness, 6.8 L, IT4

Engine Wiring Harness, 6.8 L, IT4

Engine Wiring Harness, 6.8 L, IT4

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

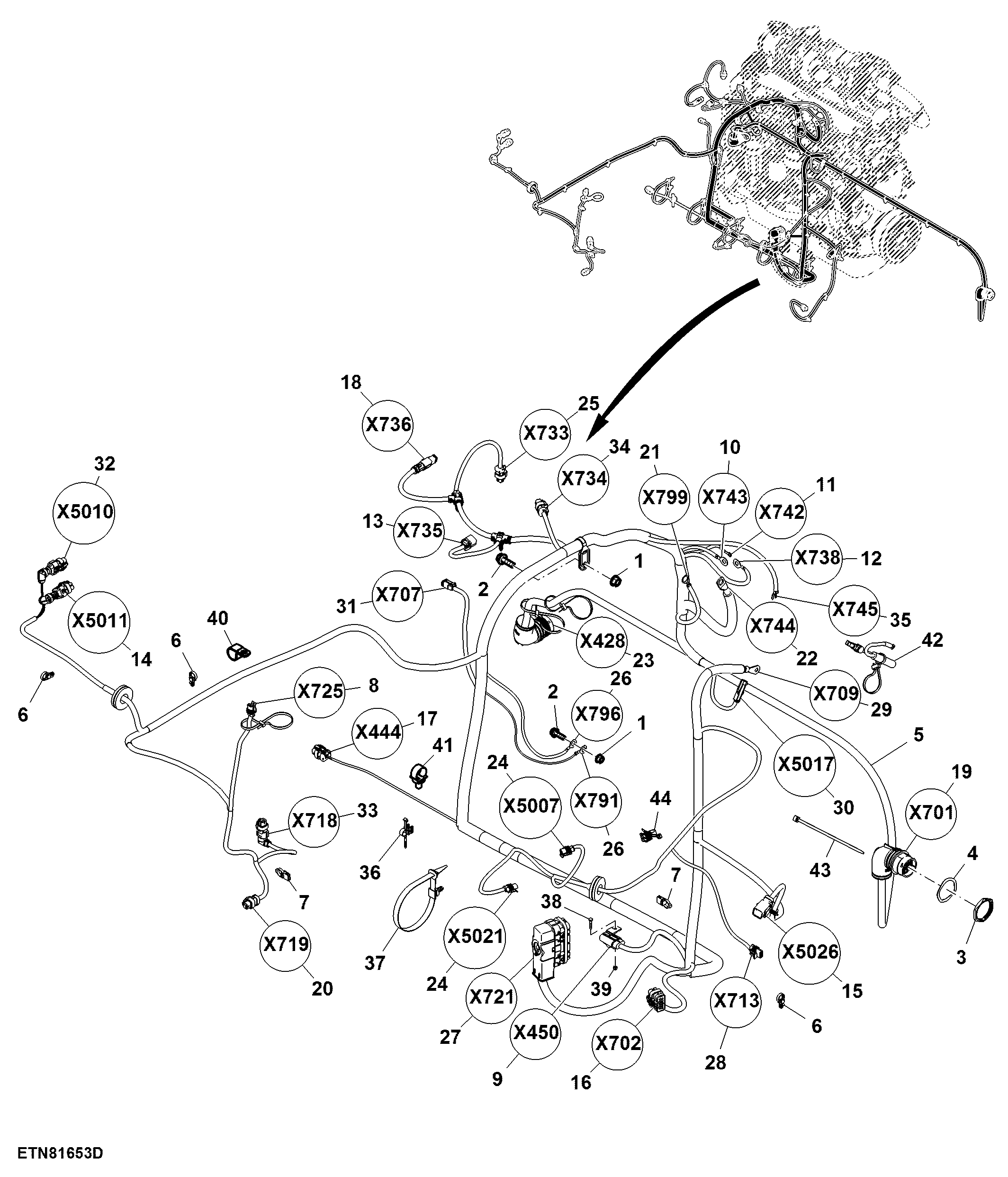

Engine Wiring Harness, 6.8 L, IT4

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	5	Flange Nut	M8
2	19M7867	5	Screw	M8 X 25
3	57M8035	1	Nut	-
4	57M9061	1	Elec.Connect Locking Device	-
5	AXE41425	1	Wiring Harness	-
6	57M10233	28	Tie Band	-
7	57M10362	2	Clamp	-
8	57M7254	1	Elec. Connector Housing	ORDER WITH (2) R104846, (2) 57M9215, 57M7289
9	57M8267	1	Elec. Connector Housing	ORDER WITH (2) R104571, 57M7121, 57M8487
10	57M8866	1	Elec. Connector Terminal	-
11	57M8867	1	Elec. Connector Terminal	-
12	57M8875	1	Elec. Connector Terminal	-
13	57M8924	1	Elec. Connector Housing	ORDER WITH (2) 57M8613, (2) 57M8603, 57M8633
14	57M9780	1	Elec. Connector Housing	ORDER WITH (3) 57M10321, 57M9847
15	57M9789	1	Elec. Connector Housing	ORDER WITH (3) 57M9813, (2) 57M10603, 57M9939, 57M9841, 57M10336
16	57M9800	1	Elec. Connector Housing	ORDER WITH(4) 57M9809, 57M9808, (5) 57M10663, (2) 57M10336, 57M9844
17	57M9817	1	Elec. Connector Housing	ORDER WITH (4) 57M9808, 57M9840
18	AZ61547	1	Elec. Connector Housing	ORDER WITH (2) 57M9526, 57M8022, 57M10486
19	57M9512	1	Elec. Connector Housing	ORDER WITH (4) 57M8164, (2) 57M8262, 57M9227, (6) 57M9525, (10) R78069
20	57M9772	1	Elec. Connector Housing	ORDER WITH (2) 57M10631, (2) 57M9837
21	57M10244	1	Elec. Connector Terminal	-
22	57M11441	1	Elec. Connector Terminal	-
23	57M9656	1	Elec. Connector Terminal	ORDER WITH (4) 57M8593, (4) R78069, 57M8704
24	57M10497	2	Elec. Connector Housing	ORDER WITH (2) 57M8564, (2) 57M8567
25	57M9773	1	Elec. Connector Housing	ORDER WITH 57M9809, 57M10631, 57M9837
26	57M9195	2	Elec. Connector Terminal	-
27	RE538505	1	Elec. Connector Accessory	ORDER WITH (38) 57M9814, (5) 57M10321, (7) 57M9808, (4) 57M9806, R528122
28	57M7309	1	Elec. Connector Housing	ORDER WITH (2) 57M7491, (2) R78063, 57M10477
29	57M9548	1	Elec. Connector Terminal	-
30	R78052	1	Electrical Connector Assy	ORDER WITH R78061, R78063
31	AZ61547	1	Elec. Connector Housing	ORDER WITH (2) 57M8165, 57M8022, 57M10486
32	57M9817	1	Elec. Connector Housing	ORDER WITH (4) 57M9809, 57M9848
33	57M9773	1	Elec. Connector Housing	ORDER WITH (2) 57M9809, 57M10155
34	57M9773	1	Elec. Connector Housing	ORDER WITH (2) 57M10631, 57M9837
35	-	1	Part 35	-
36	AH225363	1	Clip	-
37	AFH203668	5	Tie Band	-
38	19M7752	1	Cap Screw	M4 X 20
39	14M7264	1	Lock Nut	M4
40	AH78237	1	Clamp	-
41	57M10630	3	Clip Kit	-
42	AXE17012	1	Wiring Harness	-
43	R44302	1	Tie Band	-
44	AH225366	1	Clip	-
