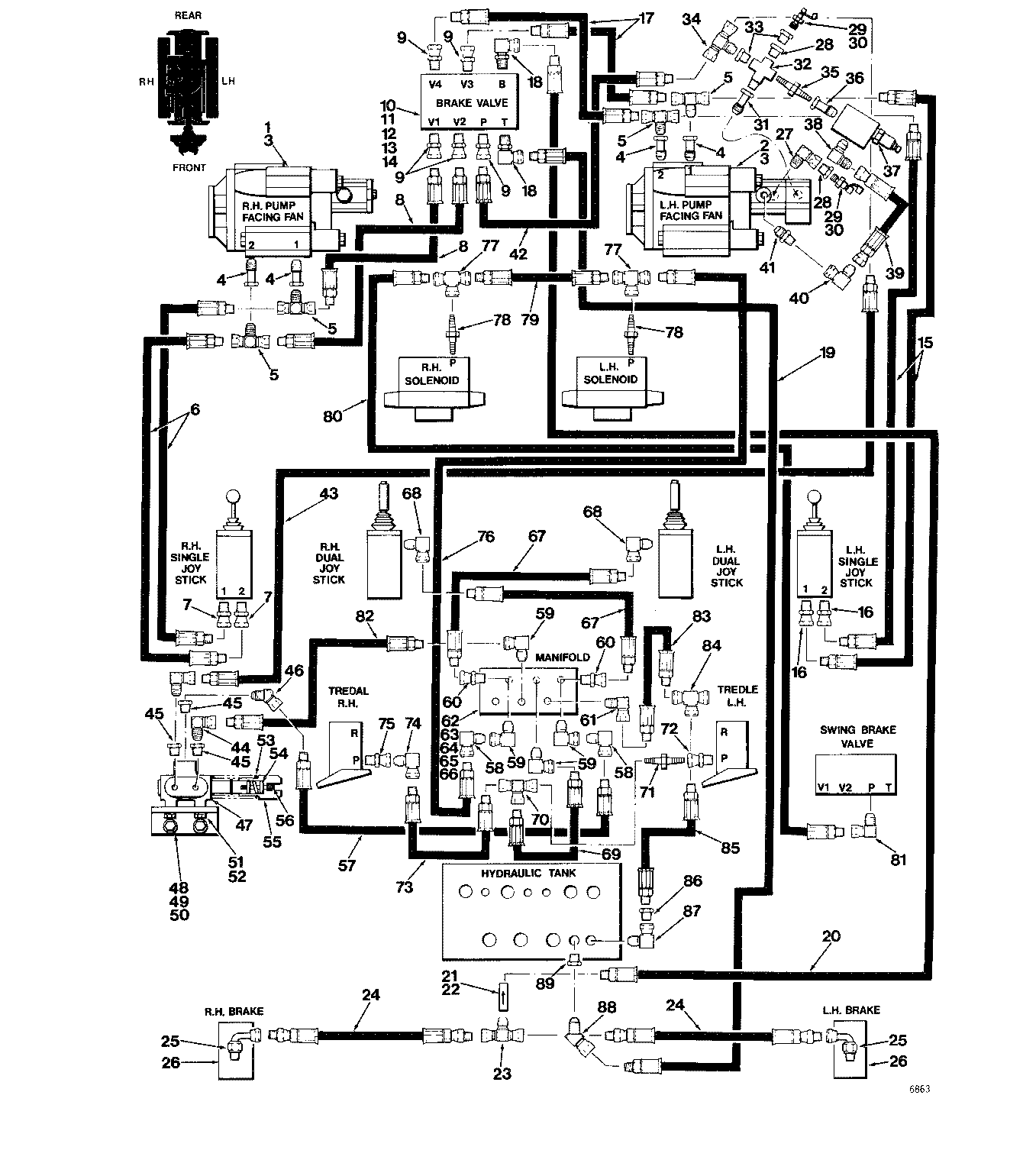

HYDRAULIC SYSTEM (2000) F H B I X 2000 HYD SYS-MAIN FRAME-SHT 2( C95054 - ) 2000-090/10 [2000-090/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	-
2	-	1	Part 2	-
3	810609700	4	Plug	-
4	810606200	4	CONNECTOR	-
5	810379300	4	TEE	-
6	810999200	2	HOSE ASSEMBLY - L.H. PUMP TO SINGLE JOYSTICK - L.H	-
7	810376600	2	CONNECTOR	-
8	811002200	2	HOSE ASSEMBLY - L.H. PUMP TO BRAKE VALVE	-
9	810376600	5	CONNECTOR	-
10	811008400	1	VALVE - BRAKE RELEASE	-
11	825351600	1	BRACKET - BRAKE VALVE	-
12	810089800	2	BOLT*1/4-20UNCX4 -	-
13	810878100	4	WASHER*1/4	-
14	810087100	2	NUT*1/4-20UNC	-
15	810999200	2	HOSE ASSEMBLY - L.H. PUMP TO SINGLE JOYSTICK - L.H	-
16	810337600	2	CONNECTOR	-
17	810997500	2	HOSE ASSY - CONTROL VALVE TO SOLENOID VALVE - L.H	-
18	811001500	2	ELBOW - 90 DEG	-
19	810998300	1	HOSE ASSEMBLY - BRAKE VALVE TO TANK	-
20	810998900	1	HOSE ASSEMBLY - BRAKE VALVE TO TRACK BRAKE TEE	-
21	820305100	1	VALVE BODY	-
22	810116200	1	POPPET	-
23	810373900	1	TEE	-
24	811002100	2	HOSE ASSY - MOTOR TO BRAKE	-
25	811001500	2	ELBOW - 90 DEG	-
26	-	1	Part 30	-
27	811020800	2	ELBOW - 90 DEG	-
28	811084000	3	REDUCER	-
29	811015500	3	QUICK DISCONNECT NIPPLE (CLAMBUNK)	-
30	811015600	3	CAP	-
31	811024400	1	FITTING	-
32	811074900	1	CROSS	-
33	810134800	2	REDUCER	-
34	810373900	1	TEE	-
35	810068000	1	NIPPLE	-
36	811075100	1	FITTING	-
37	811073100	1	RELIEF VALVE	-
38	810289600	1	ELBOW 90 DEG	-
39	810744200	1	HOSE-HYD*0.75X27	-
40	810447100	1	ELBOW-90 DEG. -	-
41	810270000	1	FITTING*METRIC -	-
42	811002200	1	HOSE ASSEMBLY - L.H. PUMP TO BRAKE VALVE	-
43	810316200	1	HOSE-HYD*0.25X130	-
44	810328300	2	ELBOW - 90 DEG	-
45	810737600	3	ADAPTER	-
46	810268200	1	ELBOW 45 DEG	-
47	-	1	Part 53	-
48	825487300	1	BRACKET	-
49	810082100	2	BOLT*1/2-13UNCX1	-
50	810011600	2	WASHER*1/2	-
51	810877000	2	BOLT*5/16-18UNCX5/8	-
52	810768000	2	WASHER*5/16	-
53	825487100	1	COMPRESSION SPRING - OUTER	-
54	825487000	1	SPRING - INNER	-
55	825487200	1	FLOATING HEAD	-
56	811019100	1	SOC HEAD CPSW 3/8-16 UNC X 2	-
57	810998000	1	HOSE ASSEMBLY - VALVE TO MANIFOLD	-
58	810328300	2	ELBOW - 90 DEG	-
59	811001500	4	ELBOW - 90 DEG	-
60	810376600	2	CONNECTOR	-
61	811002600	1	ELBOW - 90 DEG	-
62	825315100	1	MANIFOLD - PRESSURE RETURN	-
63	810089400	2	BOLT*1/4-20UNCX2-1/2	-
64	810878100	2	WASHER*1/4	-
65	810087100	2	NUT*1/4-20UNC	-
66	825315200	1	HOSE HANGER - REAR	-
67	810997600	2	HOSE ASSEMBLY - MANIFOLD TO DUAL JOYSTICKS	-
68	811001500	2	ELBOW - 90 DEG	-
69	810998400	1	HOSE ASSEMBLY - VALVE TO DUAL JOYSTICK - R.H	-
70	231532000	1	TEE	-
71	810120000	1	FITTING*NPTF 0.25-18 -	-
72	810376600	1	CONNECTOR	-
73	810997900	1	HOSE ASSY - CONTROL VALVE TO SOLENOID VALVE - R.H	-
74	810328300	1	ELBOW - 90 DEG	-
75	810376600	1	CONNECTOR	-
76	810998200	1	HOSE ASSEMBLY - RETURN - L.H. SOLENOID TO MANIFOLD	-
77	231532000	2	TEE	-
78	810120000	2	FITTING*NPTF 0.25-18 -	-
79	810997700	1	HOSE ASSEMBLY	-
80	810997700	1	HOSE ASSEMBLY	-
81	811001500	1	ELBOW - 90 DEG	-
82	810998000	1	HOSE ASSEMBLY - VALVE TO MANIFOLD	-
83	811002500	1	HOSE ASSY - RETURN - MANIFOLD TO RETURN TEE	-
84	231532100	1	TEE	-
85	811019300	1	HOSE ASSEMBLY - RETURN - TEE TO TANK	-
86	810820700	1	Adapter Fitting	-
87	811012700	1	ELBOW - 90 DEG	-
88	-	1	Part 94	-
89	-	1	Part 95	Refer to Page: FELLER BUNCHER\T25 FELLER BUNCHER\T25 - 2618/2628/T25 (Timberjack < AA)\HYDRAULIC SYSTEM (2000)\HYDRAULIC SYSTEM (2000) F H B I X 2000 HYD SYS-MAIN FRAME-SHT 1( C95054 - ) 2000-089/10
-	841434300	1	CARTRIDGE	-
-	841434400	1	SEAL KIT	-
-	841434500	3	VALVE-SHUTTLE	-
-	841434600	1	SEAL KIT	-
-	841658700	1	RELIEF CARTRIDGE (320 PSI)	-
-	841659100	1	SEAL KIT	-
