Chopper / Base Cutter Pump Components (2 of 2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3385	4	Cap Screw	1/2" X 1-1/8"
2	CB01491118	1	Cover	-
3	T210528	1	Seal	-
4	T156000	1	Screw	-
5	N203952	1	O-Ring	-
6	T155680	6	Screw	-
7	N316532	1	Plate	-
8	AT216565	1	Cover	-
9	N203486	1	Bushing	-
10	T167226	1	Coupling	-
11	AN306668	1	Oil Pump	-
12	R151080	1	Pin	-
13	T155678	1	Drive Shaft	-
14	T155677	1	Key	-
15	T72570	1	O-Ring	-
16	0071339071	1	Plug	-
17	AT334796	1	Fitting Plug	-
18	N319869	1	Plate	-
19	AT224344	1	Cylinder Block	-
20	0631309725	1	Cylinder Block	-
21	R151099	1	Bearing	-
22	T176261	1	Screw	-
23	T177594	1	Spacer	-
24	AN220419	1	Piston	-
25	CB11474089	1	Swash Plate	-
26	R151065	1	Link	-
27	T210562	1	Pin	-
28	T223607	1	Swash Plate	-
29	T24199	1	Washer	-
30	AT214874	1	Pin Fastener	-
31	T222119	1	Actuator	-
32	T176244	1	Screw	-
33	T222123	1	Cap Screw	-
34	T222118	1	Bearing	-
35	R726R	2	Dowel Pin	-
36	N317878	1	Housing	-
37	T155640	2	Nut	-
38	CXT16293	1	Set Screw	-
39	T155727	2	Screw	-
40	CXT20338	1	Pump Kit	-
41	CXT16282	1	Ball Bearing	-
42	T15509	1	Snap Ring	-
43	N206810	1	Shaft	-
44	RE151101	1	Piston Replacement Kit	-
45	CXT20338	1	Pump Kit	-
46	CXT16293	1	Set Screw	-
47	T155640	2	Nut	-
48	T155727	2	Screw	-
49	CXT16294	2	Bolt	-
50	CXT11522	1	Lever	-
51	N317877	2	Plate	-
52	R151072	2	Spring	-
53	T155638	2	Shim	-
54	CXT20338	1	Pump Kit	-
55	AN306666	1	Insert	-
56	T222125	1	Cover	-
57	AT214801	1	Plug	-
58	T155640	2	Nut	-
59	-	6	Part 59	ORDER CXT16285
60	0041342718	1	Housing	-
61	R150986	1	Bearing	-
62	AT214861	1	Lug	-
63	N203486	1	Bushing	-
64	19M8123	1	Screw	M8 X 45
65	AT214860	1	Spacer	-
66	AT214861	1	Lug	-
67	24H1136	1	Washer	11/32" X 11/16" X 0.065"
68	19M8123	1	Screw	M8 X 45
69	R151095	2	Plug	-
70	AT214853	2	Check Valve	-
71	AXT15187	1	Hydraulic Pump	-
71	CXT16285	1	Seal Kit	-

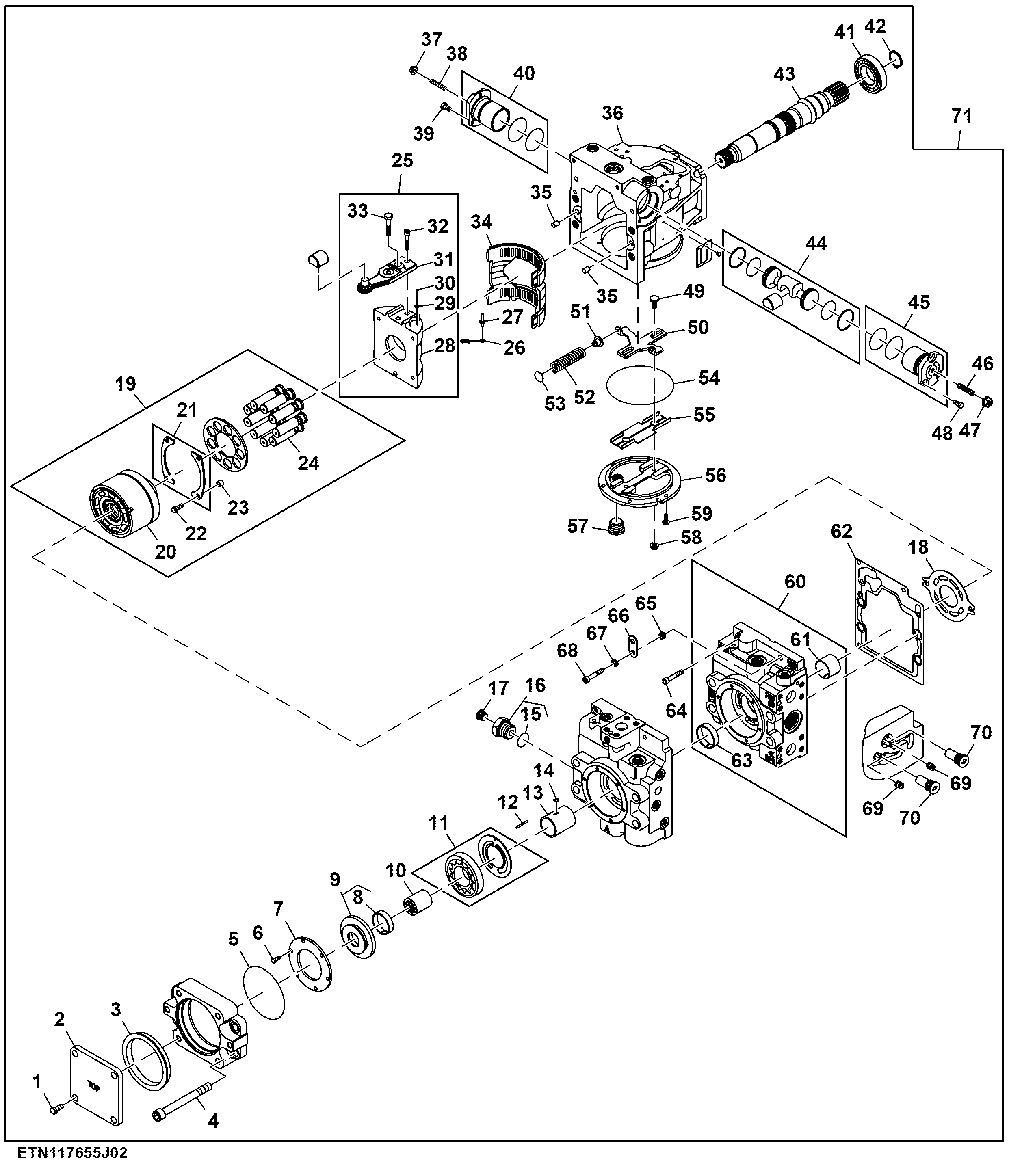

Chopper / Base Cutter Pump Components (2 of 2)
