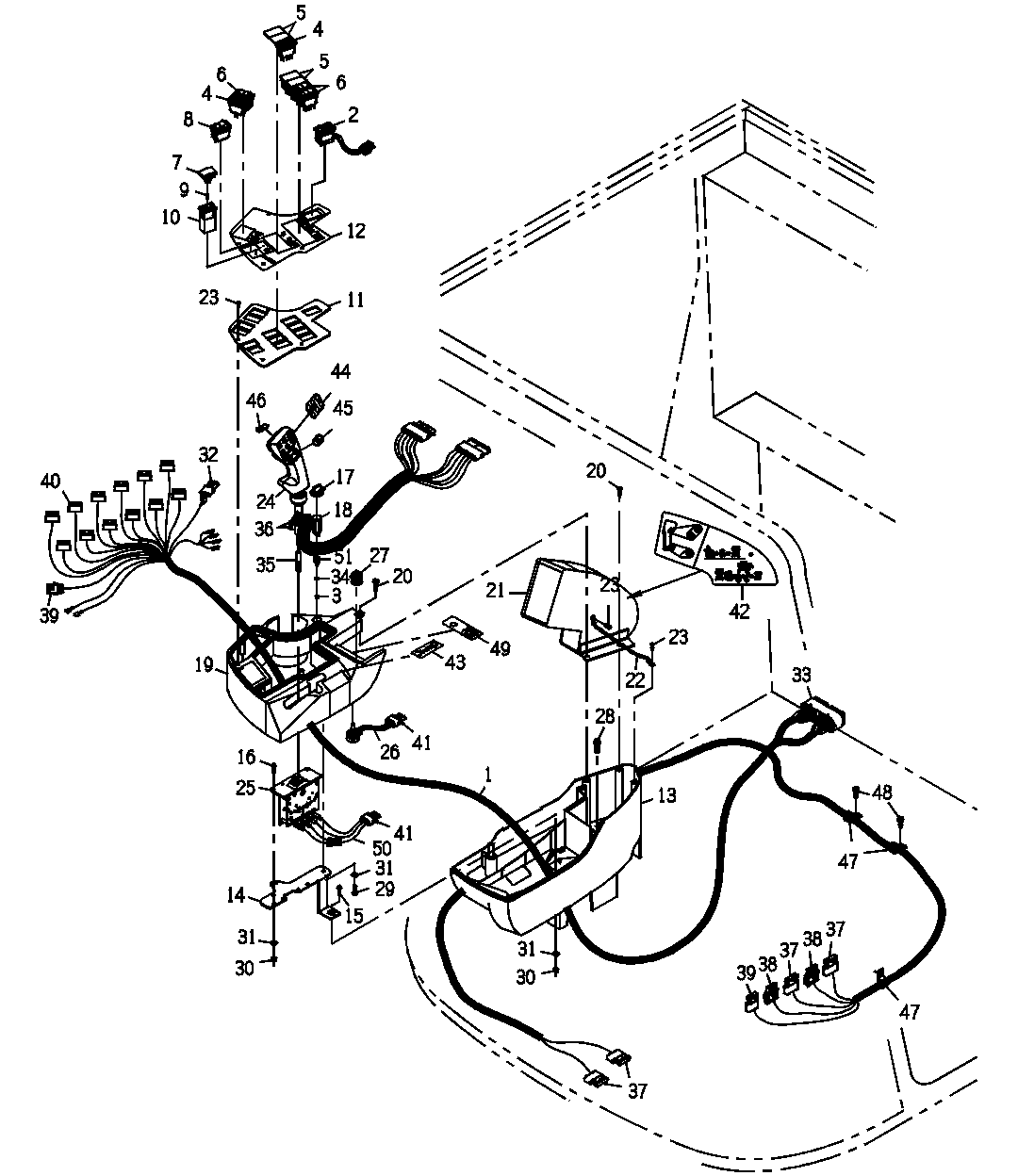

OPERATOR ARMREST WITH HARNESS (TRACK)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CB11489413	1	Wiring Harness	(SUB FOR CB11467352)
2	CB01489674	1	Switch	(SUB FOR RE68803)
3	14H605	1	Nut	0.164"
4	0361350754	2	Toggle/Rocker Switch	-
5	M115279	4	Plug	-
6	0361350753	3	Toggle/Rocker Switch	-
7	CB01426967	1	Lens	-
8	CB11427649	1	Toggle/Rocker Switch	-
9	CB01427380	1	Lamp	-
10	CB01426964	1	Switch	-
11	CB01435654	1	Cover	-
12	CB01472530	1	Label	-
13	CXT12390	1	Housing	-
14	CB11433003	1	Control Console	-
15	0051334238	1	Bolt	-
16	21H1148	2	Screw	0.190" X 3/4"
17	H170373	1	Plug	-
18	AR56766	1	Housing	-
19	CB01436190	1	Cover	-
20	R126355	2	Screw	-
21	AH147170	1	Cushion	-
22	AR27940	1	Link Chain	-
23	H111706	6	Screw	-
24	CB11426499	1	Multi-Functional Controller	INCL KEY 36
25	CB11442206	1	Potentiometer	INCL KEY 35
26	CB11463696	1	Potentiometer	INCL KEY 41
27	0281349274	1	Knob	-
28	37M7084	4	Screw	M8 X 25, (SUB FOR R161962)
29	R117569	3	Screw	-
30	T12847	3	Lock Nut	4.826 mm (0.190")
31	24H1753	6	Washer	1/4" X 9/16" X 0.049"
32	57M7257	1	Elec. Connector Housing	-
33	57M7686	1	Electrical Connector Assy	-
34	12M7084	1	Lock Washer	4.300 mm
35	CB01441436	1	Stud	-
36	22H841	2	Set Screw	1/4" X 1/4", (SUB FOR 0610041266)
37	R78055	4	Electrical Connector Assy	-
38	RE12365	2	Electrical Connector Assy	-
39	R78054	2	Electrical Connector Assy	-
40	57M7896	12	Electrical Connector Assy	-
41	RE12364	2	Electrical Connector Assy	-
42	CB01436739	1	Label	-
43	CB01436125	1	Label	-
44	CB01419684	1	Label	-
45	CB01419685	1	Label	-
46	CB01419687	1	Label	-
47	AT124557	3	Hose Clamp	-
48	37H84	2	Screw	-
49	CB01436494	1	Label	-
50	CB11440219	1	Cab Wiring Harness	INCL KEY 41
51	H129367	1	Stud	-
