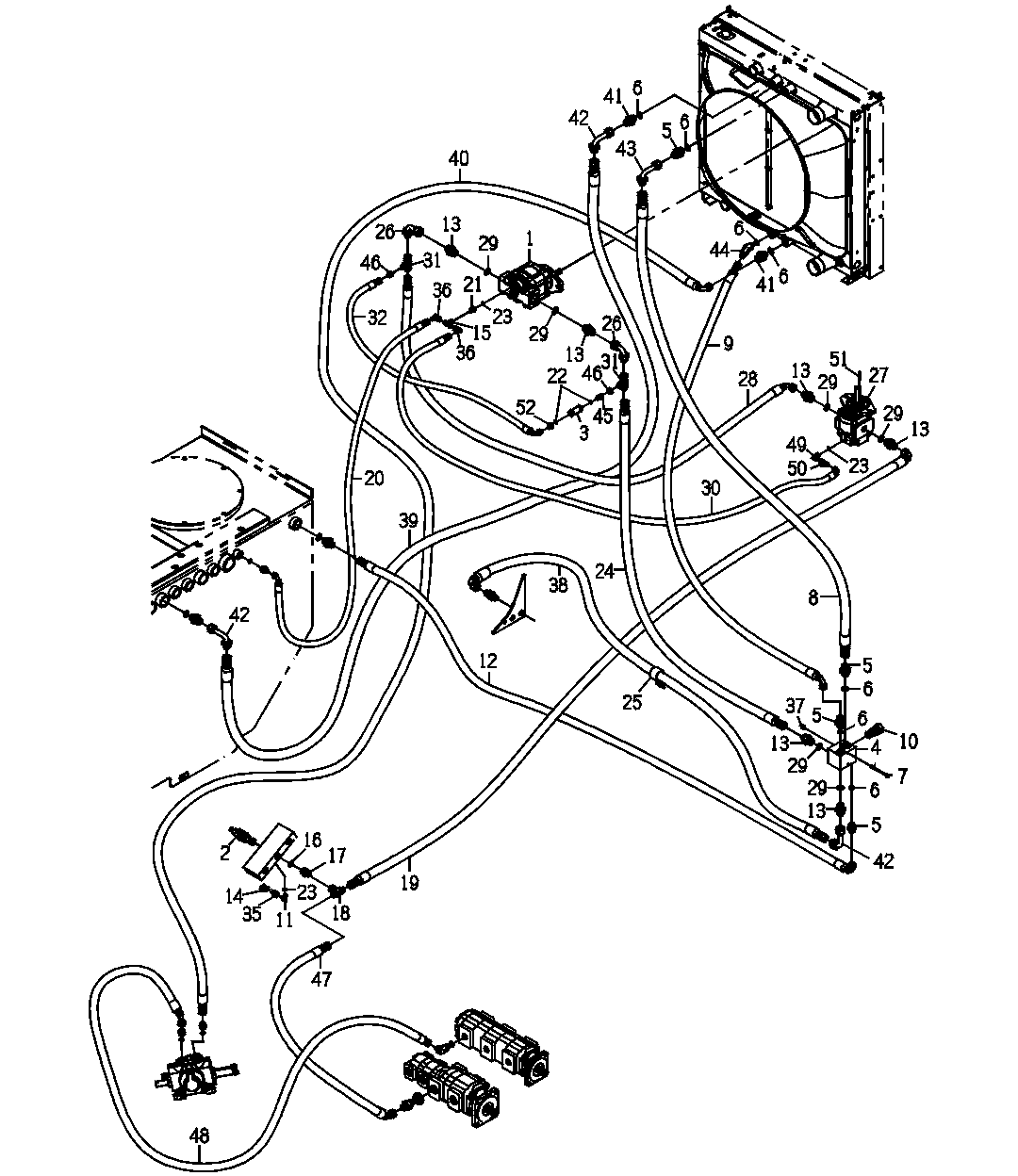

Lines Cooling Package Fan - Pump To Motor

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CB11441527	1	Hydraulic Motor	-
2	CB01462657	1	Hyd Actuated Control Valve	-
3	0071341490	2	Flange	-
4	CB11435125	1	Manifold	INCL KEY 10
5	0070005759	4	Adapter Fitting	INCL KEY 6
6	U13639	7	O-Ring	-
7	CB01425870	2	Cap Screw	-
8	0881392769	1	Hydraulic Hose	-
9	CB11465115	1	Hydraulic Hose	-
10	CB01441377	1	Check Valve	-
11	X6C5OX-S	1	Elbow Fitting	-
12	0881379902	1	Hydraulic Hose	-
13	X16F50X-S	4	Fitting	(SUB FOR 0071341074) INCL KEY 29
14	AT205083	1	Cap	-
15	0071347729	1	Tee Fitting	-
16	U12547	1	O-Ring	-
17	0070033020	1	Adapter Fitting	INCL KEY 16
18	0071342068	1	Tee Fitting	-
19	0881344018	1	Hydraulic Hose	-
20	0881341509	1	Hydraulic Hose	-
21	X8-6F5OX-S	1	Adapter Fitting	-
22	R27237	2	Fitting	-
23	R26448	3	O-Ring	-
24	CB11462301	1	Hydraulic Hose	-
25	03H1439	2	Bolt	1/2" X 1-3/4"
26	0070029691	2	Flange Fitting	-
27	CB11453458	1	Motor	-
28	CB11462315	1	Hydraulic Hose	-
29	R29936	4	O-Ring	-
30	CB11462396	1	Hydraulic Hose	-
31	X16R6X-S	2	Tee Fitting	-
32	0881347664	1	Hydraulic Hose	-
33	T35860	2	Washer	-
34	BP12214	2	Lock Nut	-
35	XPD36BTX	1	Diagnostic Coupling	-
36	AH75164	2	Elbow Fitting	(SUB FOR 0070032935)
37	T16464	2	Lock Nut	-
38	CB11460525	1	Hydraulic Hose	-
39	CB11465099	1	Hydraulic Hose	-
40	CB11465109	1	Hydraulic Hose	-
41	0070006572	2	Adapter Fitting	INCL KEY 6
42	0071342104	3	Elbow Fitting	-
43	0071344317	1	Elbow Fitting	-
44	0071341467	1	Elbow Fitting	-
45	AN280978	1	Adapter Fitting	-
46	0071342275	1	Adapter Fitting	-
47	CB11437868	1	Hydraulic Hose	-
48	CB11436860	1	Hydraulic Hose	-
49	AW22821	1	Elbow Fitting	-
50	AN33434	1	Tee Fitting	(SUB FOR CB01510015)
51	CB01447210	1	Shaft Key	-
52	R27237	1	Fitting	-

Lines Cooling Package Fan - Pump To Motor

Нет текстового описания
