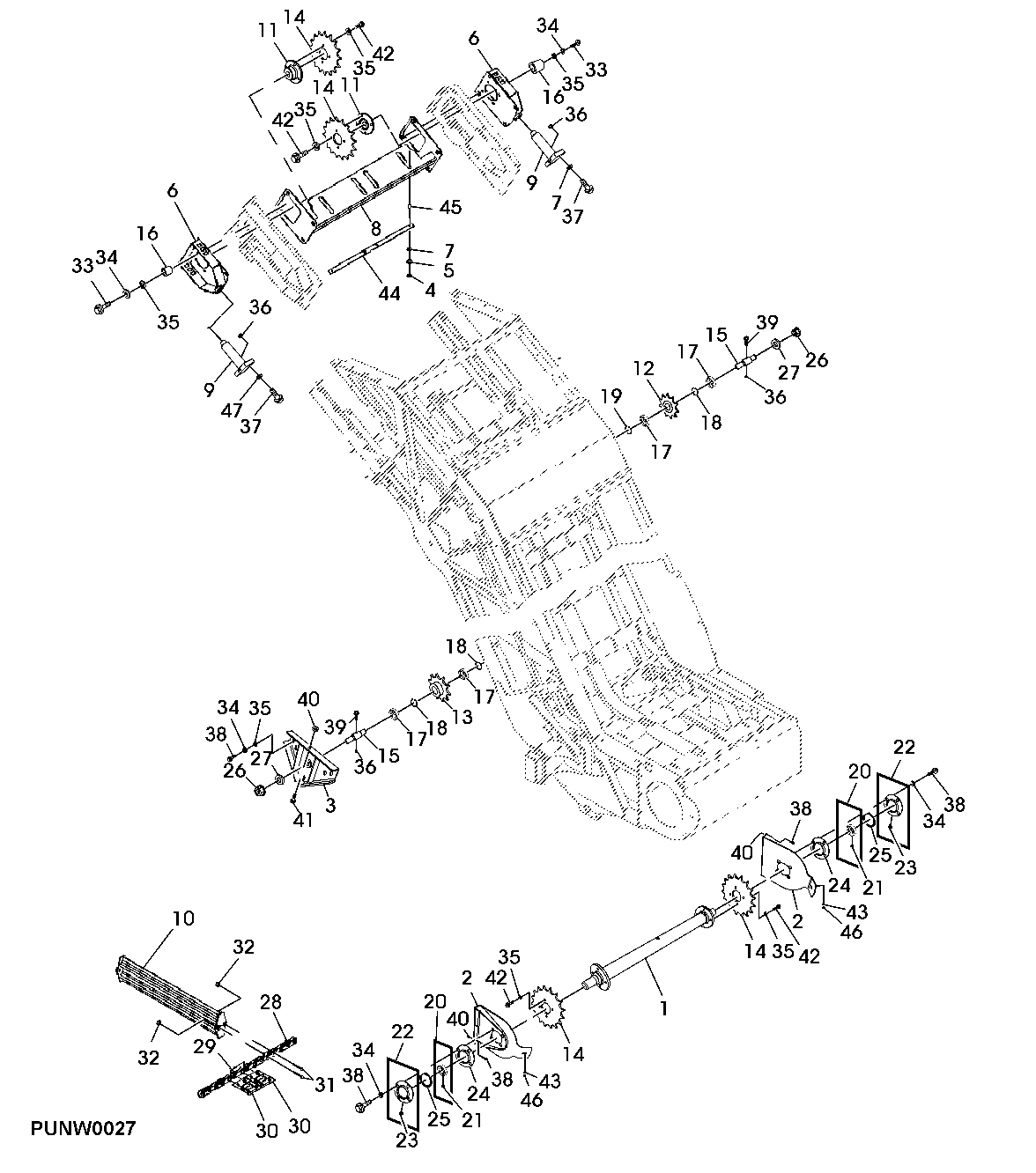

Elevator - Drive (Sprockets Chains And Slats)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CB11452756	1	Shaft	-
2	CB11424062	2	Adjuster	-
3	CB11424359	4	Adjuster	-
4	12H304	6	Lock Washer	3/8"
5	T54568	4	Lock Nut	-
6	CB11474082	2	Adjuster	-
7	24H1219	8	Washer	7/16" X 1" X 0.083"
8	CB11462481	1	Support	-
9	CB11465027	2	Hydraulic Cylinder	-
10	CB11464244	23	Slat	-
11	CB01471077	2	Hub	-
12	CB11414708	6	Chain Sprocket	-
13	CB11421303	2	Chain Sprocket	-
14	CXT18155	4	Drive Sprocket	SUB FOR 0290248605
15	CB01424053	8	Spindle	-
16	CB01474508	8	Spacer	-
17	F40206SS	16	Ball Bearing	-
18	M70619	8	Snap Ring	-
19	L1188N	8	Snap Ring	(SUB FOR 0700047863)
20	0121378786	2	Bearing	INCL KEY 21
21	CB01439167	4	Bolt	-
22	AA20226	2	Pressed Flanged Housing	INCL KEY 23
23	0370021492	2	Lubrication Fitting	-
24	E39751	2	Pressed Flanged Housing	-
25	U10776	2	O-Ring	-
26	M150959	8	Lock Nut	-
27	24H1197	8	Washer	1-1/16" X 2-1/2" X 0.164"
28	CB01433201	2	Chain Link	-
29	0211325706	2	Link	-
30	CB11407067	4	Roller Chain	-
31	0051377934	92	Bolt	-
32	N190216	92	Lock Nut	(SUB FOR 0051379027)
33	19H2993	8	Cap Screw	1/2" X 1-1/2"
34	12H301	28	Lock Washer	1/2"
35	T35860	36	Washer	-
36	T11234	12	Lock Nut	-
37	19H2633	4	Cap Screw	3/8" X 1-1/2"
38	19H2898	26	Cap Screw	1/2" X 1-1/4"
39	19H2732	8	Cap Screw	3/8" X 2-3/4"
40	BP12214	10	Lock Nut	-
41	19H1991	2	Cap Screw	1/2" X 8"
42	19H2472	16	Cap Screw	1/2" X 1"
43	19H2668	2	Cap Screw	1/2" X 3-1/2"
44	CB01430513	1	Retainer	-
45	CB01397933	4	Spacer	-
46	19H1648	2	Cap Screw	3/8" X 3/4"
47	24M7178	2	Washer	10.500 X 30 X 2.500 mm
