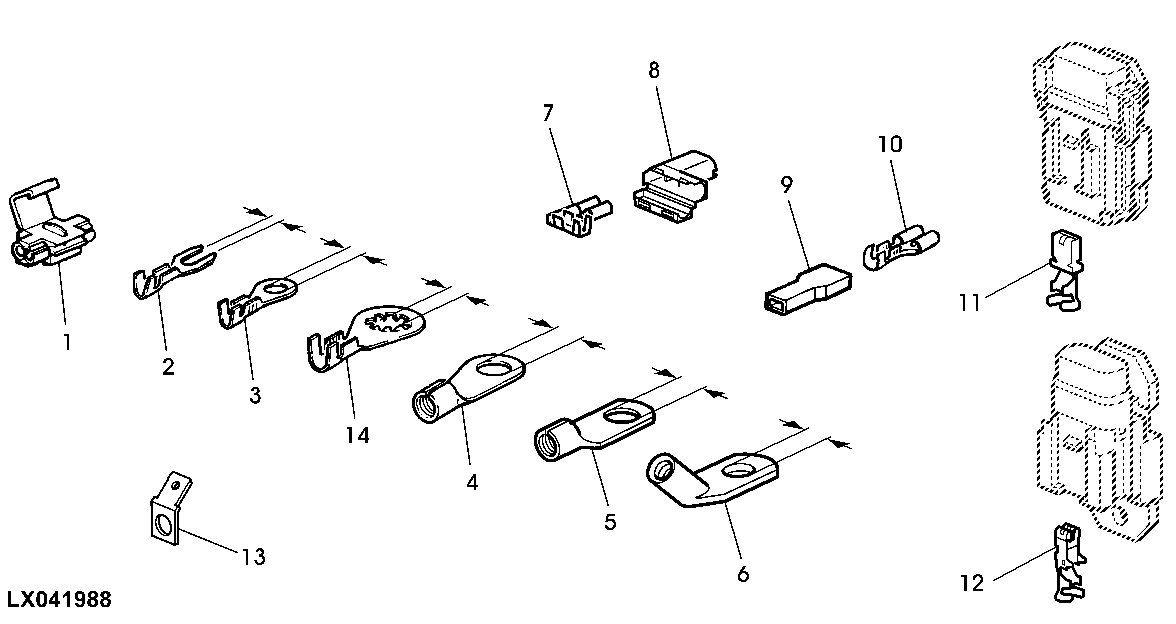

CONNECTORS AND WIRE PINS

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7201	1	Electrical Connector Assy	(WIRE GAUGE / CONNECTOR WIDTH) -2.5MM² /2.5MM
1	57M7095	1	Electrical Connector Assy	(WIRE GAUGE / CONNECTOR WIDTH) -1.5MM² /1.5MM
2	57M7054	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 1-2.5MM² /5.3MM
3	57M7052	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 0.5-1MM² /5.3MM
3	57M7079	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 0.5-1MM² /8.4MM
3	57M7348	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 1-2.5MM² /8.4MM
4	57M7175	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 10-16MM² /8.4MM
4	57M7207	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 16-25MM² /8.4MM
4	57M7360	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 16-25MM² /13.0MM
4	57M7176	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 16-25MM² /10.5MM
5	57M7847	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) -10MM² /6.5MM
5	57M7848	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) -10MM² /8.5MM
6	57M7924	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) -10MM² /8.5MM
7	57M8024	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 1-2.5MM² /6.3MM
8	57M7984	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 6.3MM
9	57M7210	1	Elec. Connector Accessory	(WIRE GAUGE / CONNECTOR WIDTH) 6.3MM
10	57M7044	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 0.5-1MM² /6.3MM
11	57M8186	2	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 8-10MM² /8MM
12	57M8057	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 1-1.5MM² /4.8MM
13	57M7116	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 6.3MM
14	57M7110	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 1.5-2.5MM² /6.5MM
