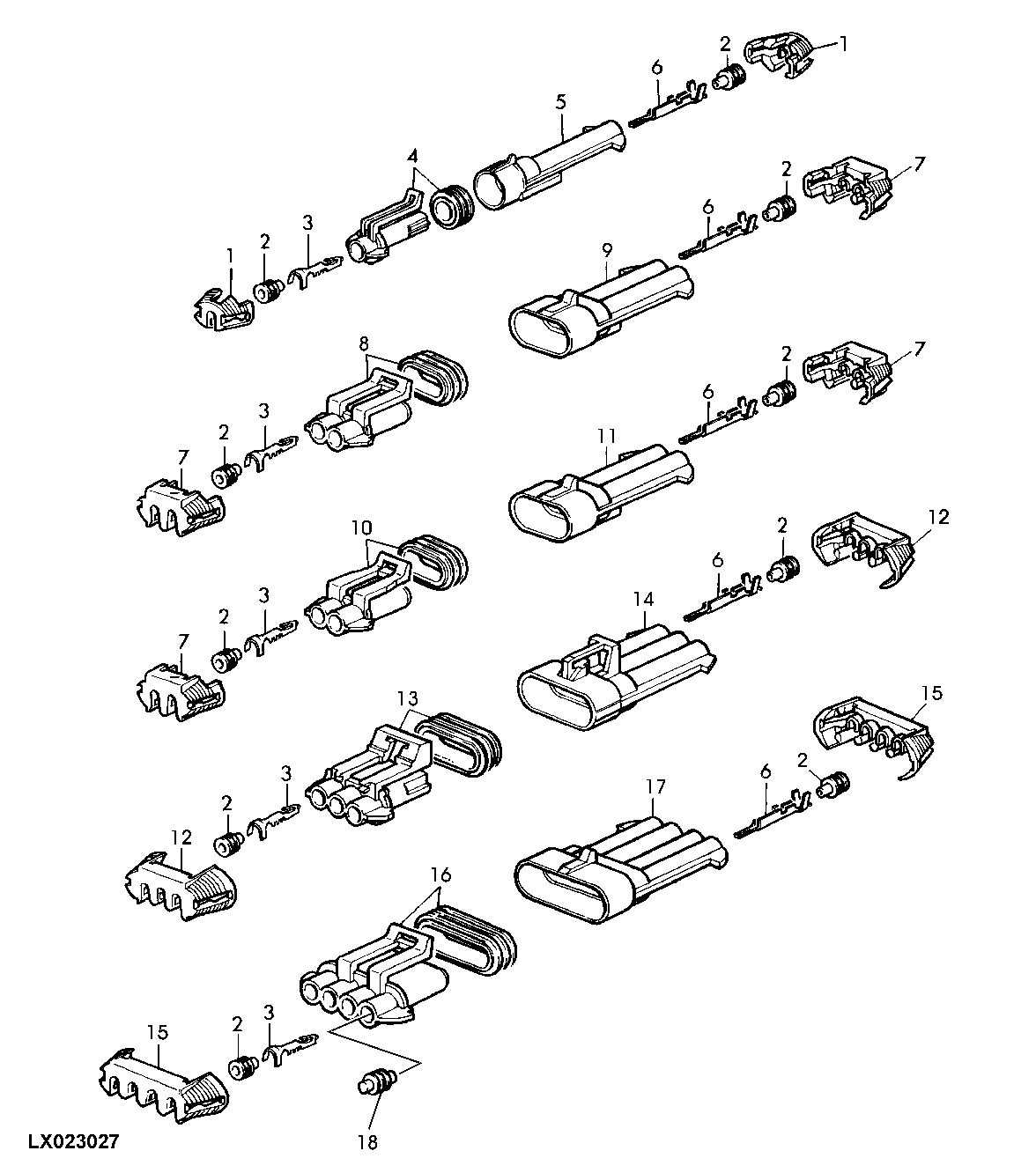

CONNECTORS 1-4-TERMINAL (METRI PACK)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7315	1	Elec. Connector Accessory	-
2	57M9214	1	Elec. Connector Seal	(Blue) SUB FOR 57M7377
2	57M7258	1	Elec. Connector Seal	(Red)
2	57M7493	1	Elec. Connector Seal	(White)
3	R104846	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 0.5-1MM² /1.5MM
4	57M7266	1	Elec. Connector Housing	-
5	57M7267	1	Elec. Connector Housing	-
6	57M7252	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 0.5-1MM² /1.5MM, ORDER R104919
6	R104919	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH)
7	57M7289	1	Elec.Connect Locking Device	-
8	57M7254	1	Elec. Connector Housing	(Black)
9	57M7256	1	Elec. Connector Housing	(Black)
10	57M7328	1	Elec. Connector Housing	(Gray)
11	57M7985	1	Electrical Connector Assy	(Gray) SUB FOR 57M7365
12	57M7317	1	Elec. Connector Accessory	-
12	57M9702	1	Elec. Connector Accessory	(Black)
13	57M7255	1	Elec. Connector Housing	(WIRE GAUGE / CONNECTOR WIDTH)
14	57M7257	1	Elec. Connector Housing	(WIRE GAUGE / CONNECTOR WIDTH)
15	57M7318	1	Elec. Connector Accessory	-
16	57M7247	1	Elec. Connector Housing	-
17	57M7244	1	Elec. Connector Housing	-
18	57M7259	1	Elec. Connector Seal	-

CONNECTORS 1-4-TERMINAL (METRI PACK)
