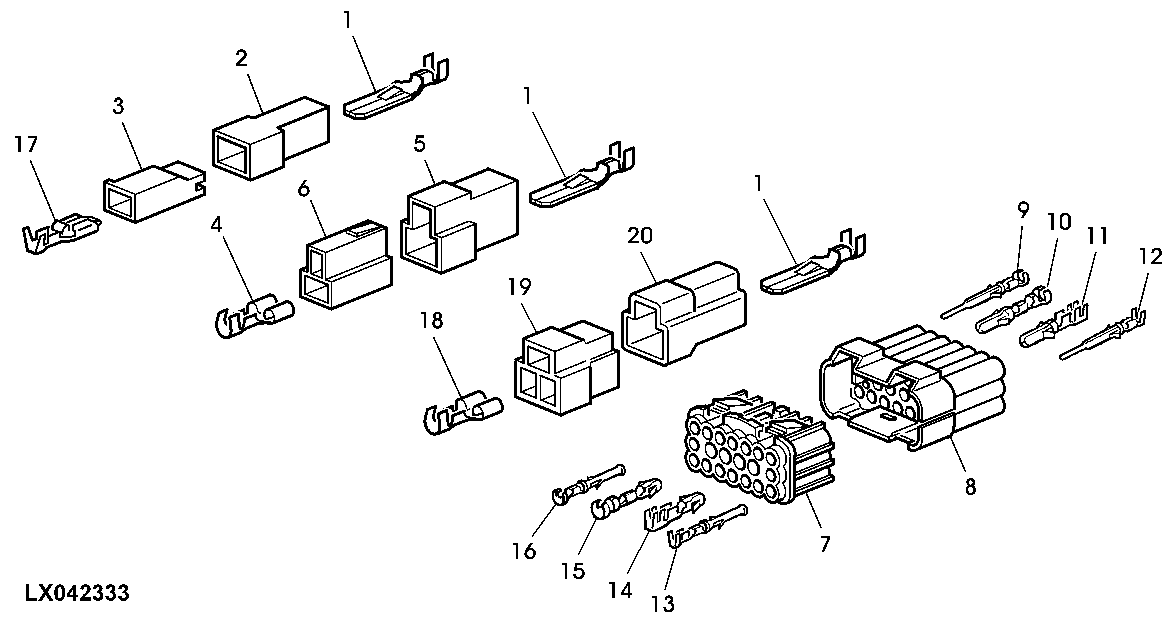

CONNECTOR (1-, 2-, 3- OR 20-TERMINAL)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7189	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) 4-6MM² /6.3MM
1	57M7039	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) 1-2.5MM² /6.3MM
2	57M7068	1	Elec. Connector Housing	-
3	57M7170	1	Elec. Connector Housing	(WIRE GAUGE/CONNECTOR WIDTH) 6.3MM
4	57M7430	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) 0.5-1.5MM² /6.3MM
5	57M7066	1	Elec. Connector Housing	-
6	57M7065	1	Elec. Connector Housing	-
7	57M7323	1	Elec. Connector Housing	-
8	57M7324	1	Elec. Connector Housing	-
9	57M7331	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) 0.5 -1MM² /1.6MM
10	L36670	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) 1-2.5MM² /3.5MM
11	L35423	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) 2-4MM²/ 3.5MM
12	L35425	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) 1-2.5MM² /1.6MM
13	L35424	1	Electrical Connector Assy	(WIRE GAUGE/CONNECTOR WIDTH) 1-2.5MM² /1.6MM
14	L36681	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) 2-4MM² /3.5MM
15	L36685	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) 1-2.5MM² /3.5MM
16	57M7161	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) 0.5-1MM² /1.6MM
17	57M7089	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) 0.5-1.5MM² /6.3MM
18	57M7103	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) 0.5-1.5MM² /6.3MM
18	57M7041	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) 1-2.5MM² /6.3MM
19	57M7088	1	Elec. Connector Housing	-
20	57M7092	1	Elec. Connector Housing	-

CONNECTOR (1-, 2-, 3- OR 20-TERMINAL)
