SELECTIVE CONTROL VALVE, CONTROL LINKAGE (2001 SERIES)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL76483	1	Support	-
2	AL80141	1	Lever	(WITH 1ST CONTROL VALVE) (ORD AL113510)
3	L110766	1	Bushing	-
4	AL80142	1	Lever	(WITH 2ND CONTROL VALVE) (ORD AL113512)
5	AL172937	1	Push Pull Cable	(SUB FOR AL110014, AL164813)
6	L101931	1	Spacer	-
7	24M7180	1	Washer	13 X 37 X 3 mm
8	14M7168	1	Lock Nut	M12
9	19M7139	1	Cap Screw	M8 X 20
10	24M7055	1	Washer	8.400 X 16 X 1.600 mm
11	14M7273	1	Nut	M8
12	L77747	1	Knob	-
13	M113899	1	Insert	-
14	AL79051	1	Pin Fastener	(SUB FOR 45M7080)
15	L219493	1	Snap Ring	SUB FOR L79076
16	99M7011	1	Plug	-
17	L76801	1	Grommet	(SUB FOR L76711)
18	14M7272	1	Nut	M6
19	L80052	1	Yoke	-
20	AL80143	1	Lever	(WITH 3RD CONTROL VALVE) (ORD AL113514)
21	L32394	2	Cap	-
22	L110296	1	O-Ring	-
23	14M7166	1	Lock Nut	M8
24	AL173418	1	Quadrant	(SUB FOR AL113515)
25	AL173416	1	Lever	(WITH 3RD CONTROL VALVE) (SUB FOR AL113514)
26	AL173415	1	Lever	(WITH 2ND CONTROL VALVE) (SUB FOR AL113512)
27	AL173414	1	Lever	(WITH 1ST CONTROL VALVE) (SUB FOR AL113510)
28	L113527	1	Screw	-
29	12M7075	1	Washer	5.300 X 11 X 0.500 mm
30	24M7027	1	Washer	5.300 X 10 X 1 mm
31	14M7360	1	Lock Nut	M5
32	AL173417	1	Quadrant	(SUB FOR AL113513)

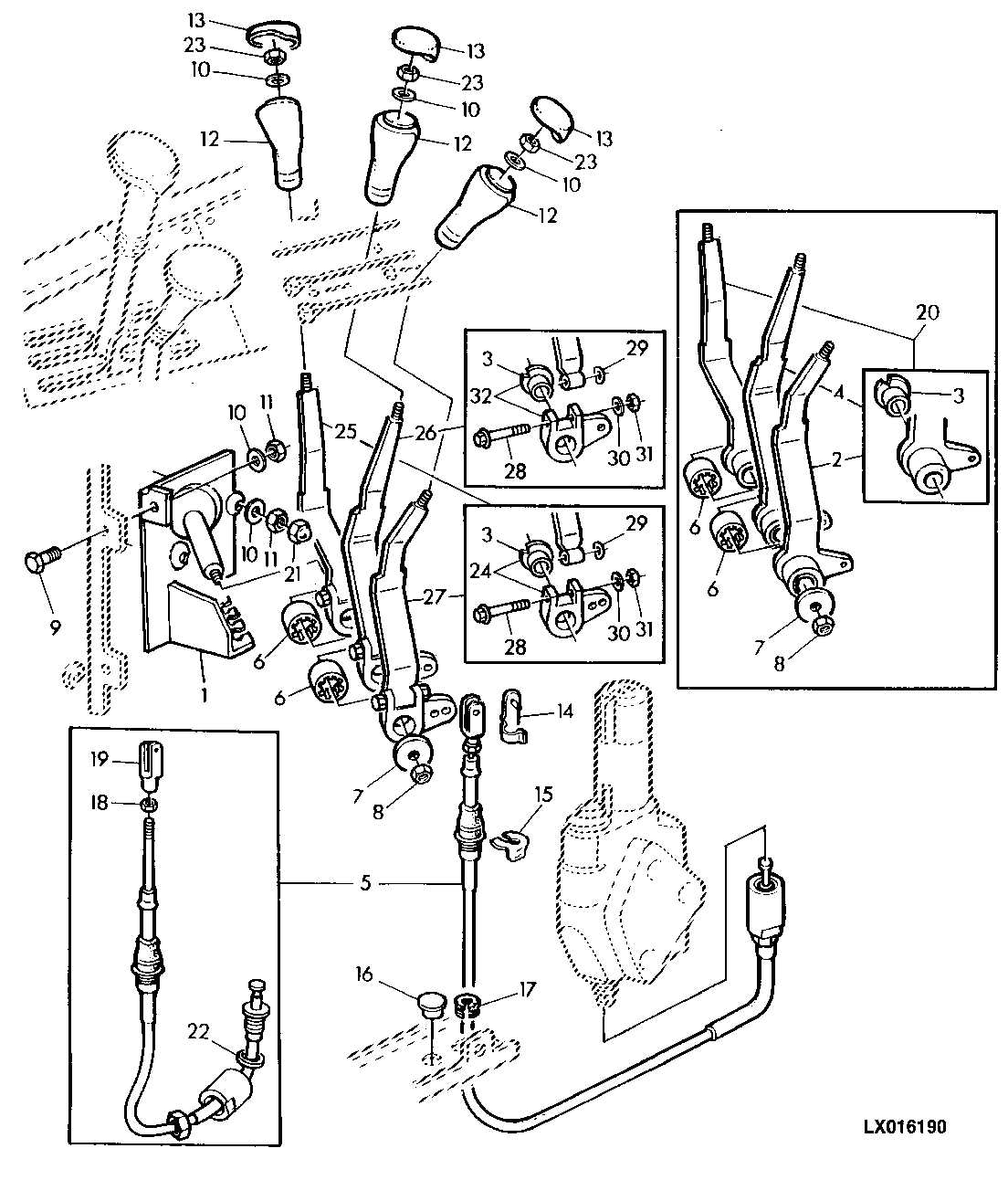

SELECTIVE CONTROL VALVE, CONTROL LINKAGE (2001 SERIES)
