HANDLE, STARTER CONTROL, SHIFT LINKAGE, GRASS COLLECTOR

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SA17778	1	Insert	-
2	SA17777	1	Knob	-
2	SA32638	1	Spring Pin	3X12
2	SA32636	1	Knob	-
3	SA15205	2	Washer	A10, 5
4	SA15253	1	Spring Washer	B10
5	SA15694	1	Lock Nut	M10
6	SA16469	1	Console	-
7	14M7327	1	Lock Nut	(ONLY AVAILABLE AS PACKAGED SETS) M8, (SUB FOR SA11998)
8	SA16714	2	Snap Ring	6
9	SA15203	3	Washer	(ONLY AVAILABLE AS PACKAGED SETS) A8, 4
10	SA16713	2	Strap	-
11	SA16715	1	Roller	-
12	SA15336	1	Cap Screw	M8X40
13	SA33274	1	Hose Guard	-
14	SAA16716	2	Bar	-
15	SA16476	1	Bracket	-
16	19M7077	2	Cap Screw	M6 X 20, (SUB FOR SA15323)
17	SA15202	2	Washer	6, 4
18	SA11244	1	Lock Nut	(ONLY AVAILABLE AS PACKAGED SETS) M6
19	SA15400	1	Wing Nut	-
20	SAA16482	1	Guide	LOW
21	SA17774	2	Retainer	-
22	SA18298	2	Bolt	B 4, 2X 9, 5
23	SA16483	4	Bolt	KB 70X22
23	SA30473	4	Bolt	K 70X18
24	SA15632	2	Bolt	M6X45
25	SA11243	4	Washer	-
26	SA31121	2	Wing Nut	(ONLY AVAILABLE AS PACKAGED SETS)
27	SA15893	2	Cap	-
28	SAA35024	1	Handlebar	UP (SUB FOR SA16461)
29	SA16912	1	Handle	(SUB SA34459, SA11243, SA11244)
30	SA16267	1	Bolt	(ONLY AVAILABLE AS PACKAGED SETS) 4, 2X13, (FOR SA16912)
31	SA16474	1	Housing	LH
32	SA16473	1	Housing	RH
33	SA16475	1	Lever	-
34	SA32572	1	Pin Fastener	-
35	SA16268	3	Bolt	4, 2X32
36	SA12571	1	Control	(ENGINE WITH TWO STARTING LEVERS)
36	SA33156	1	Control	(ENGINE WITH ONE STARTING LEVER)
37	SAU14024	1	Lever	SUB FOR SA12768
38	SA15551	1	Screw	M6X20
39	SA11244	3	Lock Nut	(ONLY AVAILABLE AS PACKAGED SETS) M6
40	SA15325	2	Cap Screw	M6X30
41	SA12572	1	Push Pull Cable	-
41	SA12572	1	Push Pull Cable	(SUB FOR SA33155)
42	RA1000652	1	Tie Band	(SUB SA34258) (SUB FOR SA12505)
43	SAA16583	1	Frame	-
44	SA16564	1	Grass Catcher	-

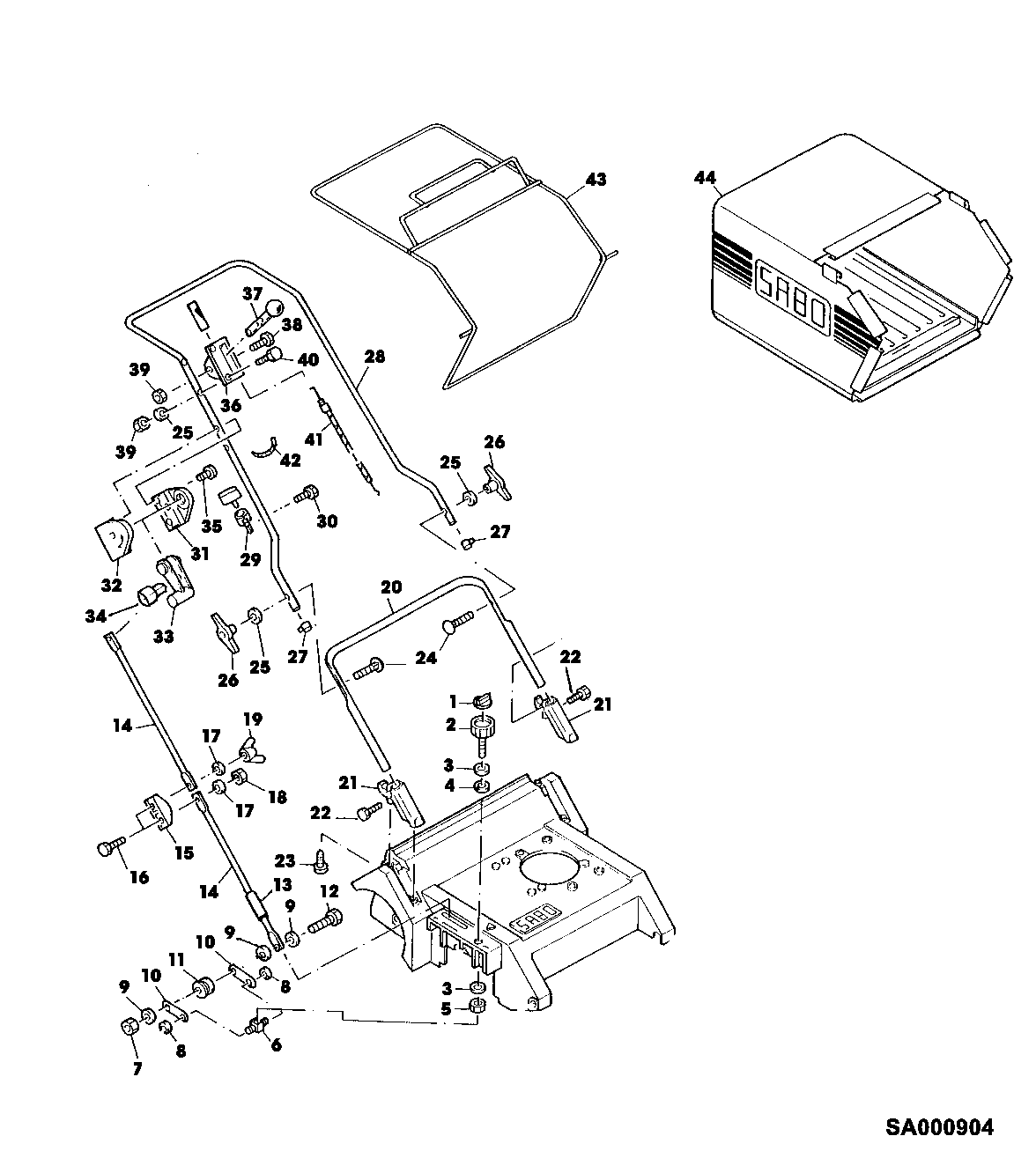

HANDLE, STARTER CONTROL, SHIFT LINKAGE, GRASS COLLECTOR

Нет текстового описания
