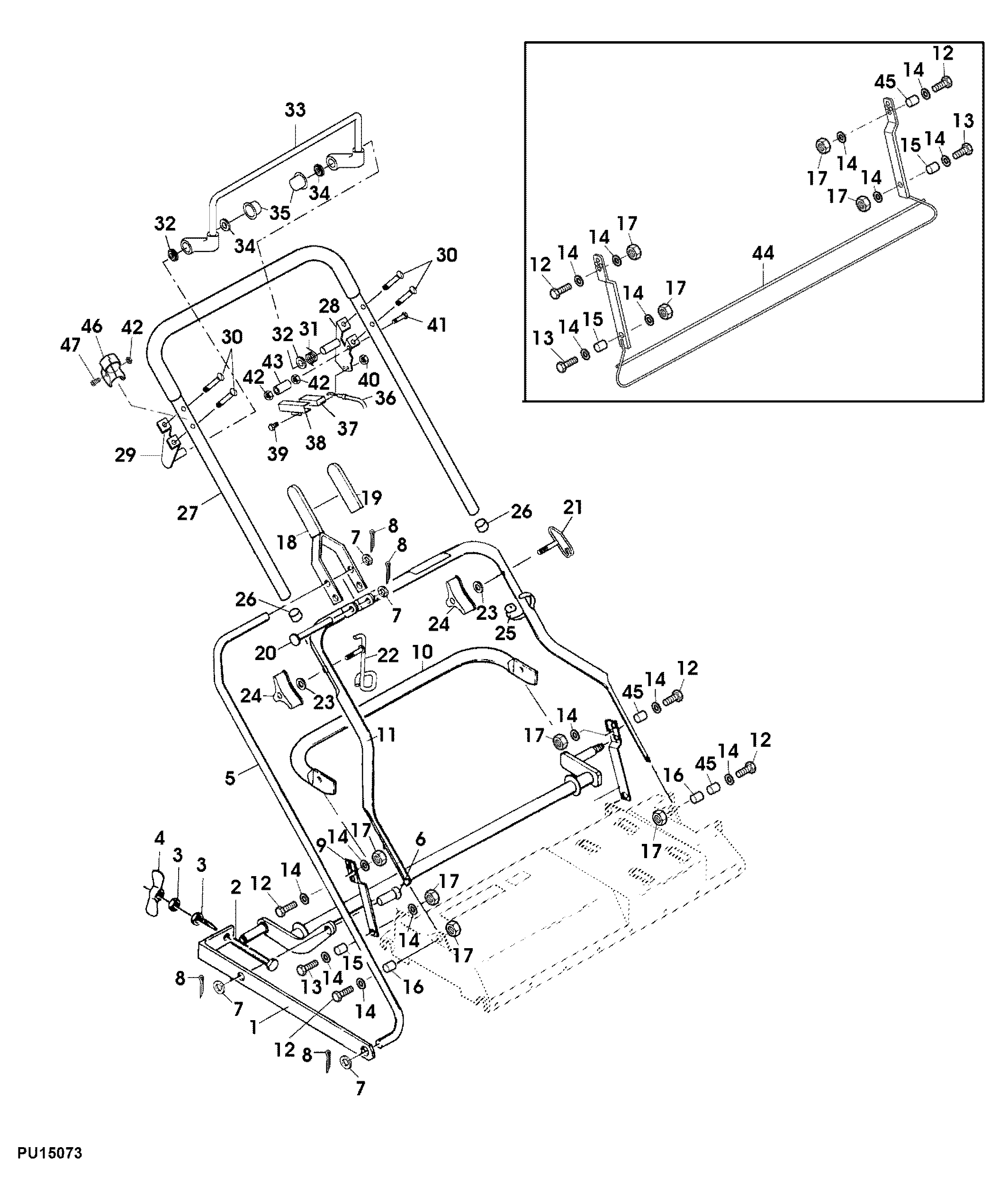

Guide, Starting Motor and Shift Linkage

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SAA18804	1	Tie Bar	-
2	SA15338	1	Cap Screw	M8 X 55
3	SA15413	2	Nut	M8
4	SA15401	1	Wing Nut	M8
5	SAA18819	1	Bar	-
5	SAU14198	1	Bar	-
6	45M7111	1	Pin Fastener	10 X 22 mm
7	24M7028	4	Washer	10.500 X 20 X 2 mm, A10, 5
8	11M7015	4	Cotter Pin	3.200 X 25 mm
9	SA12233	2	Holder	-
10	SA32003	1	Bail	-
11	SAA36223	1	Guide	Low
12	SA15331	4	Cap Screw	M8 X 20
12	SA15334	2	Cap Screw	M8 X 30, LH
12	SA15331	2	Cap Screw	M8 X 20, RH
13	SA15332	2	Cap Screw	M8 X 25
14	SA15203	10	Washer	(Only Available as Packaged Sets) A8, 4
15	SA12532	2	Sleeve	-
16	SA16725	2	Spacer	-
17	14M7327	6	Lock Nut	(Only Available as Packaged Sets) M8
18	SA18817	1	Lever	-
19	SAU10904	1	Grip	SUB FOR SA18846
20	45M7040	1	Pin Fastener	10 X 60 mm
21	SA35200	1	Guide	M8
21	SAU12743	1	Guide	M8
21	SAU14263	1	Bolt	M8 X 50
22	SAU14263	1	Bolt	M8 X 50
22	SAU12743	1	Guide	-
22	SA36300	1	Guide	-
23	SA30444	2	Disk	-
24	SA29799	2	Nut	M8
25	RA1000652	2	Tie Band	SUB FOR SA12505
26	SA34255	2	Plug	-
27	SAA36224	1	Handlebar	Up
28	SA36252	1	Retainer	LH
29	SA35611	1	Retainer	RH
30	SA15535	4	Screw	M6 X 30
31	SA36251	1	Torsion Spring	-
32	SA36138	2	Disk	10/18/1
33	SAA12421	1	Bail	(For Engine Brake) SUB FOR SAA35982
34	SAU14929	2	Bushing	10 X 20 X 15, SUB FOR SA35997; POM
35	SA35203	2	Clip	D10
36	SA36254	1	Engine Power WRG Harness	(For Engine Brake)
37	SA35540	1	Switch	-
38	SA36253	1	Cover	-
39	19M7372	2	Cap Screw	M5 X 16
40	14M7360	2	Lock Nut	M5
41	SA15325	1	Cap Screw	M6 X 30
42	SA11244	3	Lock Nut	(Only Available as Packaged Sets) M6
43	-	1	Part 50	-
44	SAA13891	1	Bail	-
45	SAU10440	2	Bushing	8.5 X 14 X 6.5
46	SAA11367	1	Guide	-
47	SA15598	1	Screw	6 X 12 - 8.8, ORDER 19M8618

Guide, Starting Motor and Shift Linkage

Нет текстового описания
